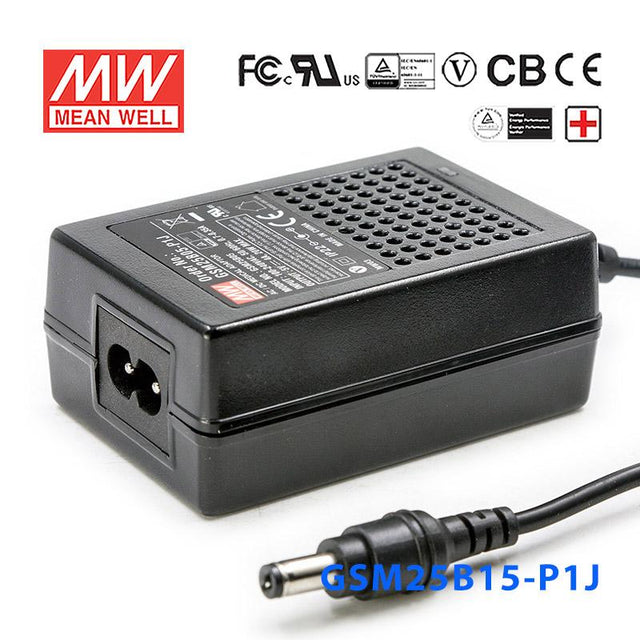

Mean Well GSM25B15-P1J Power Supply 25W 15V
The GSM25B15 is a 25W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating25 Watt
-
Output Voltage15 Volt
-
Rated Current1.66 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
Can I use the GSM25B15-P1J for a 15V industrial control device?
Yes, this is a constant voltage 15V supply rated for 1.66A and 25W. It fits industrial control devices that need a fixed 15V DC source and operate within those output limits.
Is this model suitable for 15V automation or instrumentation modules?
It can be used with automation or instrumentation modules that specify 15V DC input and do not exceed 1.66A or 25W. The constant voltage output is intended for equipment designed around a stable 15V supply.
Can the GSM25B15-P1J power a 15V embedded or test system?
It is appropriate for embedded or test systems that require 15V DC and stay within the unit's 25W maximum output. Its 80-264VAC input also supports use across a broad AC input range.
What load range is this 15V power supply designed to support?
This power supply is sized for 15V loads up to 1.66A, with a maximum output of 25W. A compatible load needs to stay within both the current limit and the total wattage limit.
Can I use this 15V power supply in hot, cold, or outdoor conditions?
The operating temperature range is -25°C to +60°C, so the product is specified for use within that temperature window. No IP rating is listed in the provided data, so outdoor exposure resistance is not established by these specs.
