Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

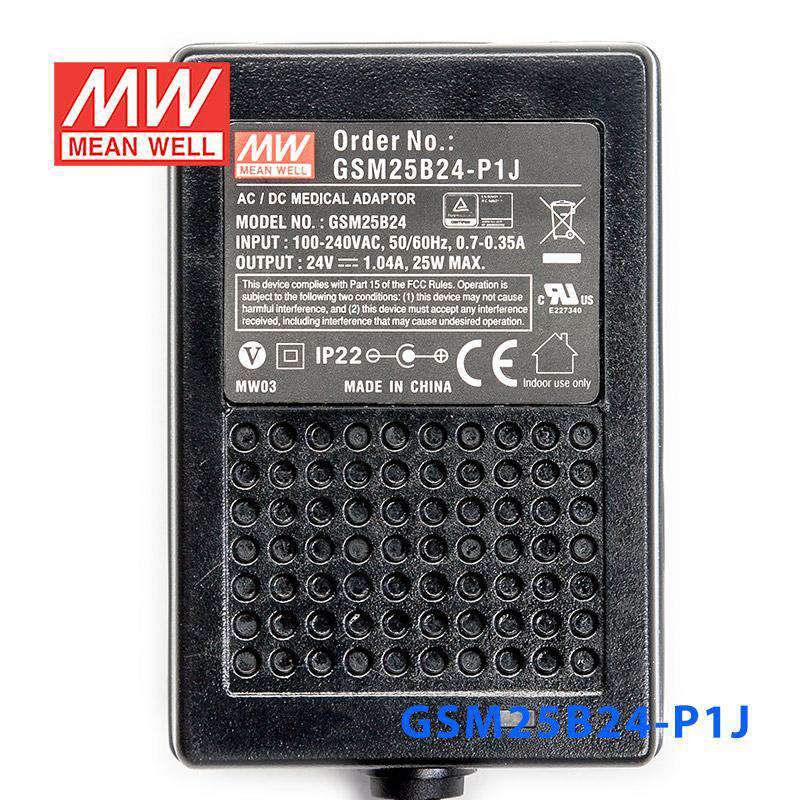

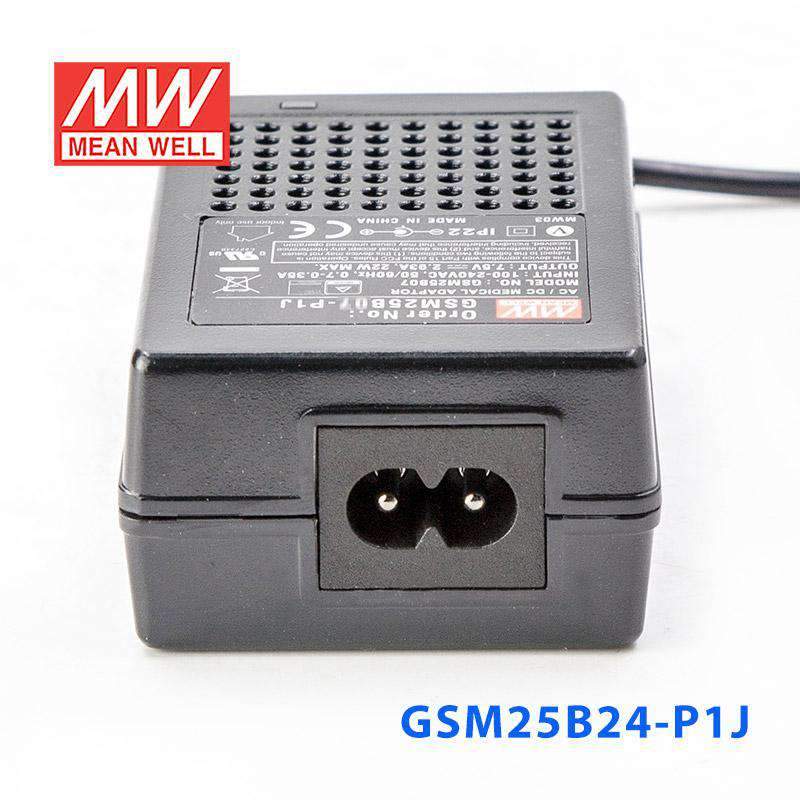

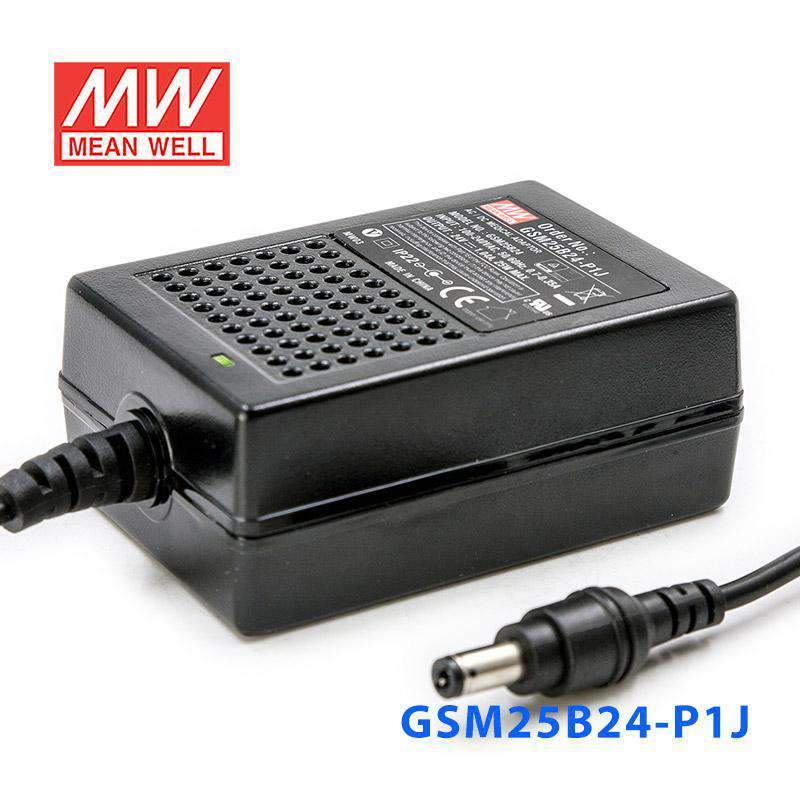

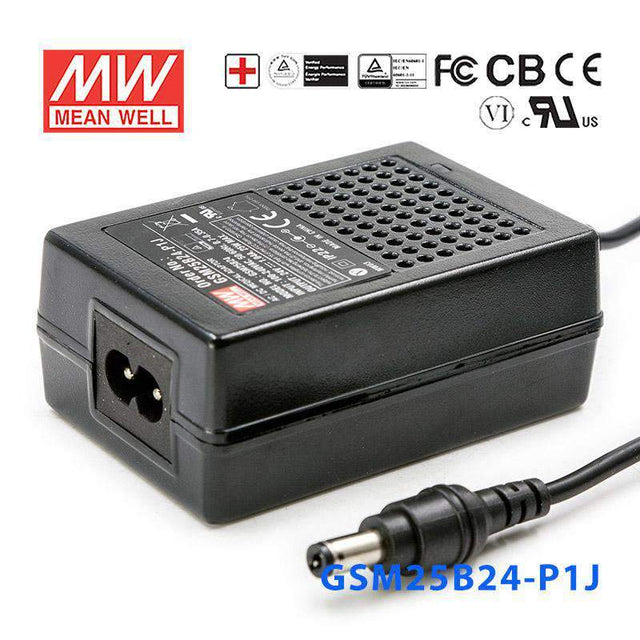

Mean Well GSM25B24-P1J Power Supply 25W 24V
The GSM25B24 is a 25W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating25 Watt
-
Output Voltage24 Volt
-
Rated Current1.04 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
Can I use the GSM25B24-P1J to power a 24V PLC accessory or small automation module?
Yes, this model is designed for constant-voltage 24V output and can supply up to 25W or 1.04A. That makes it appropriate for compact 24V automation modules, PLC accessories, or control devices that stay within those limits.
Is this 24V power supply a good fit for industrial sensors or control electronics?
It can be a good fit for 24V control electronics, sensors, or monitoring devices that need a fixed 24V DC source and do not exceed 1.04A. The 80-264VAC input range also supports use in locations with different AC mains standards.
Can this unit power a compact 24V embedded or communications device?
Yes, if the device is designed for 24V constant-voltage input and its load is within 25W. For higher-power communications or automation hardware, the 1.04A output ceiling may be the limiting factor.
What kind of 24V load size is this model intended for?
This supply is intended for lower-power 24V loads up to 25W total. In current terms, that means the connected equipment should stay at or below 1.04A.
Can I use the GSM25B24-P1J in unheated or warmer equipment areas?
The specified operating range is -25°C to +60°C, so it covers cold indoor spaces and moderately warm equipment environments. The specs provided do not include an IP rating, so exposure to rain, spray, or dust-heavy outdoor conditions is not confirmed here.
