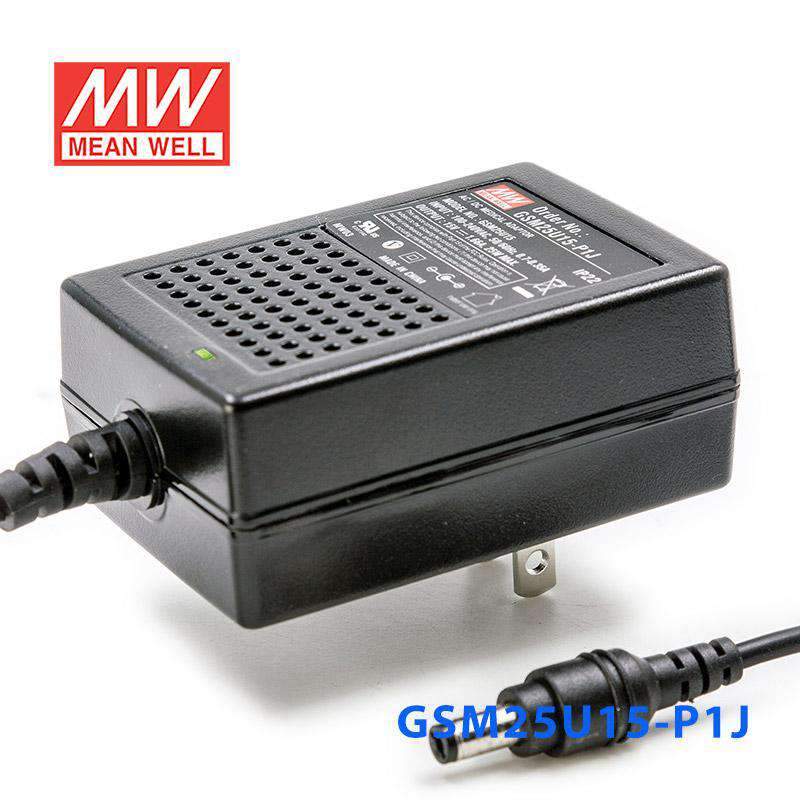

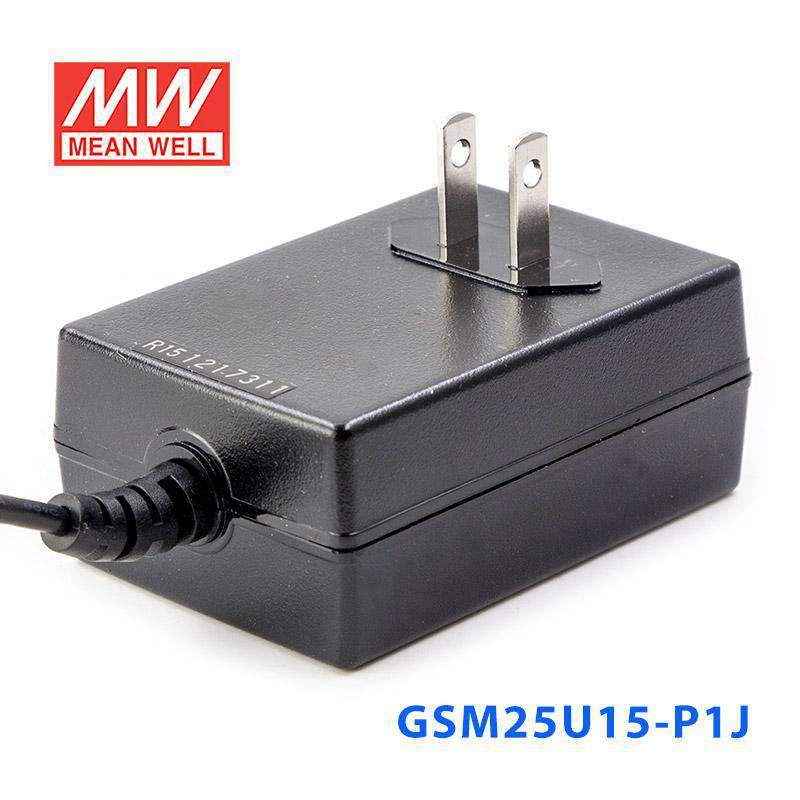

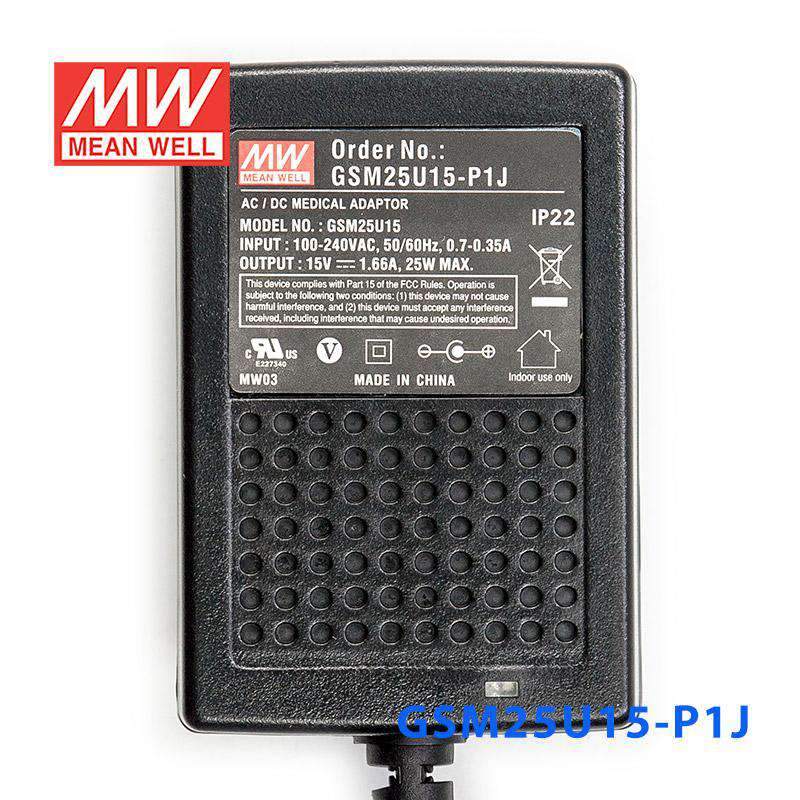

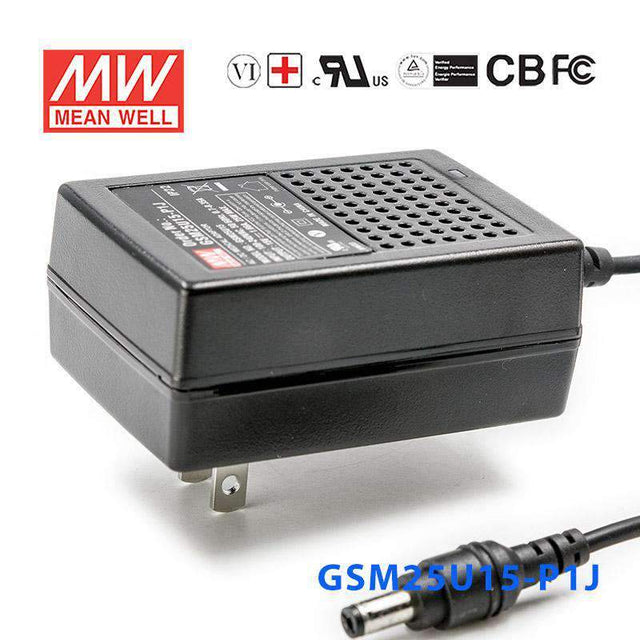

Mean Well GSM25U15-P1J Power Supply 25W 15V
The GSM25U15 is a 25W Mean Well power converter (input range: 80~264VAC, operating temperature: -25~+60℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating25 Watt
-
Output Voltage15 Volt
-
Rated Current1.66 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
Can I use the GSM25U15-P1J for 15V instrumentation or measurement equipment?
Yes, this model provides constant-voltage 15V output up to 1.66A, with a 25W maximum. That makes it appropriate for 15V instrumentation, control, or measurement devices that fall within those electrical limits.
Is the GSM25U15-P1J suitable for industrial transmitters or signal-conditioning modules that need 15V DC?
It can be suitable when the equipment is specified for 15V DC constant-voltage input and does not exceed 1.66A. The supply is intended for lower-power 15V loads rather than equipment with higher power demand.
Can this power supply run a 15V embedded or control module in a panel or cabinet?
Yes, if the module requires 15V constant-voltage input and its total power stays within 25W. The 80-264VAC input range also makes it practical for deployment in different AC supply environments.
What should I check before pairing this with a 15V device?
The key checks are output type, voltage, current, and power. This unit is constant voltage at 15V, with a 1.66A maximum and 25W total capacity, so the connected device needs to fit all of those values.
Is the GSM25U15-P1J rated for outdoor conditions?
The product data gives an operating temperature range of -25°C to +60°C, which covers a wide span for protected operating locations. No IP rating is listed, so the published specs do not confirm resistance to rain, dust, or direct outdoor exposure.
