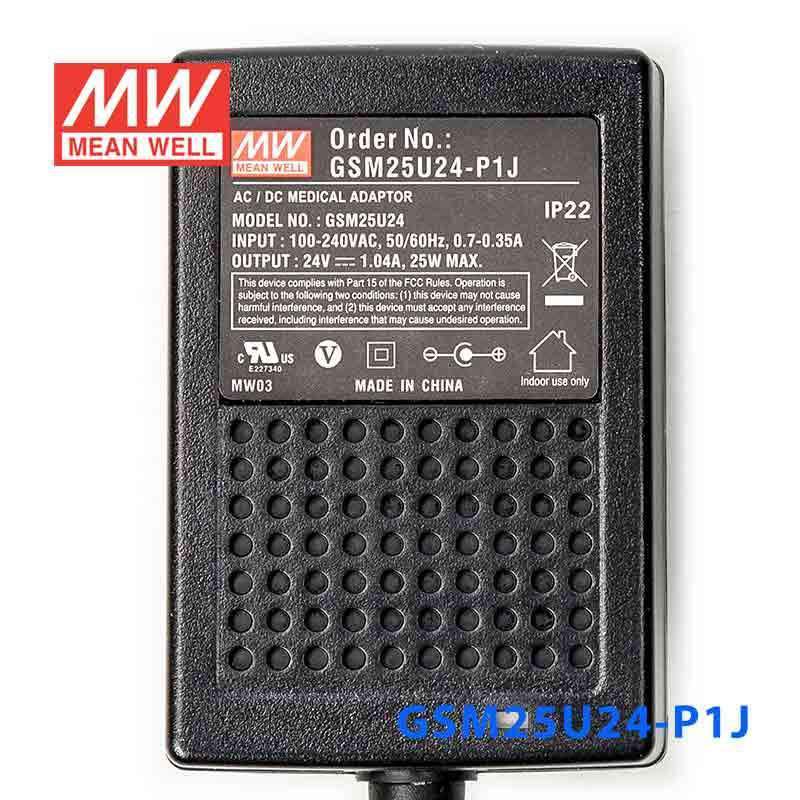

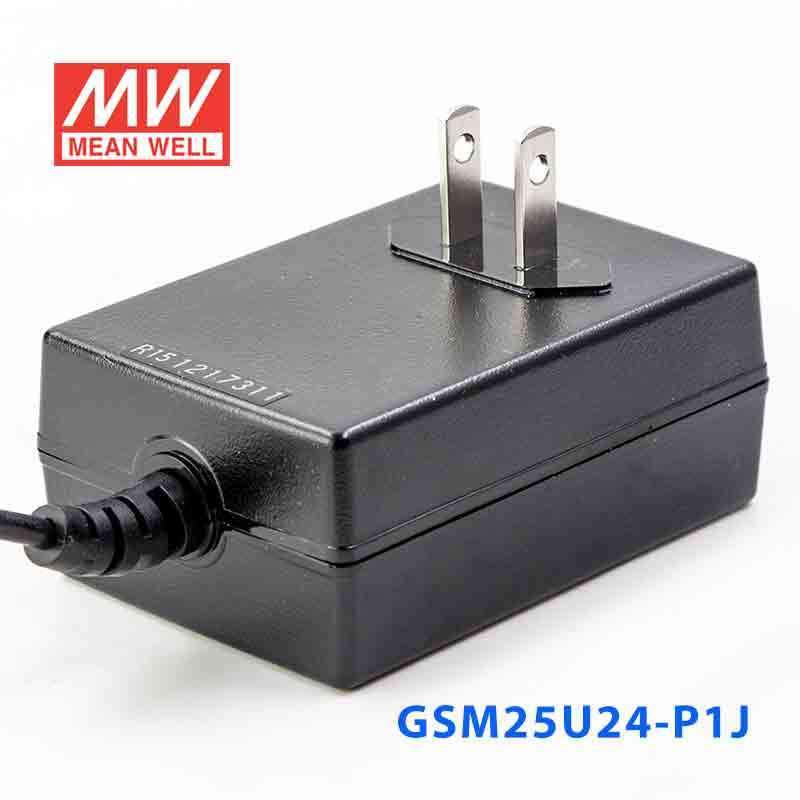

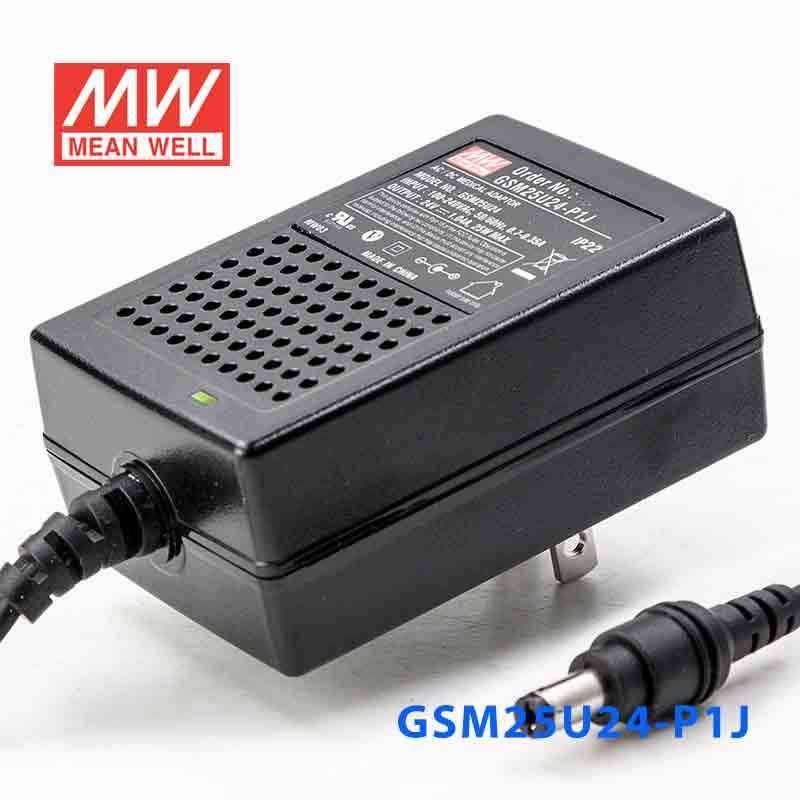

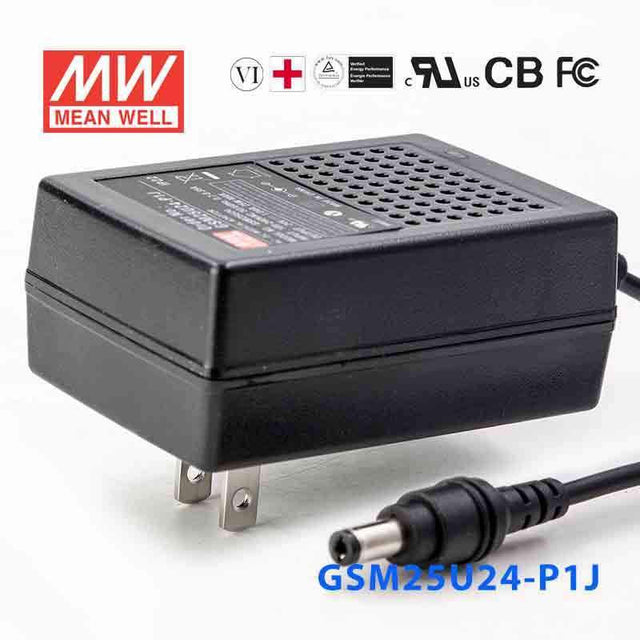

Mean Well GSM25U24-P1J Power Supply 25W 24V
The GSM25U24 is a 25W Mean Well power converter (input range: 80~264VAC, operating temperature: -25~+60℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating25 Watt
-
Output Voltage24 Volt
-
Rated Current1.04 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
Can I use the GSM25U24-P1J for a small 24V PLC accessory or industrial I/O device?
Yes, this supply is a constant-voltage 24V model rated for up to 1.04A and 25W. It is suited to lower-power 24V automation accessories and control modules that stay within those limits.
Is this 24V power supply suitable for sensors, relays, or control components in an automation system?
It can be, provided those components are designed for 24V DC constant-voltage input and their total draw does not exceed 1.04A. The 25W rating makes it a better fit for light-duty 24V loads than for larger field devices.
Can the GSM25U24-P1J power a 24V industrial communication or embedded gateway device?
Yes, if the device is specified for 24V DC input and remains within the available 1.04A and 25W. The wide 80-264VAC input range is also useful for deployment across different mains standards.
How do I size this supply for a 24V load?
Match the load to the supply's constant-voltage 24V output, then confirm the equipment does not require more than 1.04A or 25W. If your 24V device needs more current or power than that, you need a higher-capacity model.
Can I use this 24V adapter in cold or hot industrial spaces?
The specified operating temperature is -25°C to +60°C, so it supports a broad temperature range for protected environments. Because no IP rating is provided, the listed specs do not establish outdoor or wet-location suitability.
