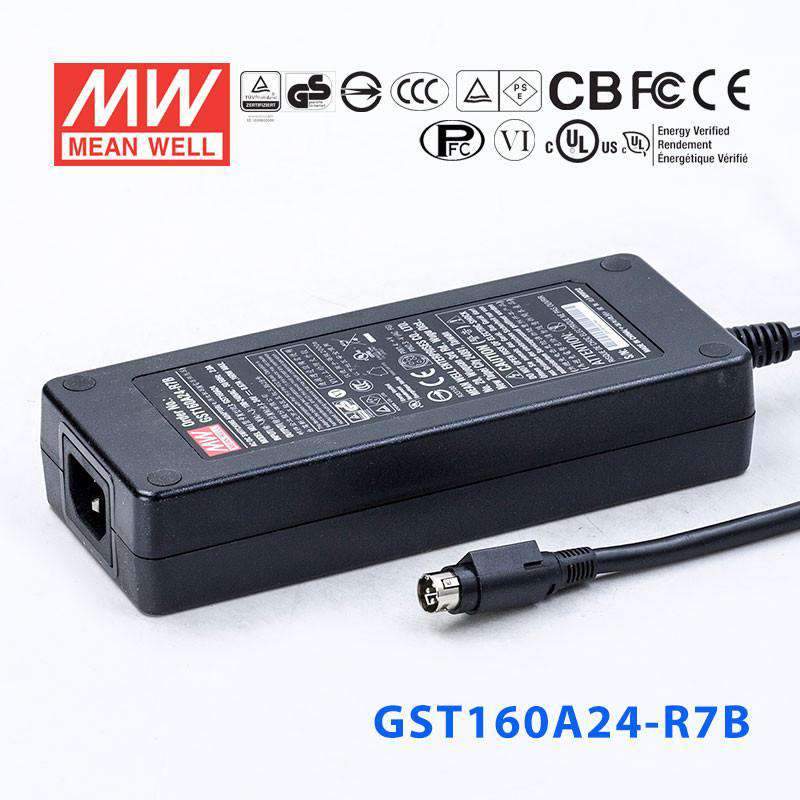

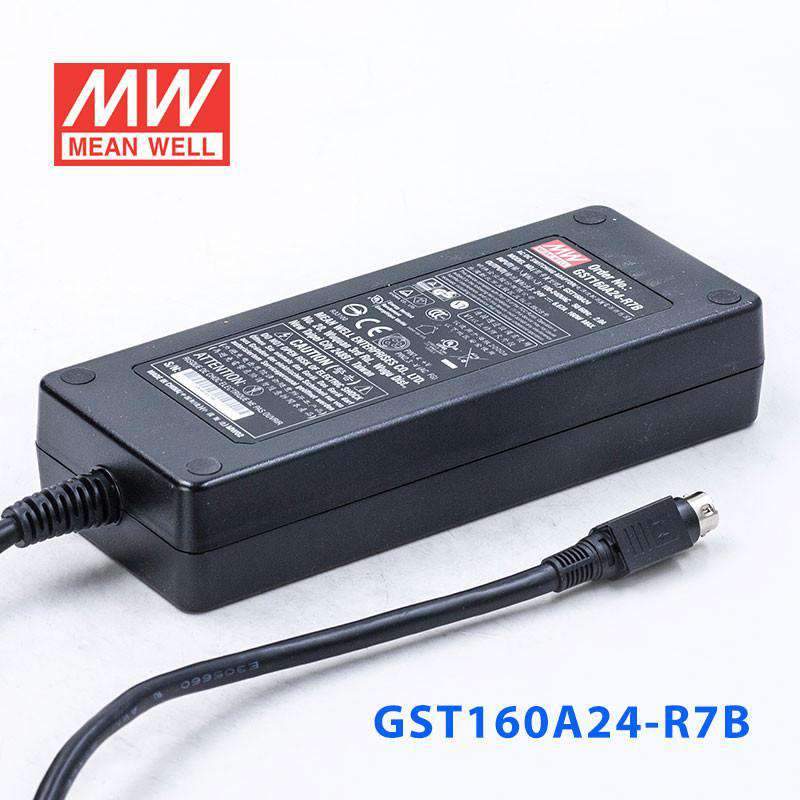

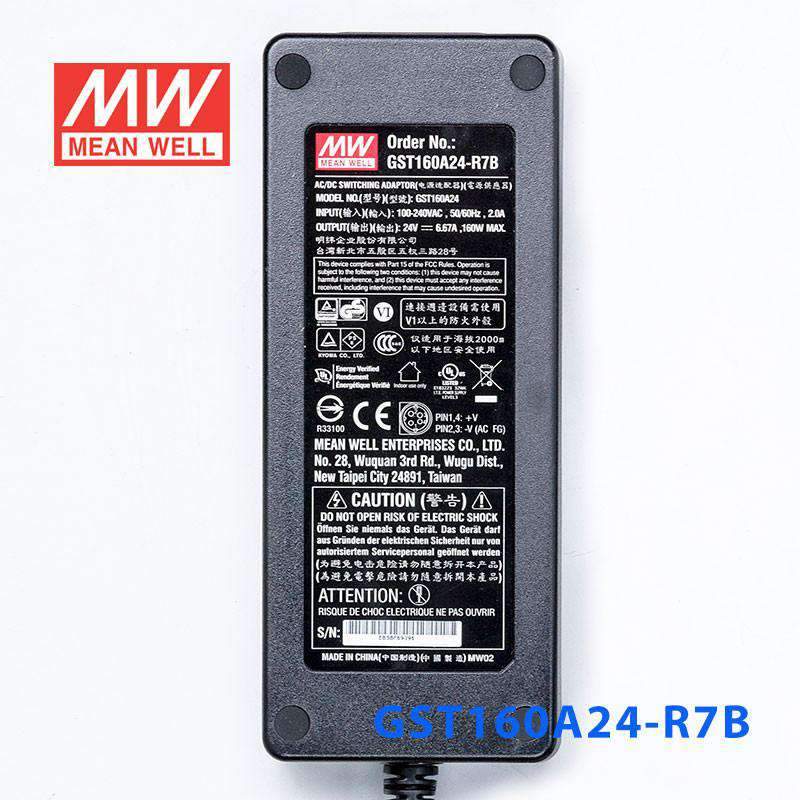

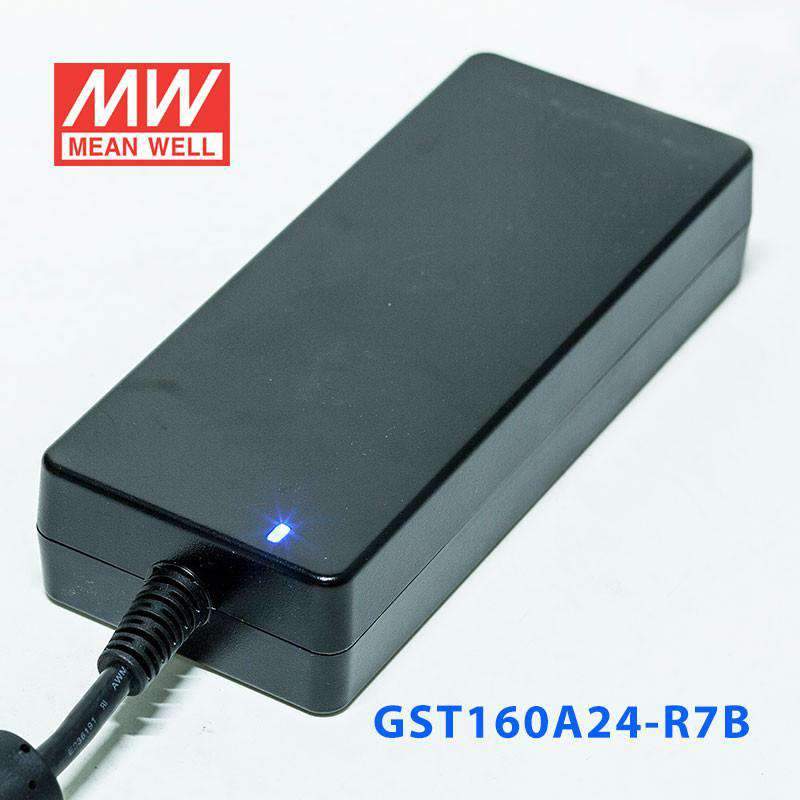

Mean Well GST160A24-R7B Power Supply 160W 24V
The GST160A24 is a 160W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1 BIS IS13252, KC K60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating160 Watt
-
Output Voltage24 Volt
-
Rated Current6.67 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
What output does the Mean Well GST160A24-R7B provide?
This model provides a regulated 24V DC output with a 160W power rating. Its rated output current is 6.67A, making it suitable for equipment that requires a 24V desktop power supply in this power range.
What kind of devices is the GST160A24-R7B typically used for?
The GST160A24-R7B is a desktop-style AC/DC power adaptor intended for 24V industrial, commercial, and OEM equipment that needs up to 160W. Buyers typically choose it when they need a higher-power external supply with a locking Power DIN 4P output plug and fanless operation.
What input range does this power supply support?
This model accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. That wide range makes it appropriate for use across different mains power environments without needing a region-specific input version.
Is the GST160A24-R7B suitable for demanding environments?
It is designed to operate in ambient temperatures from -30°C to +70°C, which is broader than many general-purpose desktop adaptors. It also includes short circuit, overload, over voltage, and over temperature protection for added reliability in professional use.
What output connector does the GST160A24-R7B use?

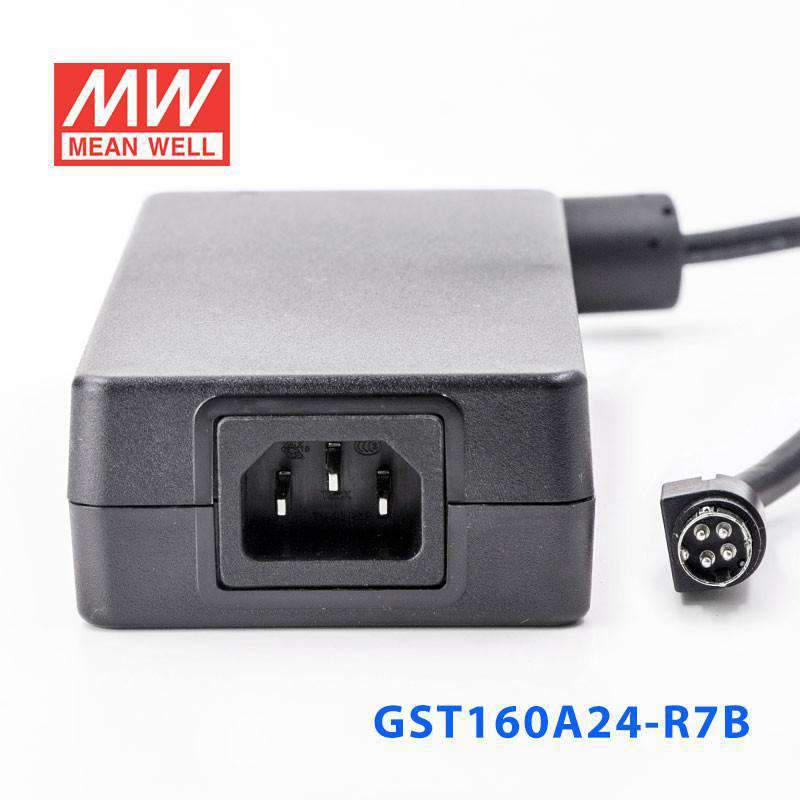

This version uses the R7B output option, which is a Power DIN 4P lock-type DC plug. That makes it distinct from barrel-plug variants and important to confirm when matching the power supply to compatible equipment.
How efficient is this Mean Well power supply?
The GST160A24-R7B is rated to Energy Efficiency Level VI and has no-load power consumption below 0.15W. It also meets EISA 2007 and is listed as NRCan and MEPS compliant, which is relevant for buyers comparing energy performance and compliance requirements.
What are the physical size and warranty for this model?
The housing dimensions are 175 x 72 x 35 mm, and the listed weight is 0.66 kg. Mean Well specifies a 3-year warranty for this model.
