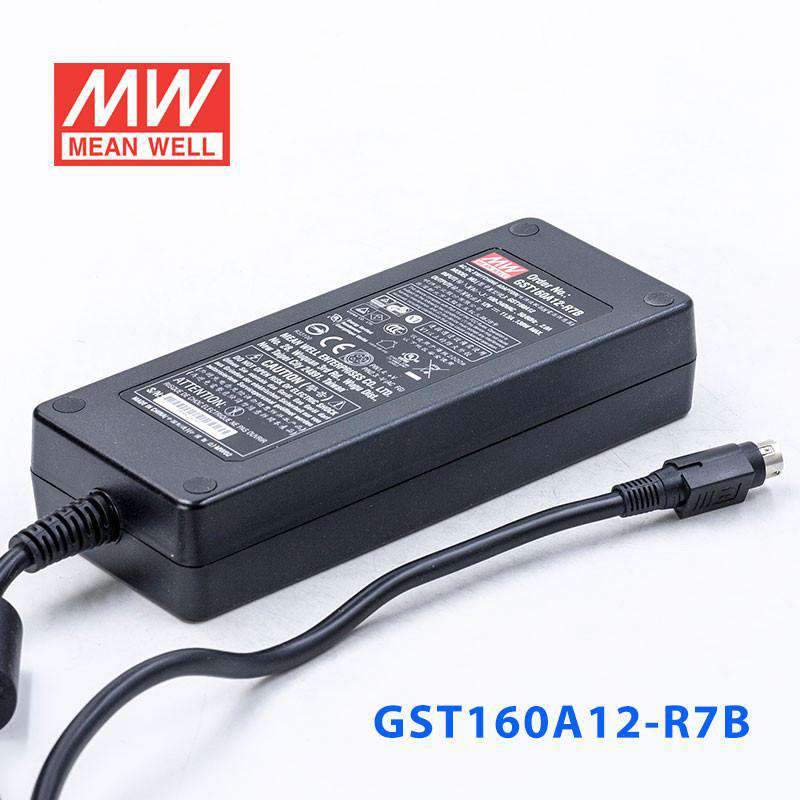

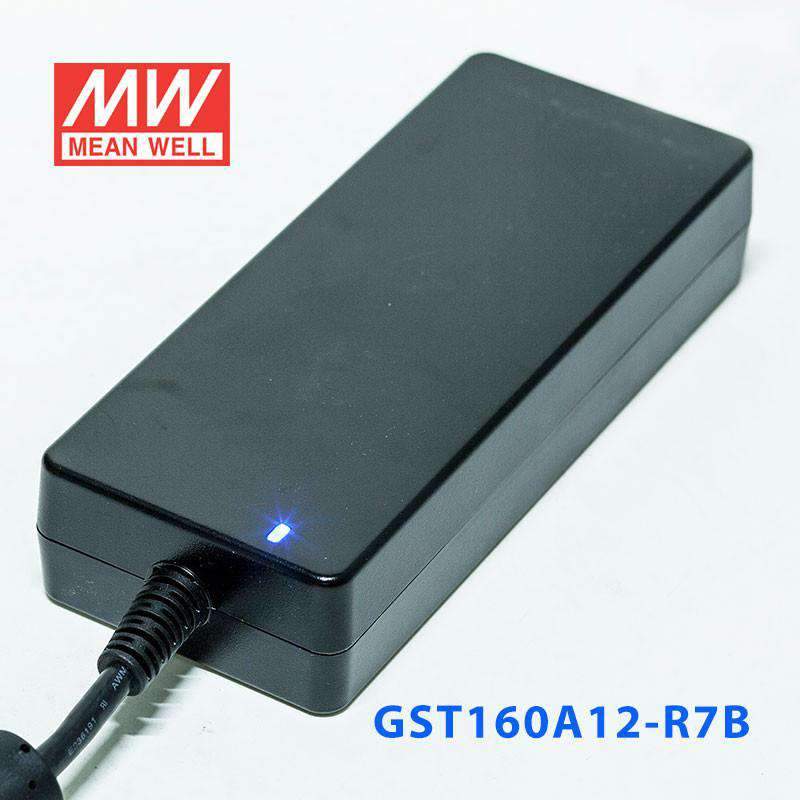

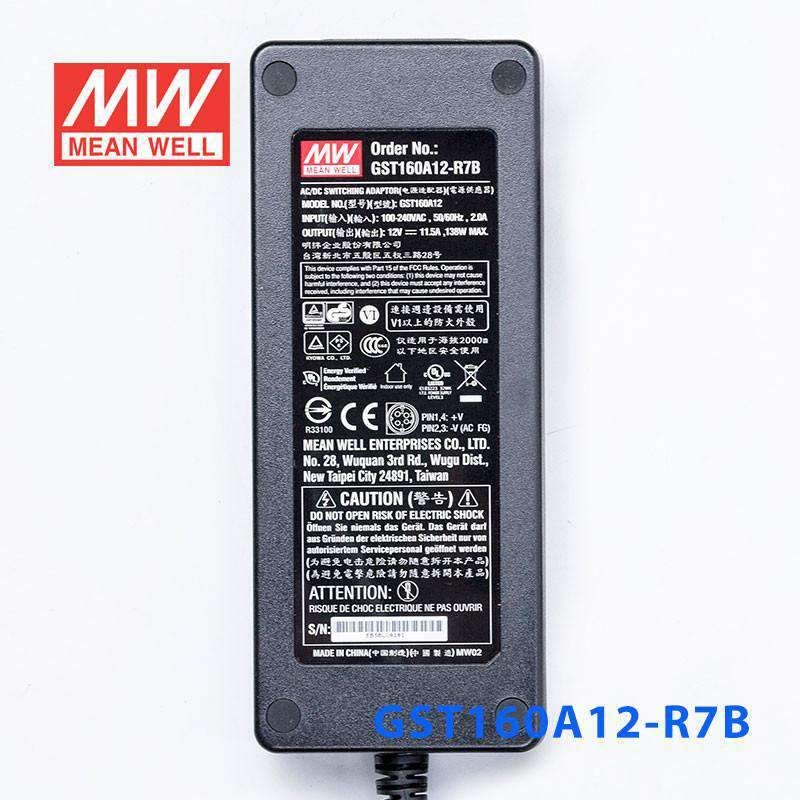

Mean Well GST160A12-R7B Power Supply 138W 12V
Description
Description
The GST160A12 is a 160W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1 BIS IS13252, KC K60950-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating138 Watt
-
Output Voltage12 Volt
-
Rated Current11.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well GST160A12-R7B provide?
The GST160A12-R7B is a 12V desktop power supply rated for up to 11.5A, with a maximum output power of 138W. It is designed for applications that require a regulated 12V DC source with higher current capacity.
What type of input power does this power supply accept?
This model accepts a universal AC input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide input range makes it suitable for use across different regions and power environments where compatible mains power is available.
What connector type is used on the GST160A12-R7B output?
The standard DC plug on this version is an R7B Power DIN 4P lock-type connector. Buyers should confirm that their equipment is designed for this exact plug format before ordering, since connector style is model-specific.
Is the GST160A12-R7B suitable for demanding industrial or commercial environments?
This model includes protections for short circuit, overload, over voltage, and over temperature, which helps support reliable operation in professional applications. It also operates across a wide temperature range of -30°C to +70°C and uses a fully enclosed plastic case with fanless design.
How energy efficient is this Mean Well power supply?
The GST160A12-R7B meets Energy Efficiency Level VI and has no-load power consumption below 0.15W. It is also listed as compliant with EISA 2007, NRCan, and MEPS requirements, which is useful for buyers with energy-efficiency or regulatory purchasing criteria.
What physical format does the GST160A12-R7B use?

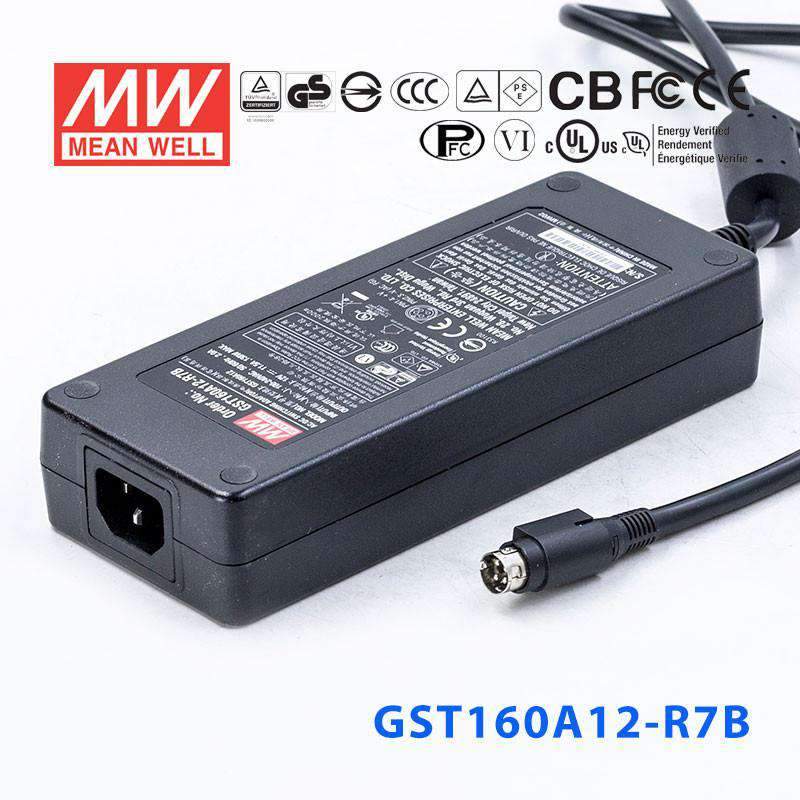

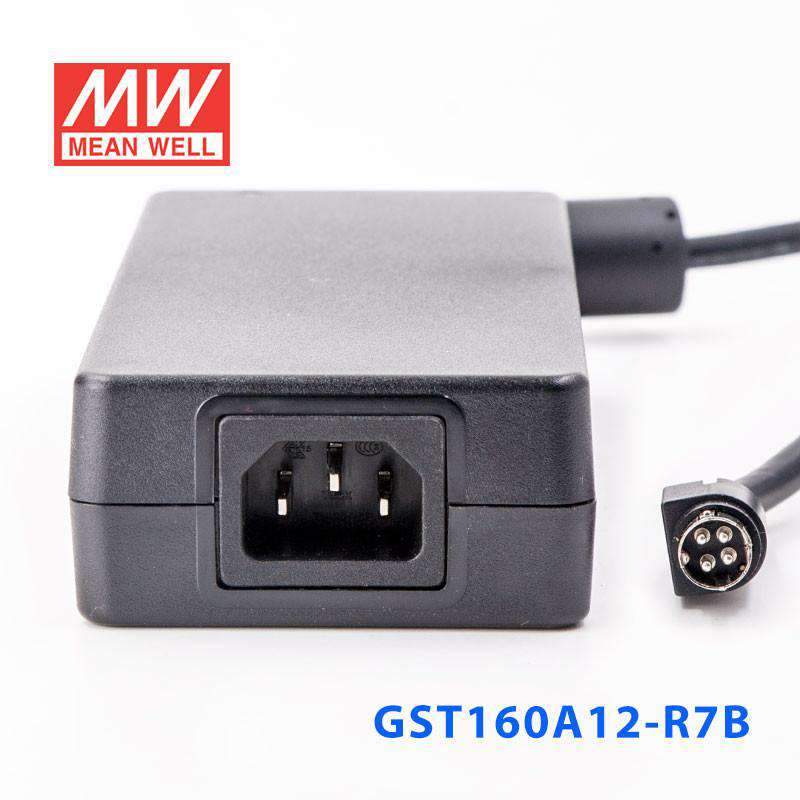

This is a desktop-style external power supply measuring 175 x 72 x 35 mm and weighing 0.66 kg. It uses a 3-pole IEC320-C14 AC inlet and includes a 120 cm output cable.
