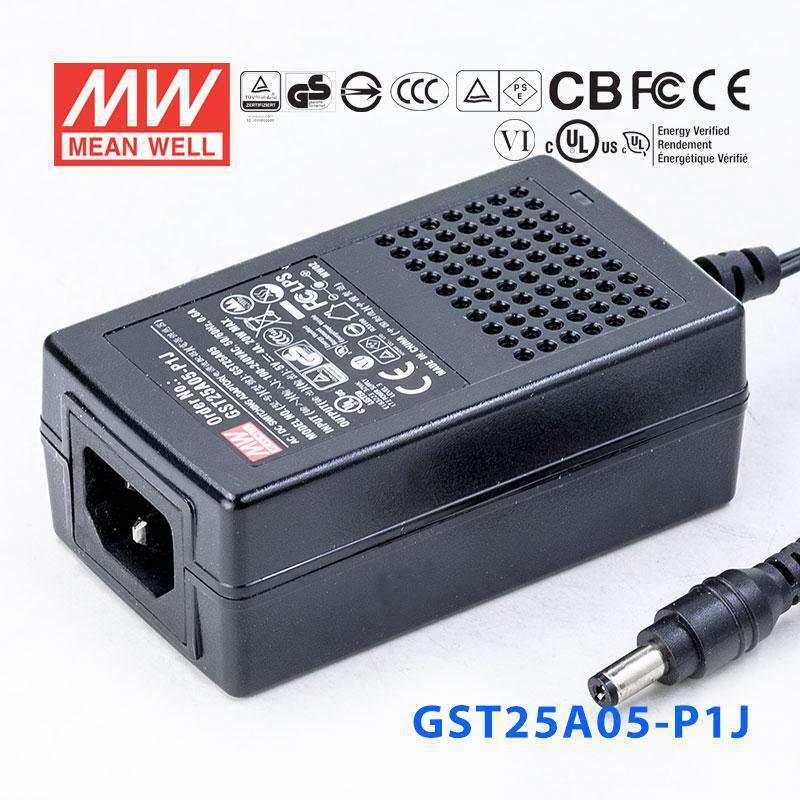

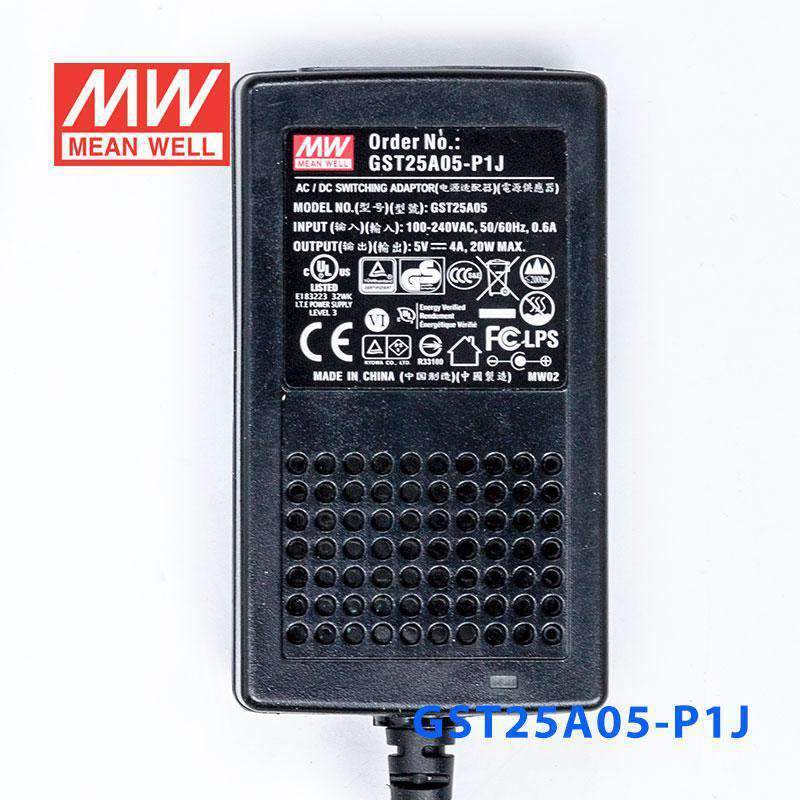

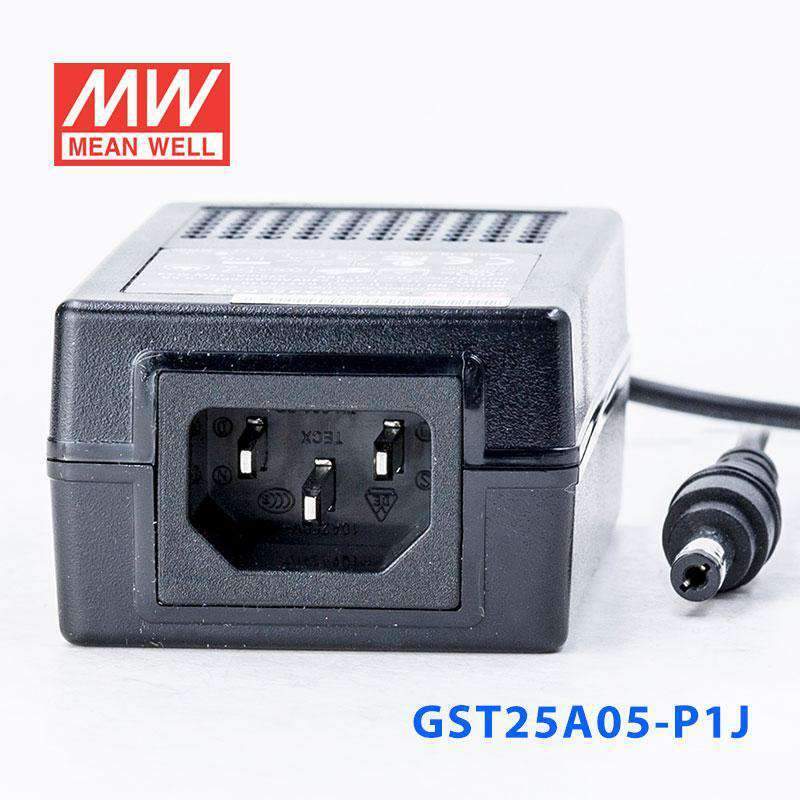

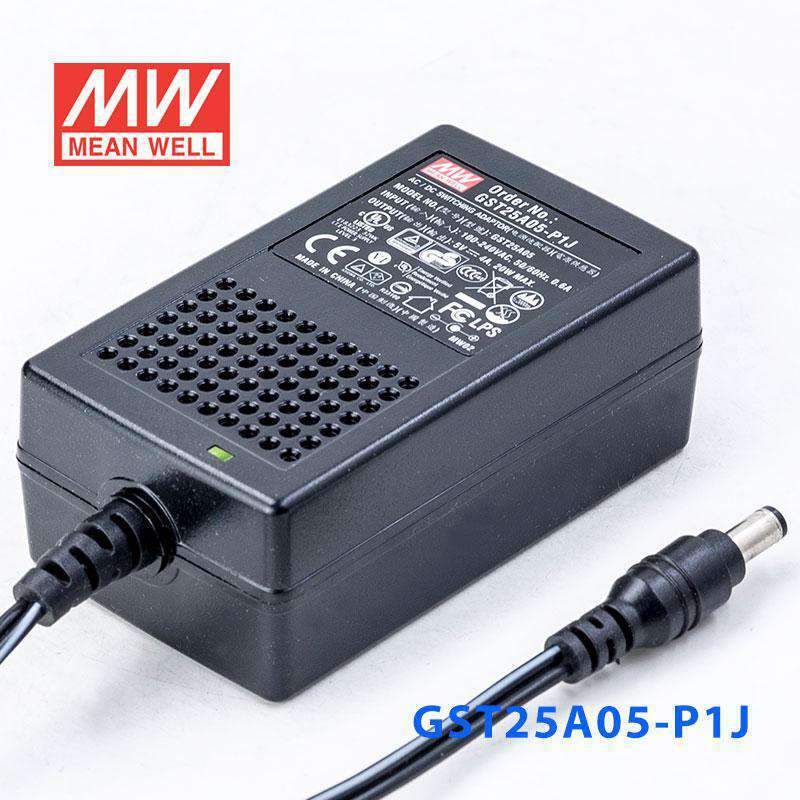

Mean Well GST25A05-P1J Power Supply 20W 5V
The GST25A05 is a 25W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating20 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.42 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the GST25A05-P1J for a 5V single-board computer or embedded controller?
Yes, this model provides constant 5V output up to 4A, with 20W total power. It suits 5V embedded electronics that need more current headroom than lower-current adapters.
Is the GST25A05-P1J suitable for industrial 5V logic devices or interface hardware?
It can be a fit for 5V DC logic, interface, or compact control equipment that requires constant voltage and stays within 4A. The main sizing check is keeping total load at or below 20W.
Can this 5V power supply run peripherals or processing devices with higher 5V current demand?
Yes, compared with very small 5V adapters, this unit offers up to 4A output current. That makes it suitable for 5V electronics that need a stronger regulated supply but still remain within 20W.
Is the GST25A05-P1J appropriate for indoor industrial environments?
The specified operating temperature range is -30°C to +70°C, which supports use in a wide range of indoor conditions. The provided specs do not show an IP rating, so it is better suited to protected installations than exposed outdoor use.
Can I use this adapter on different AC input voltages worldwide?
Yes, the input range is 85-264VAC. That wide-range input is useful when the same 5V product may be used across multiple regions or facility power standards.
