Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

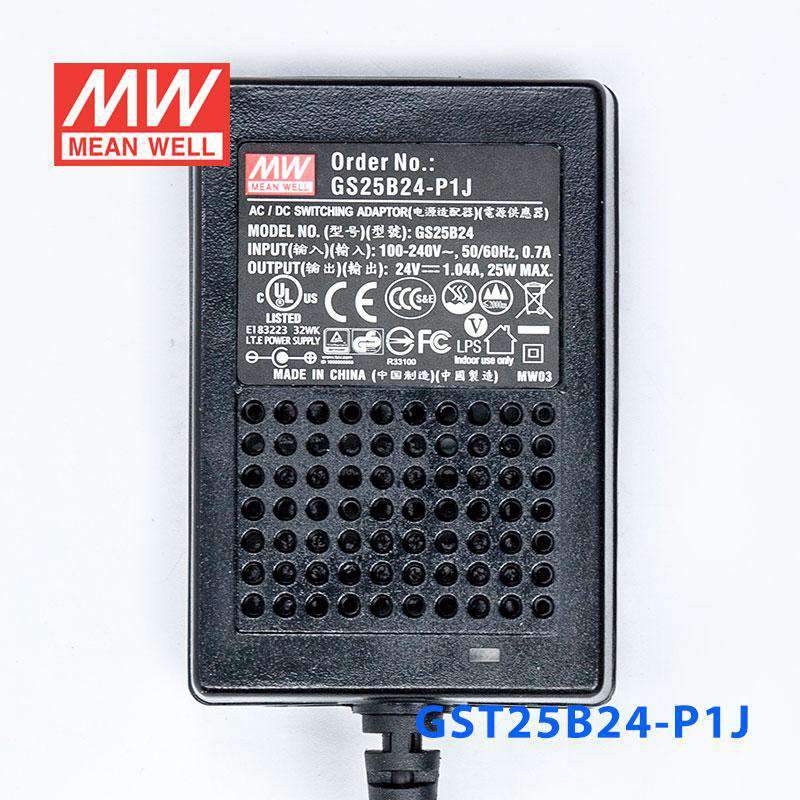

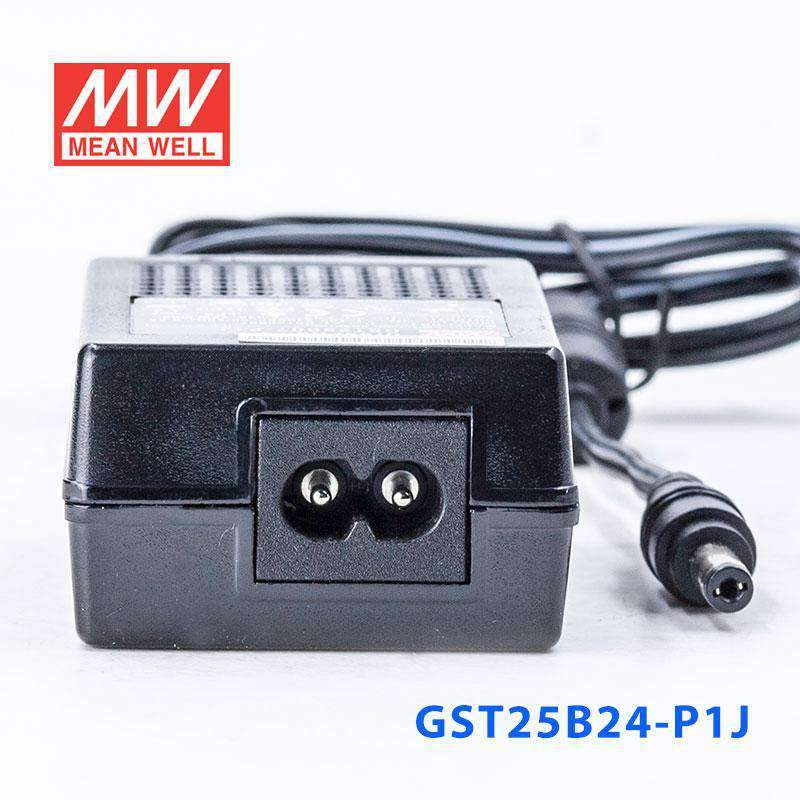

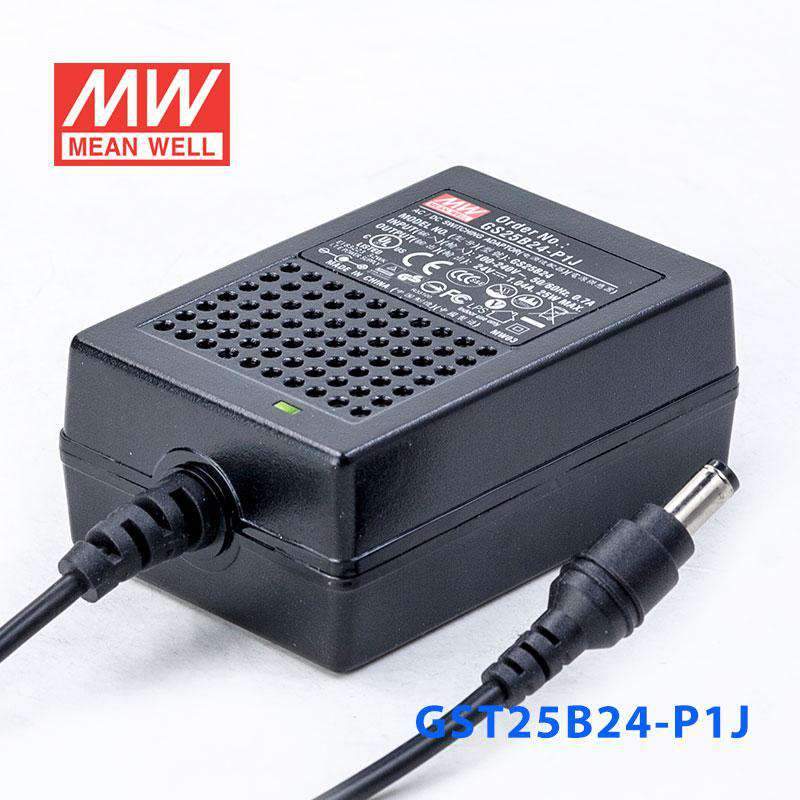

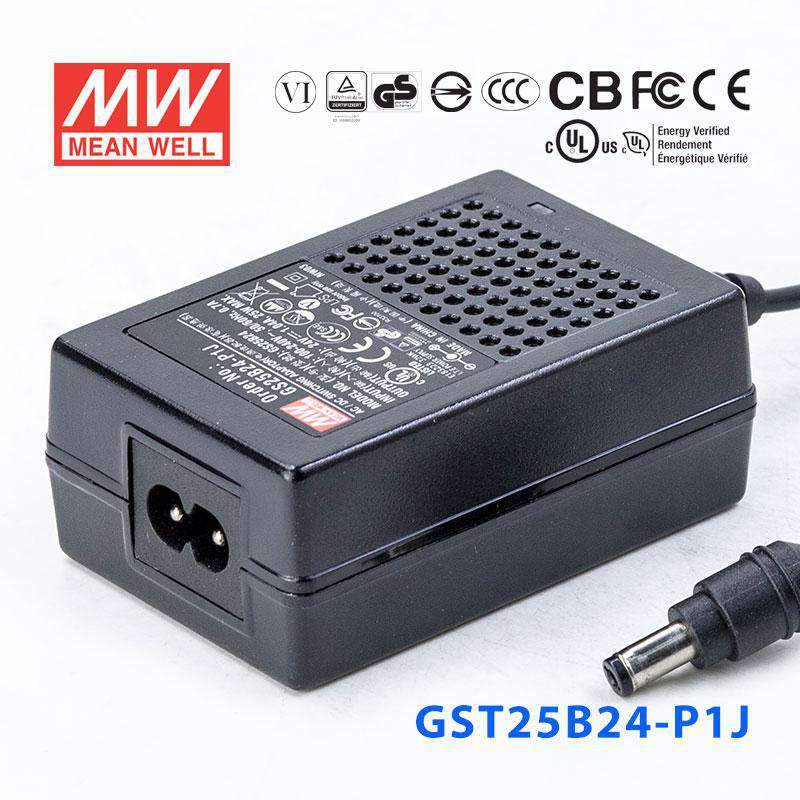

Mean Well GST25B24-P1J Power Supply 25W 24V
The GST25B24 is a 25W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1 ,PSE J60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating25 Watt
-
Output Voltage24 Volt
-
Rated Current1.04 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the GST25B24-P1J for 24V PLC accessories or control circuits?
Yes, it can fit 24V PLC accessories or control circuits that need constant 24V DC and draw no more than 1.04A. Its 25W rating makes it suitable for lighter-duty 24V electronics rather than larger automation loads.
Is this a suitable power supply for 24V sensors, transmitters, or interface modules?
It can support 24V sensors, transmitters, or interface modules if the total load stays within 1.04A. Because it provides constant voltage, it is intended for equipment that specifies 24V DC input.
Would the GST25B24-P1J work for compact 24V industrial networking or communications devices?
It can work for compact 24V communications or networking equipment when the device requires 24V DC and remains within the 25W output limit. The 85-264VAC input range also supports use across varied AC input conditions.
Can I use this model for 24V embedded or machine-level electronics?
It can be used for 24V embedded or machine-level electronics that need a fixed 24V supply and do not exceed 1.04A. Its 93.0 x 54.0 x 33.0 mm dimensions help in space-constrained equipment layouts.
Is the GST25B24-P1J appropriate for indoor and outdoor environments?
The listed operating temperature range is -30C to +70C, which covers a wide span of temperatures. No IP rating is provided in the supplied specs, so the available data supports temperature review but does not confirm outdoor exposure resistance.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GST25 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GST25B07-P1J Power Supply 22W 7.5V | 22W | 7.5V | 2.93A | Indoor | $16.54 | View |
| Mean Well GST25A15-P1JPower Supply 25W 15V | 25W | 15V | 1.66A | Indoor | $16.47 | View |
| Mean Well GST25A12-P1J Power Supply 25W 12V | 25W | 12V | 2.08A | Indoor | $11.59 | View |
| Mean Well GST25A05-P1J Power Supply 20W 5V | 20W | 5V | 4A | Indoor | $16.47 | View |
