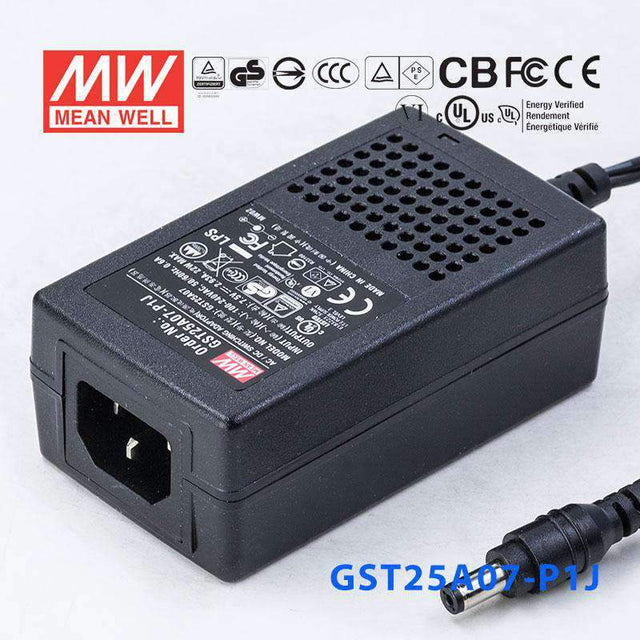

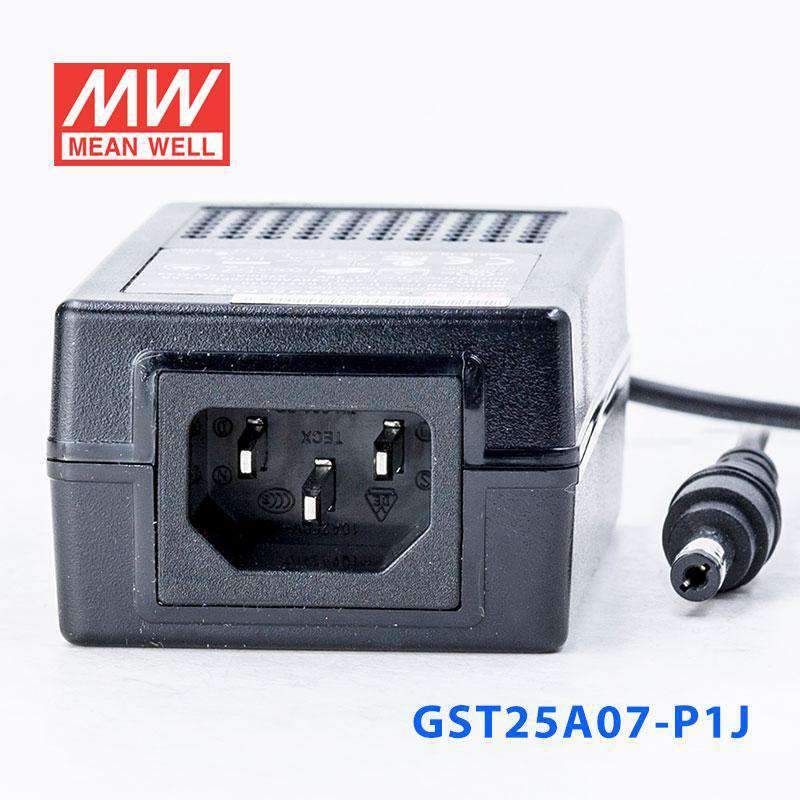

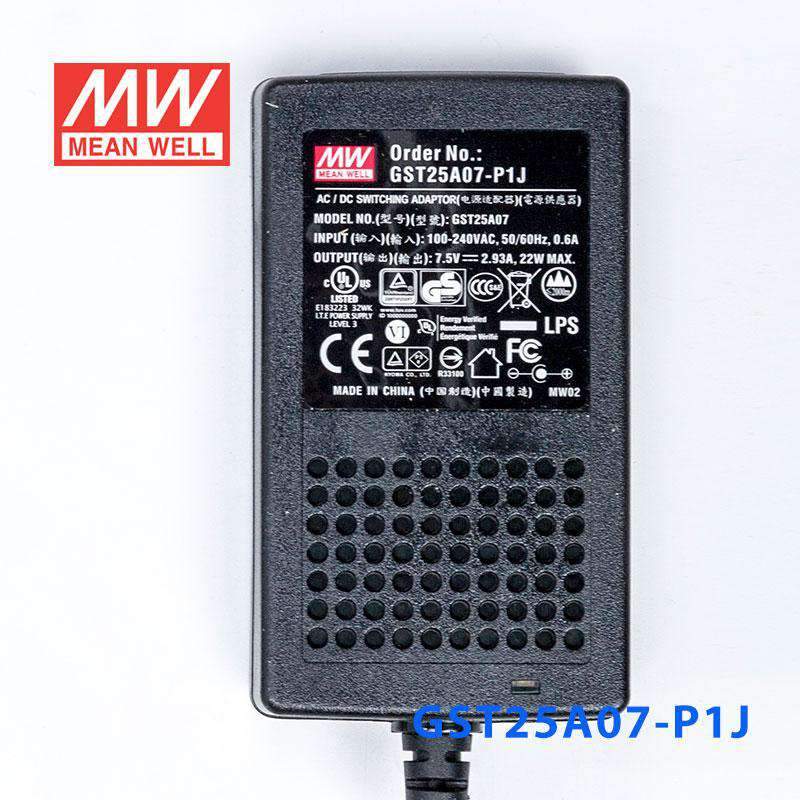

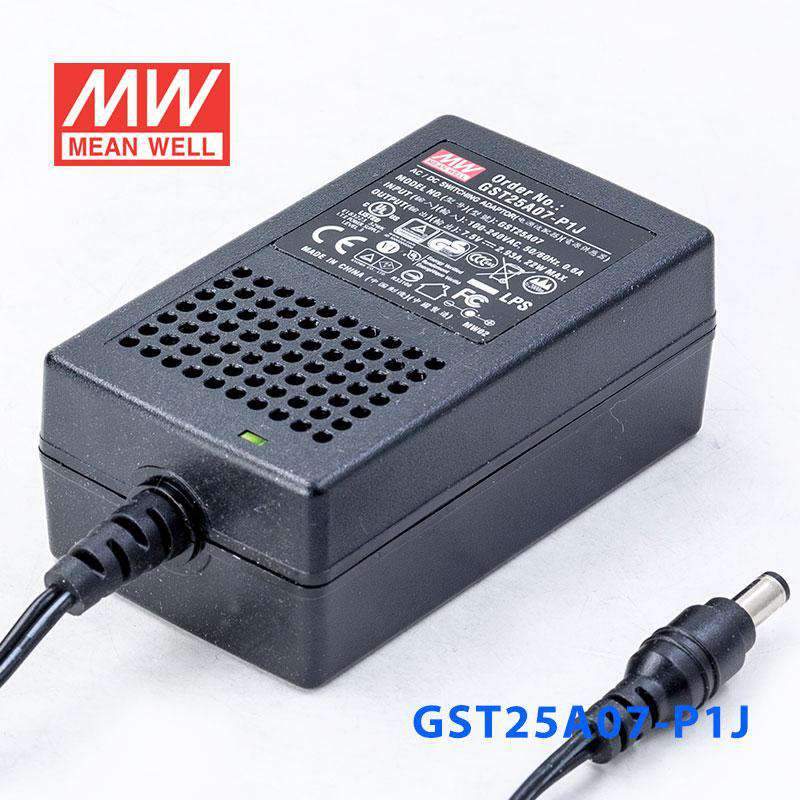

Mean Well GST25A07-P1J Power Supply 20W 7.5V
The GST25A07 is a 25W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating22 Watt
-
Output Voltage7.5 Volt
-
Rated Current2.93 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.42 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the GST25A07-P1J for a 7.5V embedded controller or industrial electronics module?
Yes, if the equipment requires a 7.5V constant-voltage input and its load stays within 2.93A and 22W. That makes it a fit for low-power embedded, industrial control, or bench devices designed for 7.5V DC. The wide 85-264VAC input also supports operation across common AC power ranges.
Is this power supply suitable for 7.5V test and measurement equipment?
It can be suitable for test or measurement devices that need 7.5V DC from a constant-voltage supply and do not exceed 2.93A or 22W. Buyers should match the device's required voltage exactly, because this model is fixed at 7.5V output. Its compact 93.0 x 54.0 x 36.0 mm size can also help where bench or cabinet space is limited.
Can I use this 7.5V adapter for small automation or monitoring hardware?
Yes, for automation or monitoring hardware that is specifically rated for 7.5V DC and stays within the 2.93A, 22W limit. This model uses constant-voltage operation, so it is intended for loads that expect a steady 7.5V supply. It is not a variable-output unit.
Is the GST25A07-P1J for indoor or outdoor use?
The listed specs include an operating temperature range of -30C to +70C, but no IP rating is provided. Without a stated IP rating, it should be treated as a power supply for dry, protected environments rather than exposed outdoor use. For outdoor placement, the enclosure would need to provide the environmental protection.
How do I know if this 7.5V power supply is the right size for my device?
The device should require 7.5V DC and draw no more than 2.93A, with total power at or below 22W. If your equipment needs a different voltage, this model is not the right match because it is a constant-voltage 7.5V supply. Matching both voltage and load is the key sizing check.
