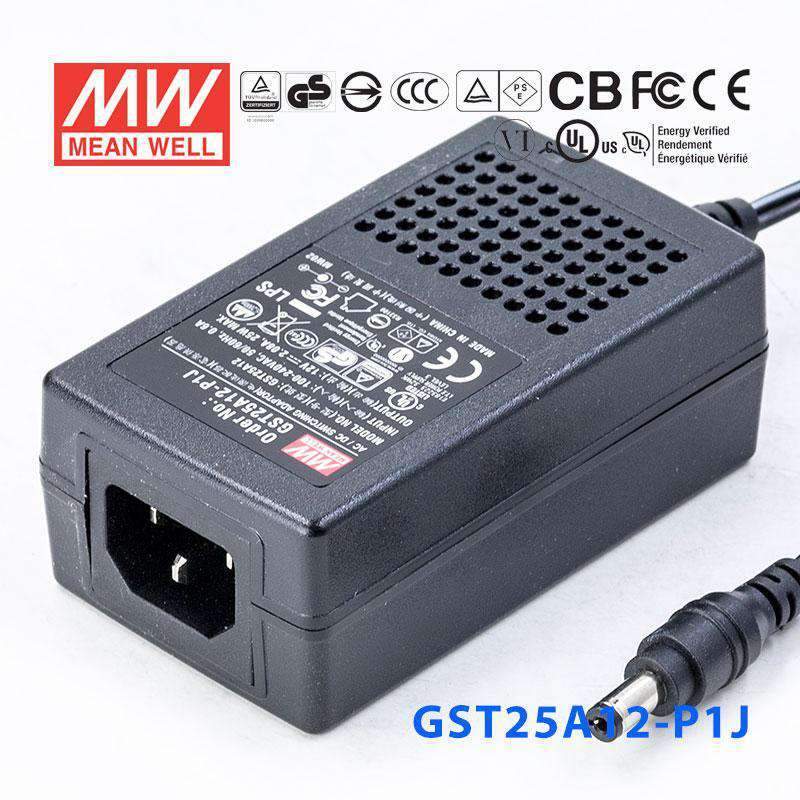

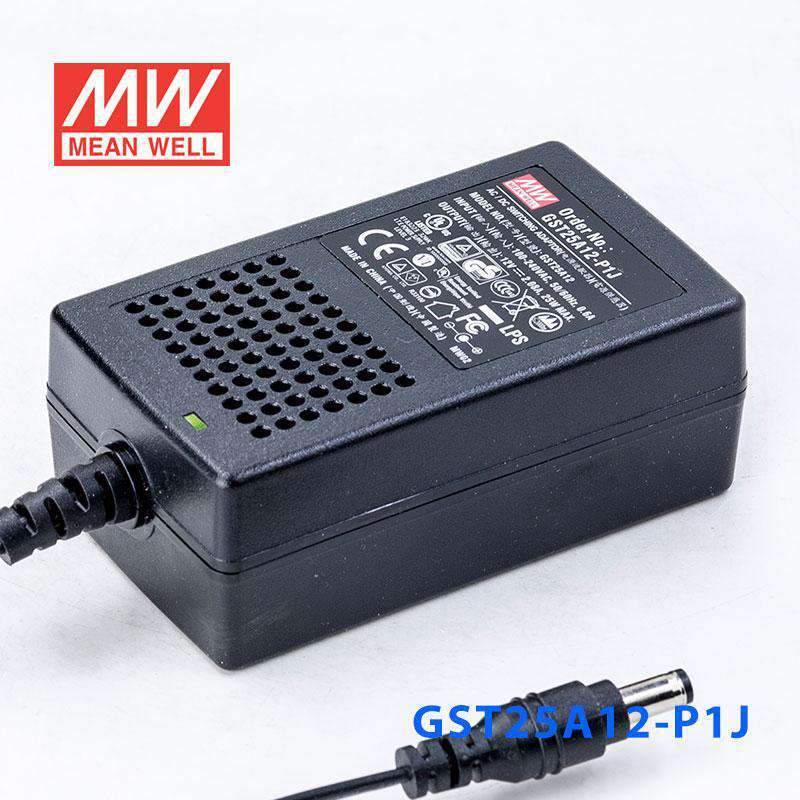

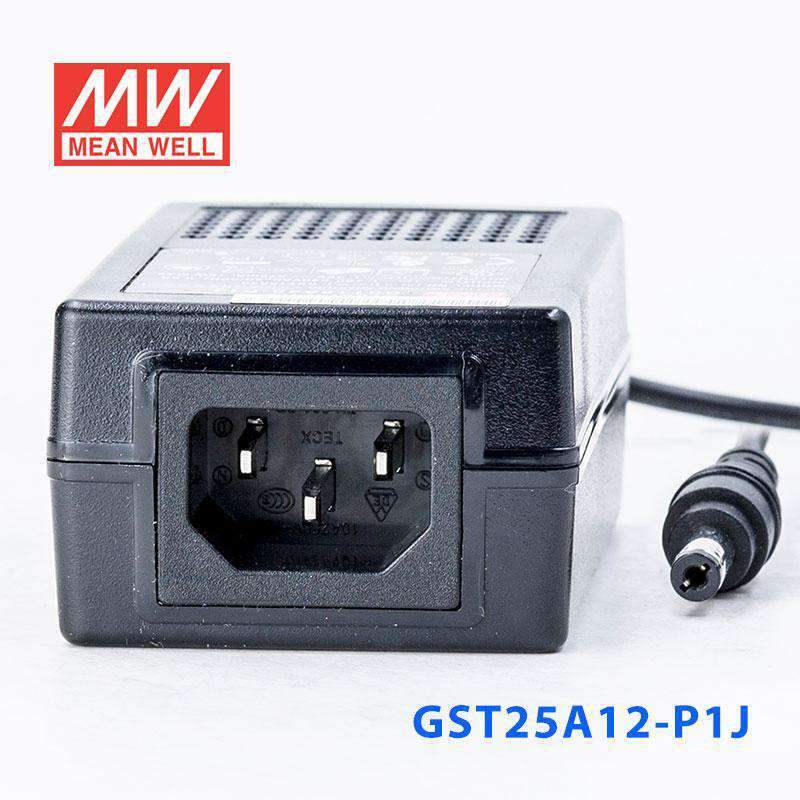

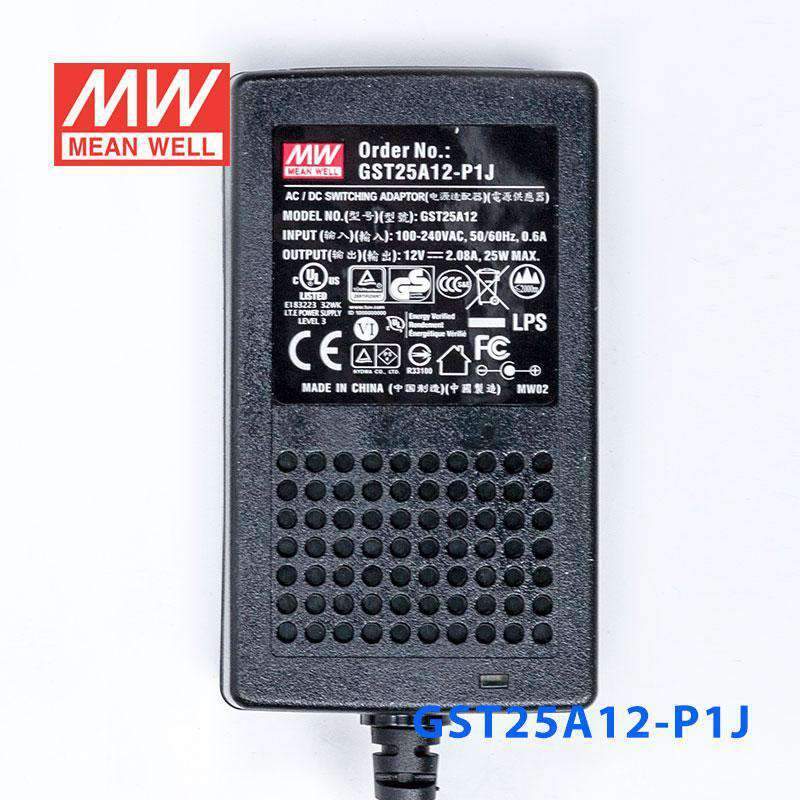

Mean Well GST25A12-P1J Power Supply 25W 12V

Name: Mean Well GST25A12-P1J Power Supply 25W 12V
Brand: Mean Well
SKU: GST25A12-P1J
Price: 11.59 USD
Availability: InStock

SKU:

GST25A12-P1J

$11.59 USD ~~$15.57~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The GST25A12 is a 25W Mean Well power converter.

Key Features

✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
✓ 3 years warranty

Brand

Mean Well
Series

GST Series
Power Rating

25 Watt
Output Voltage

12 Volt
Rated Current

2.08 Ampere
Input Voltage

85V~264V
No of Output

1
Dimming Control

None
Standards Met

BSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

3.66 in
Width

2.13 in
Height

1.42 in
Weight

0.46 lb

Frequently Asked Questions

Can I use the GST25A12-P1J for 12V PLC accessories or industrial control hardware?

Yes, if the accessory or control hardware is designed for 12V DC input and stays within 2.08A and 25W. This constant-voltage supply is appropriate for low-power industrial electronics that require a steady 12V source. The wide 85-264VAC input is also useful where AC input conditions vary.

Is this 12V model suitable for small CCTV, sensor, or automation devices?

It can be suitable for 12V CCTV, sensing, or automation devices that do not exceed 2.08A or 25W. The output is fixed at 12V, so the connected load should be designed for 12V constant-voltage operation. This keeps it in the range of lower-power 12V equipment rather than higher-draw systems.

Can the GST25A12-P1J power a 12V embedded computer or communications device?

Yes, if the device requires 12V DC and its total load is within 25W and 2.08A. That makes it relevant for compact embedded, communications, or interface hardware built around a 12V input. The housing is 93.0 x 54.0 x 36.0 mm, which helps in tighter installations.

Is this power supply intended for outdoor conditions?

The operating temperature range is -30C to +70C, but no IP rating is listed in the provided specs. Without a stated IP rating, it is better treated as a unit for indoor or protected use rather than open outdoor exposure. Environmental protection would need to come from the enclosure around it.

How do I size this 12V adapter for my load?

Use it only with equipment that requires 12V DC and stays at or below 2.08A and 25W. If the load needs more current or a different voltage, this model is not the correct match. The key compatibility check is exact 12V requirement plus total load within the rated output.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well GST25B24-P1J Power Supply 25W 24V	25W	24V	1.04A	Indoor	$16.54	View
Mean Well GST25B07-P1J Power Supply 22W 7.5V	22W	7.5V	2.93A	Indoor	$16.54	View
Mean Well GST25A15-P1JPower Supply 25W 15V	25W	15V	1.66A	Indoor	$16.47	View
Mean Well GST25A05-P1J Power Supply 20W 5V	20W	5V	4A	Indoor	$16.47	View
