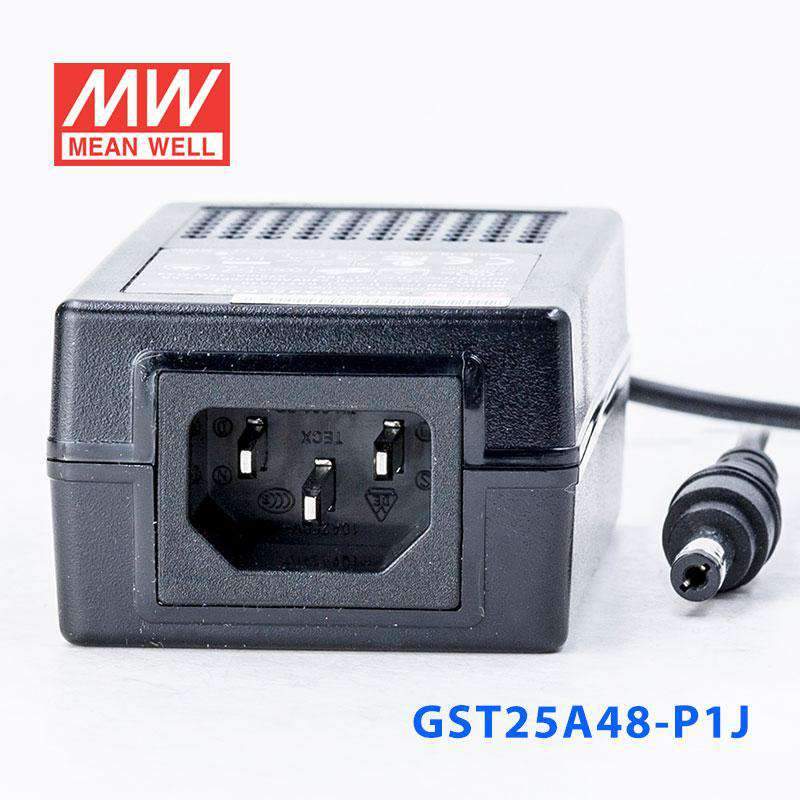

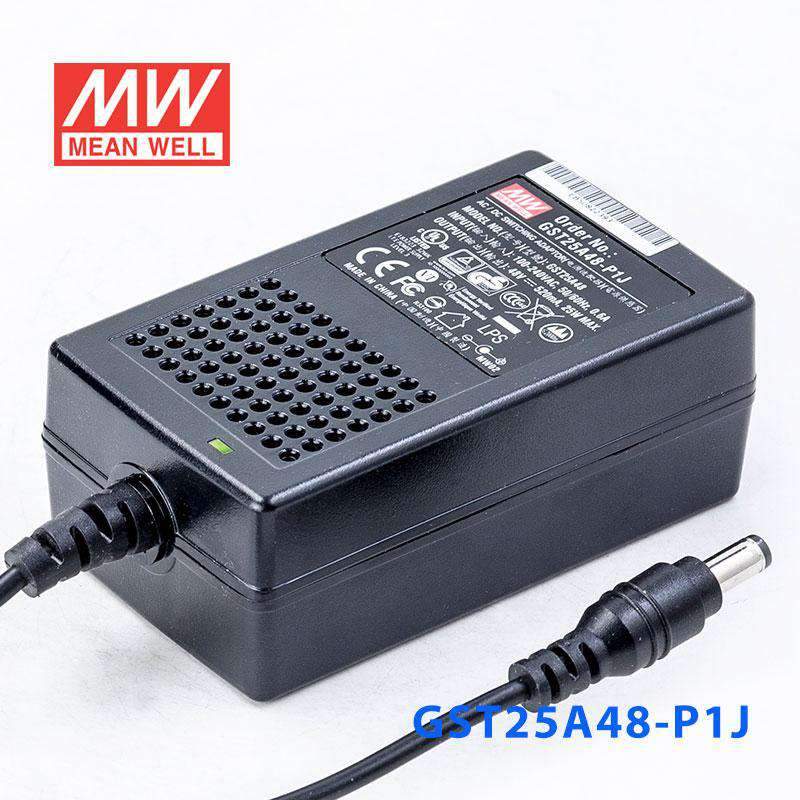

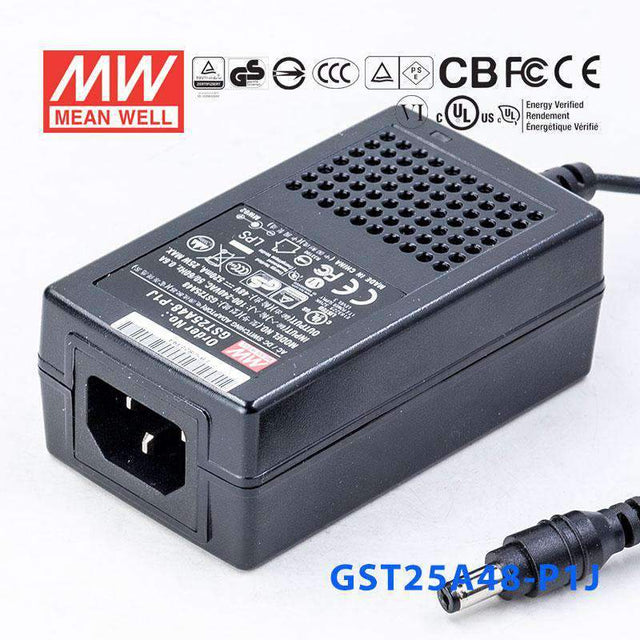

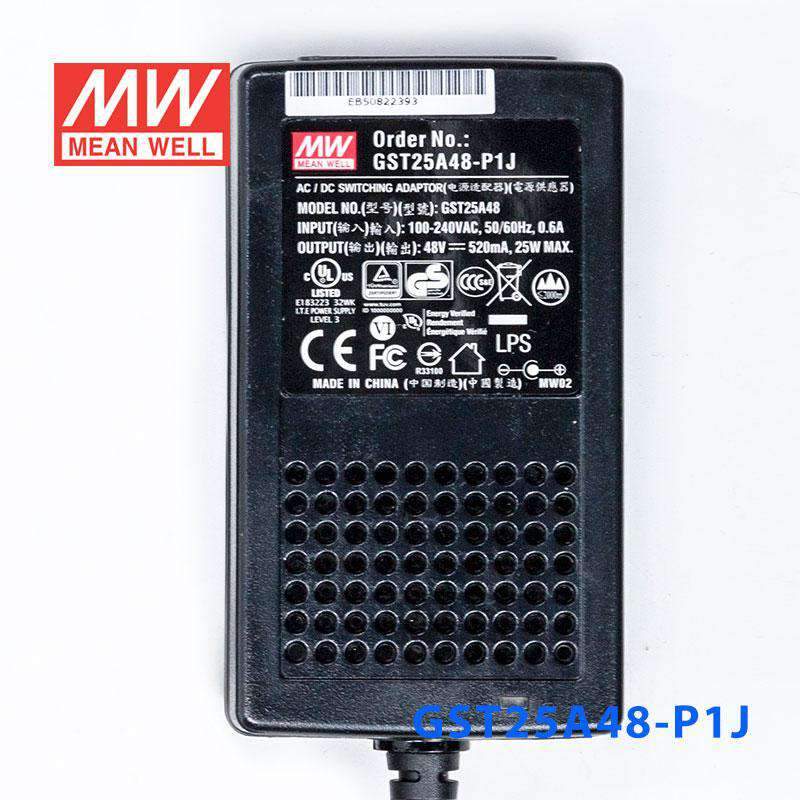

Mean Well GST25A48-P1J Power Supply 25W 48V
The GST25A48 is a 25W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating25 Watt
-
Output Voltage48 Volt
-
Rated Current0.52 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.42 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the GST25A48-P1J for a 48V networking or communications device?
It can be used with 48V equipment that accepts constant voltage input and requires no more than 0.52A. The unit is rated for 48V output and 25W maximum power.
Is the GST25A48-P1J suitable for 48V industrial control electronics?
Yes, for 48V industrial or embedded electronics that stay within the 25W and 0.52A output limits. It is a constant voltage supply, so the connected load should be designed for 48V DC input.
Can this model power a small 48V automation or monitoring unit?
It is a reasonable fit for compact 48V automation, monitoring, or interface equipment that draws no more than 0.52A. Its fixed output is 48V DC, with a total power rating of 25W.
How do I know if 25W is enough for my 48V device?
Match the device requirement against the supply's 48V, 0.52A, and 25W limits. If the load needs more than 0.52A at 48V or more than 25W total, this model is undersized.
Is the GST25A48-P1J rated for outdoor use or temperature extremes?
The operating temperature range is -30°C to +70°C, so the temperature specification is broad. However, no IP rating is listed, so the provided specs do not confirm outdoor or moisture-exposed use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GST25 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GST25B24-P1J Power Supply 25W 24V | 25W | 24V | 1.04A | Indoor | $16.54 | View |
| Mean Well GST25B07-P1J Power Supply 22W 7.5V | 22W | 7.5V | 2.93A | Indoor | $16.54 | View |
| Mean Well GST25A15-P1JPower Supply 25W 15V | 25W | 15V | 1.66A | Indoor | $16.47 | View |
| Mean Well GST25A12-P1J Power Supply 25W 12V | 25W | 12V | 2.08A | Indoor | $11.59 | View |
| Mean Well GST25A05-P1J Power Supply 20W 5V | 20W | 5V | 4A | Indoor | $16.47 | View |
