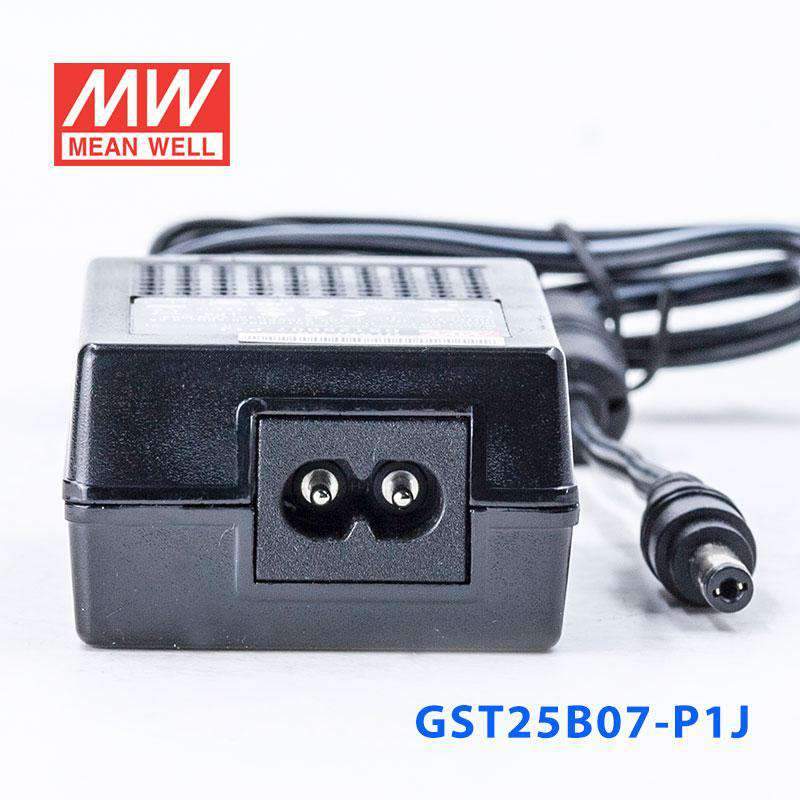

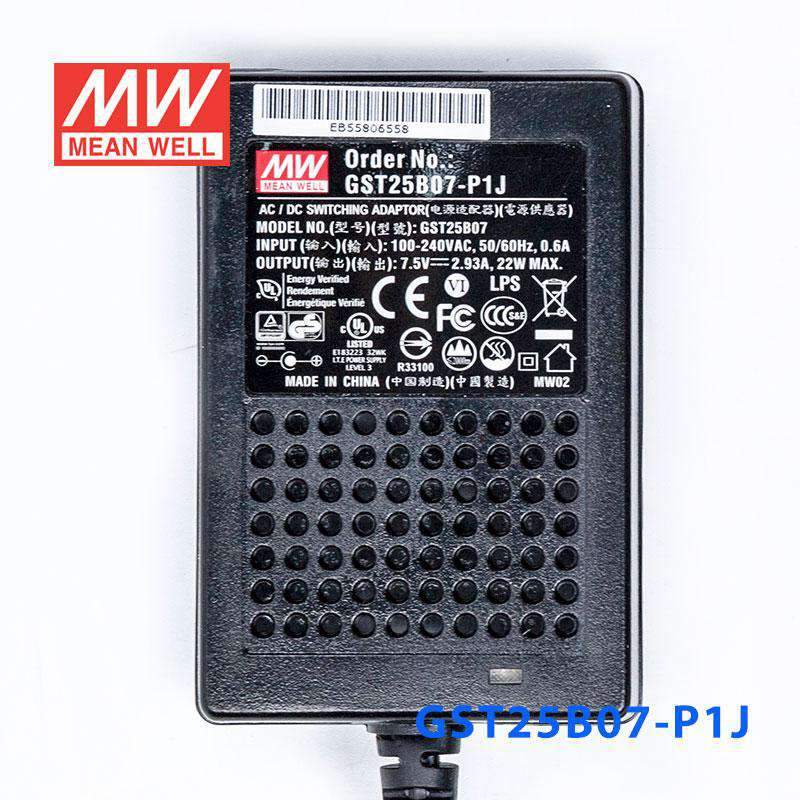

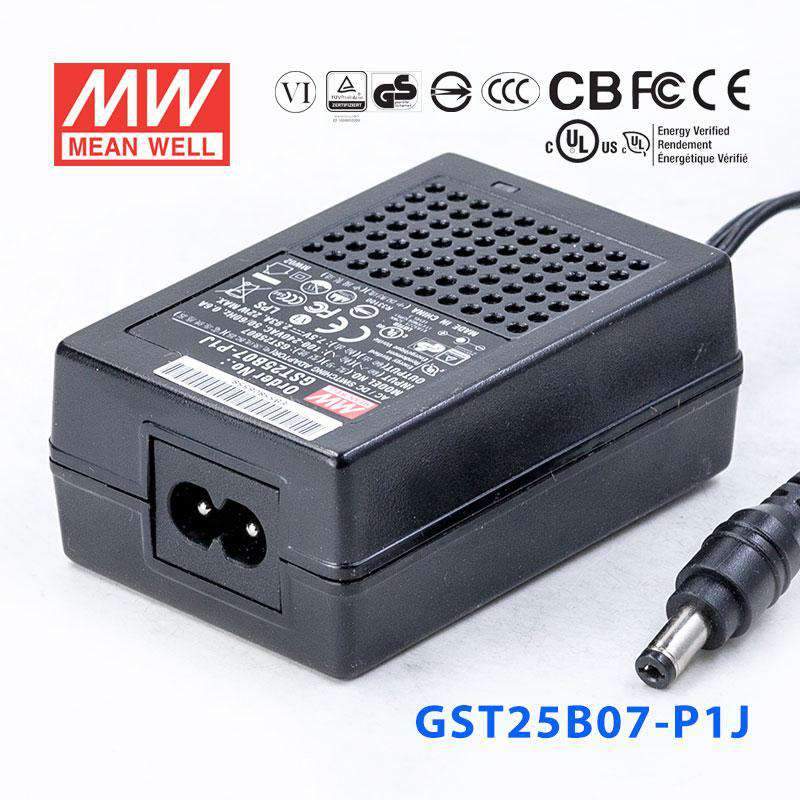

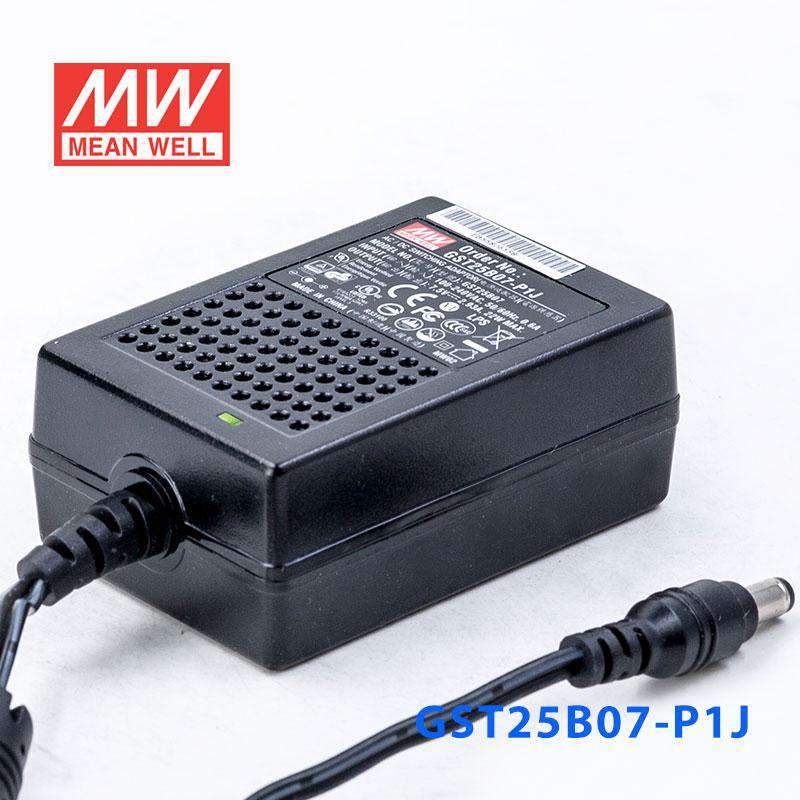

Mean Well GST25B07-P1J Power Supply 22W 7.5V
The GST25B07 is a 25W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1 ,PSE J60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating22 Watt
-
Output Voltage7.5 Volt
-
Rated Current2.93 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the GST25B07-P1J for equipment that needs 7.5V DC power?
Yes, if the device is designed for 7.5V constant voltage input. This model delivers 7.5V output with up to 2.93A and 22W total.
Is the GST25B07-P1J suitable for 7.5V embedded or electronic control hardware?
It can be used for embedded or control electronics that require a fixed 7.5V supply and stay within 2.93A. The output format is constant voltage, which is important for compatibility with 7.5V loads.
Can this supply power a small 7.5V instrument or automation accessory?
Yes, for smaller 7.5V instruments, accessories, or modules whose demand does not exceed 22W or 2.93A. The main requirement is that the connected equipment is specified for 7.5V DC input.
How do I check whether the GST25B07-P1J is the right size for my load?
Compare your device requirement to the supply's 7.5V output, 2.93A maximum current, and 22W power rating. If the load exceeds either 2.93A or 22W, this model is not large enough.
Is the GST25B07-P1J intended for indoor or outdoor environments?
The temperature specification is -30°C to +70°C, which covers a wide operating range. No IP rating is listed, so the provided product data does not confirm outdoor or weather-exposed use.
