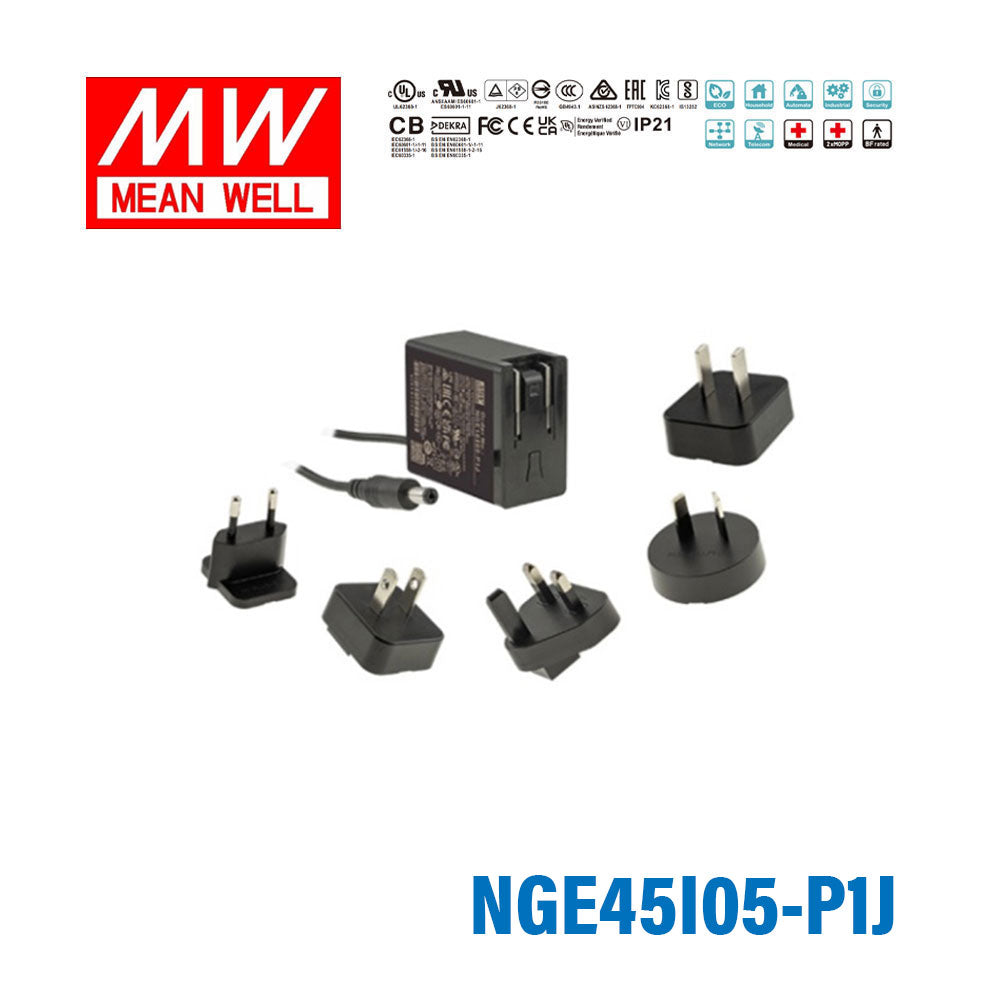

Mean Well NGE45I05-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 28.1W 5V 5.63A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE45I05-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE45I05 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating28.1 Watt
-
Output Voltage5 Volt
-
Rated Current5.63 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What is the Mean Well NGE45I05-P1J designed for?
The NGE45I05-P1J is an AC-DC wall-mounted power adaptor intended for equipment that requires a regulated 5V DC output. It is suited to commercial and industrial buying contexts where a compact external power supply with interchangeable AC plugs and broad safety approvals is needed.
What are the output specifications of this adaptor?
This model provides a 5V DC output rated at up to 5.63A, with a total power rating of 28.1W. It is intended for loads that match those electrical requirements and need a stable low-voltage external power supply.
What input voltage range does the NGE45I05-P1J support?
It supports a universal input range of 80 to 264VAC, as well as 113 to 370VDC. That full-range input makes it suitable for international procurement and multi-region equipment programs when paired with the appropriate interchangeable AC plug.
How does this model differ from a fixed-plug wall adaptor?
A key difference is its interchangeable AC plug design, which gives more flexibility than a fixed-plug adaptor for organizations operating across different regions. This model is also positioned as a slim 28mm design with Level VI efficiency and low no-load power consumption below 0.075W.
Can this adaptor be used in demanding temperature conditions?
Yes, the NGE45I05-P1J is rated for operation from -30°C to +70°C. That wide working temperature range makes it a practical option for equipment used in harsher indoor or controlled industrial environments, subject to the product's derating guidance.
What protection and safety features does this adaptor include?
This model includes short circuit, overload, and over-voltage protection, and it is specified as Class II power with no earth pin. It also carries broad safety approvals across ITE, medical, household, and industrial standards, which can help B2B buyers evaluating compliance requirements.
