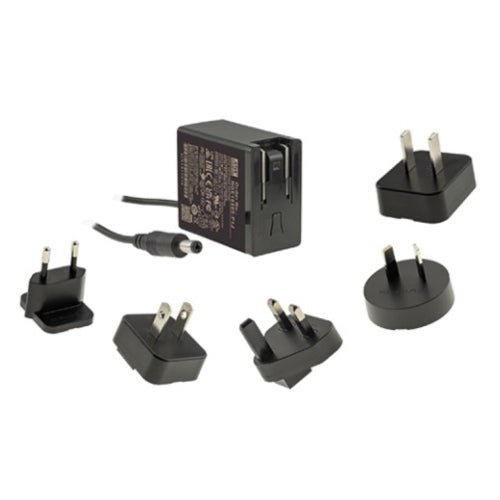

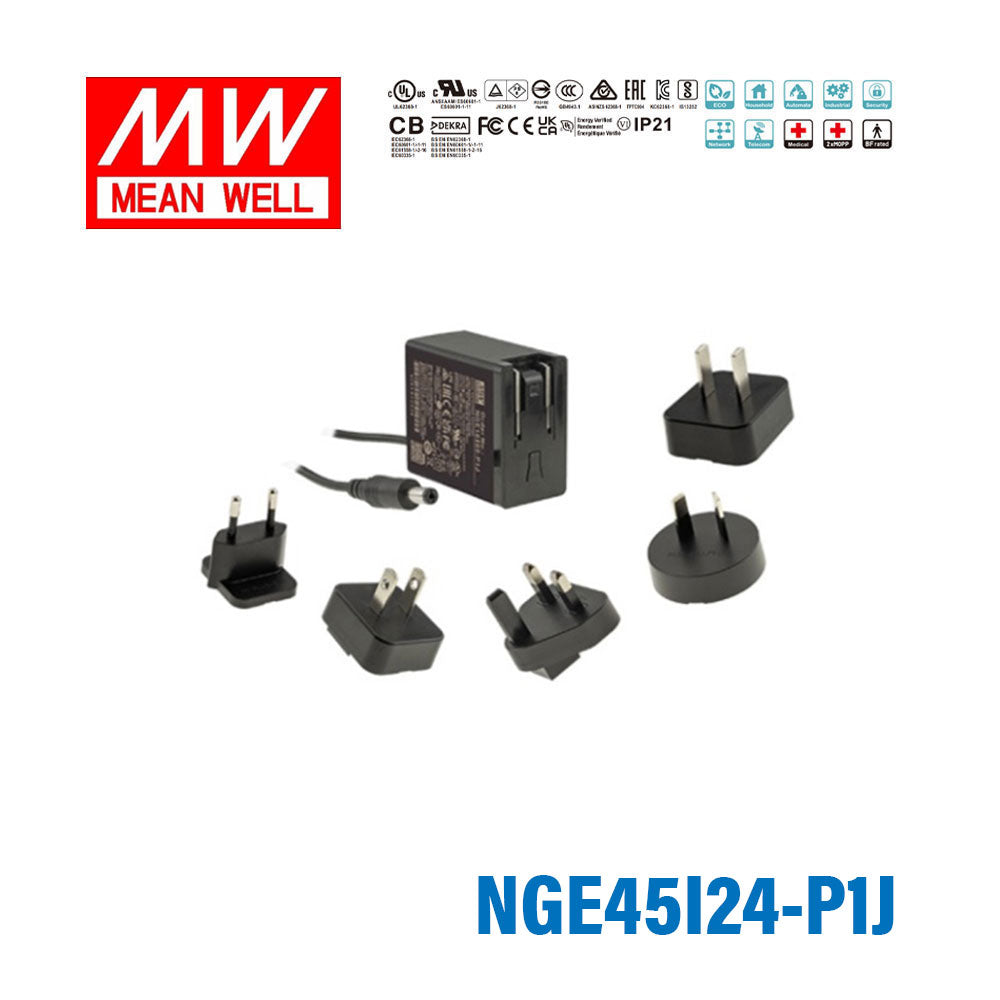

Mean Well NGE45I24-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 45.1W 24V 1.88A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE45I24-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE45I24 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating45.1 Watt
-
Output Voltage24 Volt
-
Rated Current1.88 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE45I24-P1J?
This model provides a regulated 24V DC output at up to 1.88A. Its maximum rated output power is 45.1W, making it suitable for equipment that requires a 24V supply within that current limit.
What type of power adapter is the NGE45I24-P1J?
The NGE45I24-P1J is an AC-DC wall-mounted green adaptor with interchangeable AC plugs. It is a Class II power supply, which means it is designed without an earth pin.
What input voltage range does this adapter support?
This power supply supports universal input from 80 to 264VAC, and it also lists a 113 to 370VDC input range. That wide input range makes it suitable for use across regions where compatible interchangeable plugs and approvals are required.
What protections are built into the Mean Well NGE45I24-P1J?
This model includes short circuit, overload, and over voltage protection. The product data also states it passes LPS and uses automatic recovery behavior for applicable overload conditions.
Can this adapter be used in demanding temperature environments?
The NGE45I24-P1J is rated for operation from -30°C to +70°C. That wide working temperature range helps it fit industrial, commercial, and other environments where ambient conditions may be more demanding than standard indoor use.
What certifications or standards does this power supply support?
The listed safety coverage is broad and includes standards for ITE, medical, household, and industrial applications, including IEC62368-1, IEC60601-1, IEC60335-1, and IEC61558 series approvals. The specification also lists multiple regional approvals such as UL, CSA, DEKRA, PSE, BSMI, RCM, EAC, and CCC.
What are the size and efficiency highlights of this model?
This adapter has compact dimensions of 62 x 30 x 65 mm and an ultra-slim 28 mm profile is highlighted in the product features. It also meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W.
