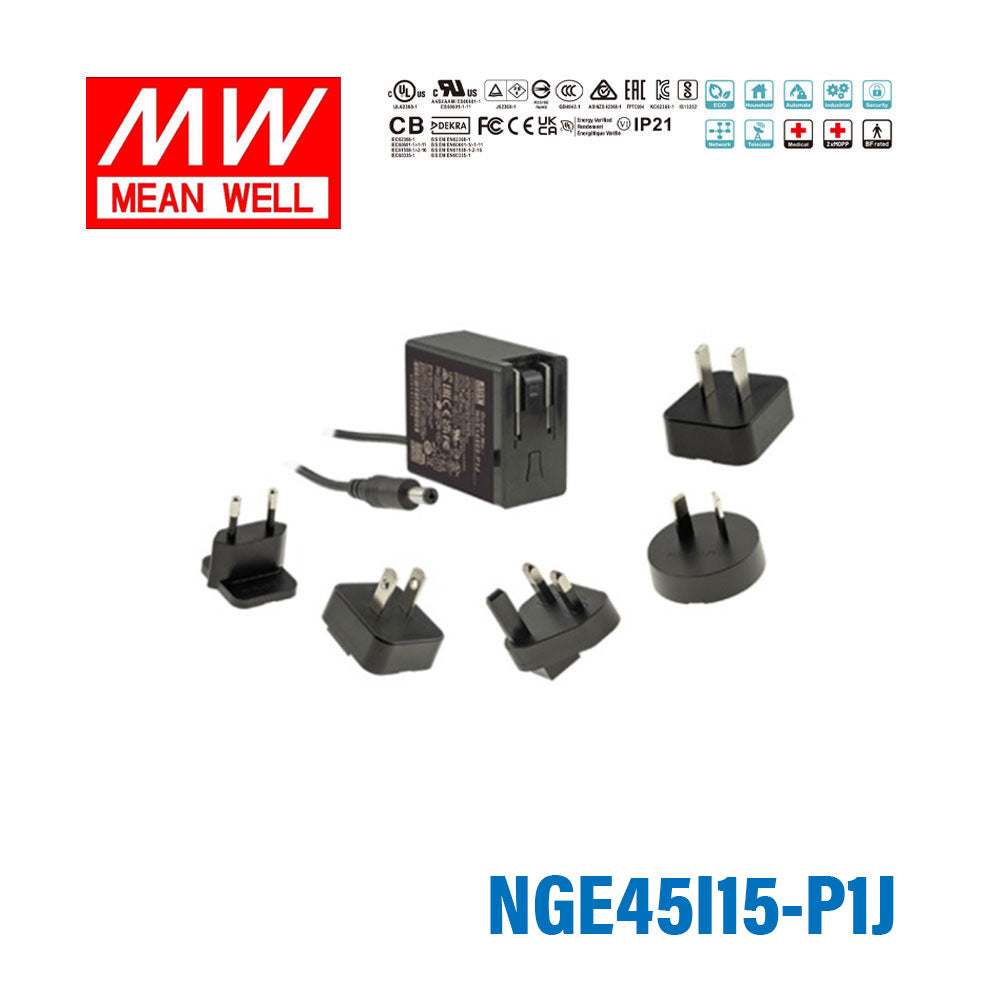

Mean Well NGE45I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 45W 15V 3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE45I15-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE45I15 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE45I15-P1J?
This model is a 45W AC-DC wall-mounted adaptor with a regulated 15V DC output rated at 3A. It is designed for applications that need this specific voltage and current combination from a compact external power supply.
What makes the NGE45I15-P1J suitable for international or multi-region use?
The NGE45I15-P1J supports universal AC input from 80 to 264VAC and uses interchangeable AC plugs. That makes it practical for OEM, commercial, and export applications where the same power adaptor may be used across different regions.
Is this adaptor intended for energy-efficient equipment?
Yes. This model meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those characteristics make it a strong choice for equipment where standby power reduction matters.
Can the NGE45I15-P1J be used in demanding temperature conditions?
It is rated for operation from -30°C to +70°C, which is a wide working temperature range for an external wall adaptor. This helps it fit industrial and commercial environments where ambient temperatures may vary significantly.
What safety and protection features are included in this power adaptor?
The NGE45I15-P1J includes short circuit, overload, and over-voltage protection. It also carries approvals across multiple standards and application fields, including ITE, medical, household, and industrial categories.
Is this model compatible with low-leakage or Class II equipment requirements?
This adaptor is a Class II power unit, so it does not require an earth pin, and it is specified with leakage current below 100uA. Those characteristics can make it a good fit for equipment categories where double insulation and very low leakage current are important.
