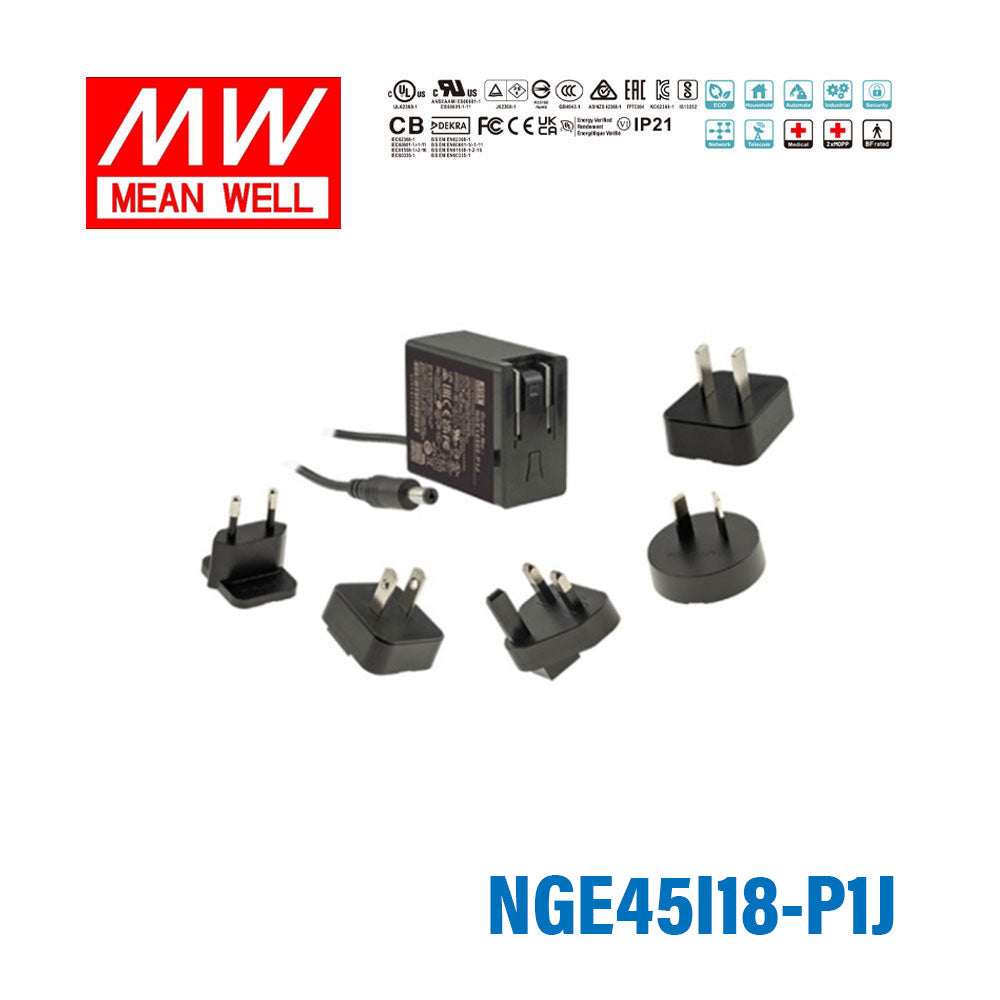

Mean Well NGE45I18-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 45W 18V 2.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE45I18-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE45I18 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating45 Watt
-
Output Voltage18 Volt
-
Rated Current2.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE45I18-P1J?
This model is a 45W AC-DC wall-mounted adaptor with a regulated 18V DC output and a rated current of 2.5A. It is intended for applications that need this specific voltage and current level from a compact external power supply.
What makes the NGE45I18-P1J a good choice for international or multi-region use?
The NGE45I18-P1J features interchangeable AC plugs and a universal input range of 80 to 264VAC. It also carries multiple international safety approvals, which makes it suitable for OEM and business use across different markets.
Is this adaptor designed for energy-efficient operation?
Yes. The NGE45I18-P1J meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. That makes it a strong option for applications where standby power and operating efficiency matter.
Can the Mean Well NGE45I18-P1J be used in demanding temperature conditions?
This adaptor has a working temperature range of -30°C to +70°C. That wide operating range helps support use in commercial or industrial environments where ambient temperatures may vary significantly.
What protections are built into the NGE45I18-P1J?
The unit includes short circuit, overload, and over-voltage protection. Mean Well also specifies LPS compliance and very low leakage current under 100uA, which can be important for safety-sensitive equipment categories.
What certifications and standards does this power adaptor support?
The NGE45I18-P1J is approved to a broad set of standards covering ITE, medical, household, and industrial categories, including IEC62368-1, IEC60601-1, IEC60335-1, and IEC61558-1/-2-16. This broad certification profile can simplify product selection when compliance requirements vary by application or region.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NGE45 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NGE45I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 45.1W 48V 0.94A | 45.1W | 48V | 0.94A | IP21 | $30.90 | View |
| Mean Well NGE45I24-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 45.1W 24V 1.88A | 45.1W | 24V | 1.88A | IP21 | $30.90 | View |
| Mean Well NGE45I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 45W 15V 3A | 45W | 15V | 3A | IP21 | $30.90 | View |
| Mean Well NGE45I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 45W 12V 3.75A | 45W | 12V | 3.75A | IP21 | $30.90 | View |
| Mean Well NGE45I09-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 40.5W 9V 4.5A | 40.5W | 9V | 4.5A | IP21 | $30.90 | View |
| Mean Well NGE45I05-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 28.1W 5V 5.63A | 28.1W | 5V | 5.63A | IP21 | $30.90 | View |
