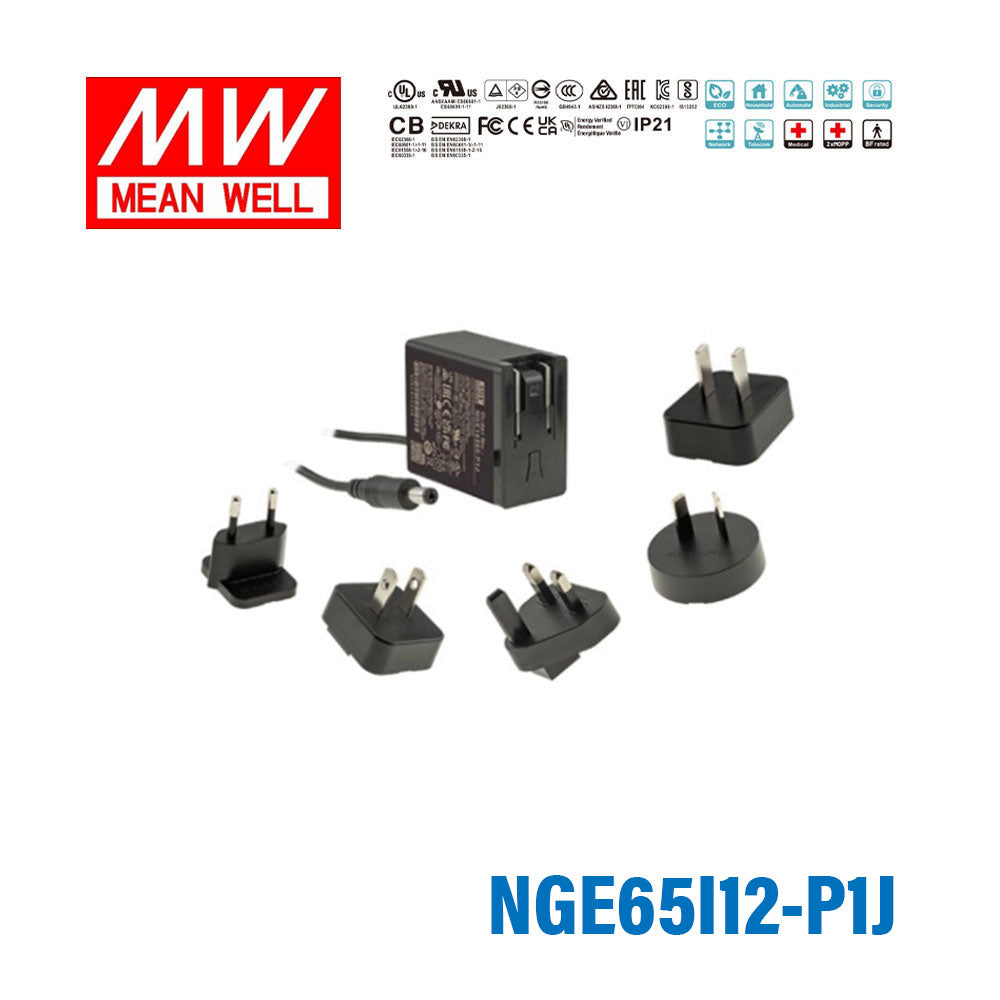

Mean Well NGE65I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 58.5W 12V 4.88A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE65I12-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE65I12 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating58.5 Watt
-
Output Voltage12 Volt
-
Rated Current4.88 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE65I12-P1J?
The Mean Well NGE65I12-P1J is a 12V AC-DC wall-mounted adaptor rated for up to 4.88A. Its maximum output power is 58.5W, making it suitable for equipment that requires a regulated 12V DC supply within that current limit.
What types of equipment is this 12V adaptor typically used for?
This model is intended for low-voltage electronic equipment that requires a 12V DC power source and draws no more than 4.88A. Because it carries approvals across ITE, medical, household, and industrial-related standards, it is often considered for a wide range of professional and commercial applications where those certifications matter.
How can I tell if the NGE65I12-P1J is compatible with my device?
Your device should require 12V DC input and operate within the adaptor's 4.88A maximum output current and 58.5W power rating. This model also supports various DC plug quick-adapter accessories, so compatibility depends on both the electrical rating and the required DC plug format.
Is the Mean Well NGE65I12-P1J suitable for international or wide-range input power?
Yes. This adaptor supports a universal AC input range of 80 to 264VAC, along with interchangeable AC plug capability, which makes it suitable for use across a broad range of input power environments. It is designed for global deployment where input voltage flexibility is important.
Can this adaptor be used in demanding temperature conditions?
The NGE65I12-P1J is rated for operation from -30°C to +70°C, which is a wide working temperature range for this product class. That makes it a strong option for environments where standard indoor-only adaptors may not be sufficient.
What protection and efficiency features does this model include?
This adaptor includes short circuit, overload, and over-voltage protection. It also meets Energy Efficiency Level VI and has very low no-load power consumption below 0.075W, which helps reduce standby energy use.
