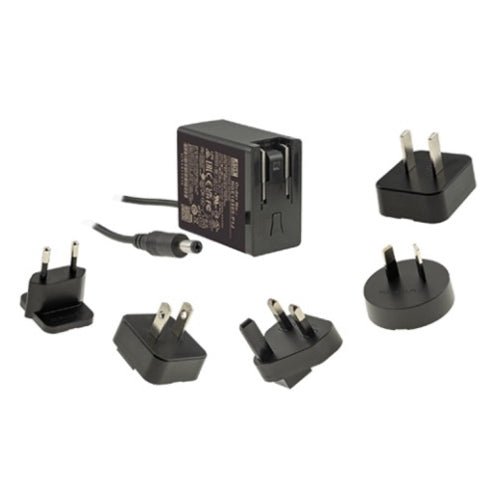

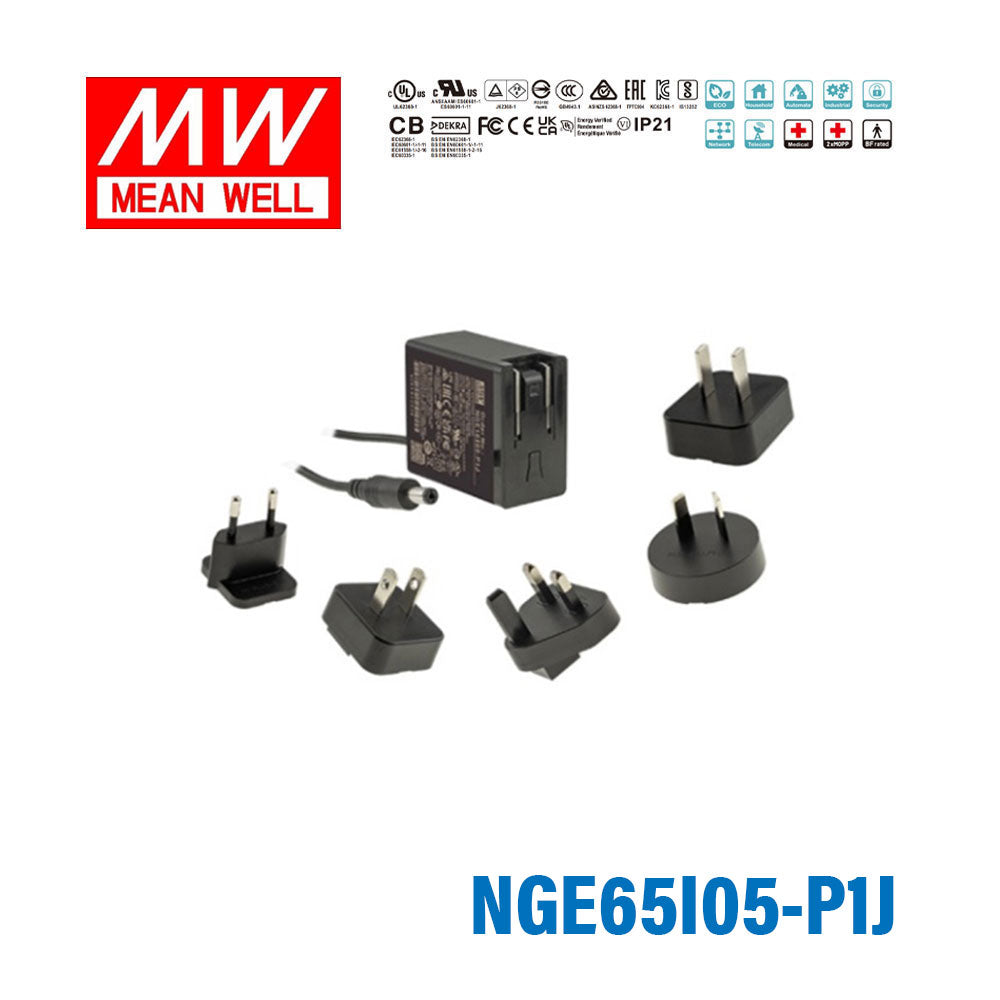

Mean Well NGE65I05-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 5V 6A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE65I05-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE65I05 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE65I05-P1J?
This model provides a regulated 5V DC output with a rated current of 6A. Its maximum power rating is 30W, making it suitable for equipment that requires higher current at 5V.
What type of power adapter is the NGE65I05-P1J?
The NGE65I05-P1J is an AC-DC wall-mounted green adaptor with interchangeable AC plugs. It is a Class II power supply with universal AC input, designed for broad international use where the appropriate plug option is available.
Is this adapter suitable for energy-efficient applications?
Yes. This model is rated to Energy Efficiency Level VI and has no-load power consumption below 0.075W. That makes it a good choice for applications where standby power draw matters.
Can the NGE65I05-P1J be used in demanding environments?
It is designed for a wide operating temperature range of -30°C to +70°C. The unit also includes protection against short circuit, overload, and over voltage, which supports use in more demanding commercial or industrial environments.
What certifications and standards does this power supply support?
This model is approved to multiple safety standards across ITE, medical, household, and industrial categories, including IEC62368-1, IEC60601-1, IEC60335-1, and IEC61558-1/-2-16. That broad certification coverage can help buyers sourcing for regulated or multi-market applications.
What are the physical size and form factor of this adapter?
The adapter measures 62 x 30 x 65 mm and has an ultra-slim 28 mm profile. Its wall-mounted format helps reduce desk or equipment-area clutter compared with larger external power supplies.
