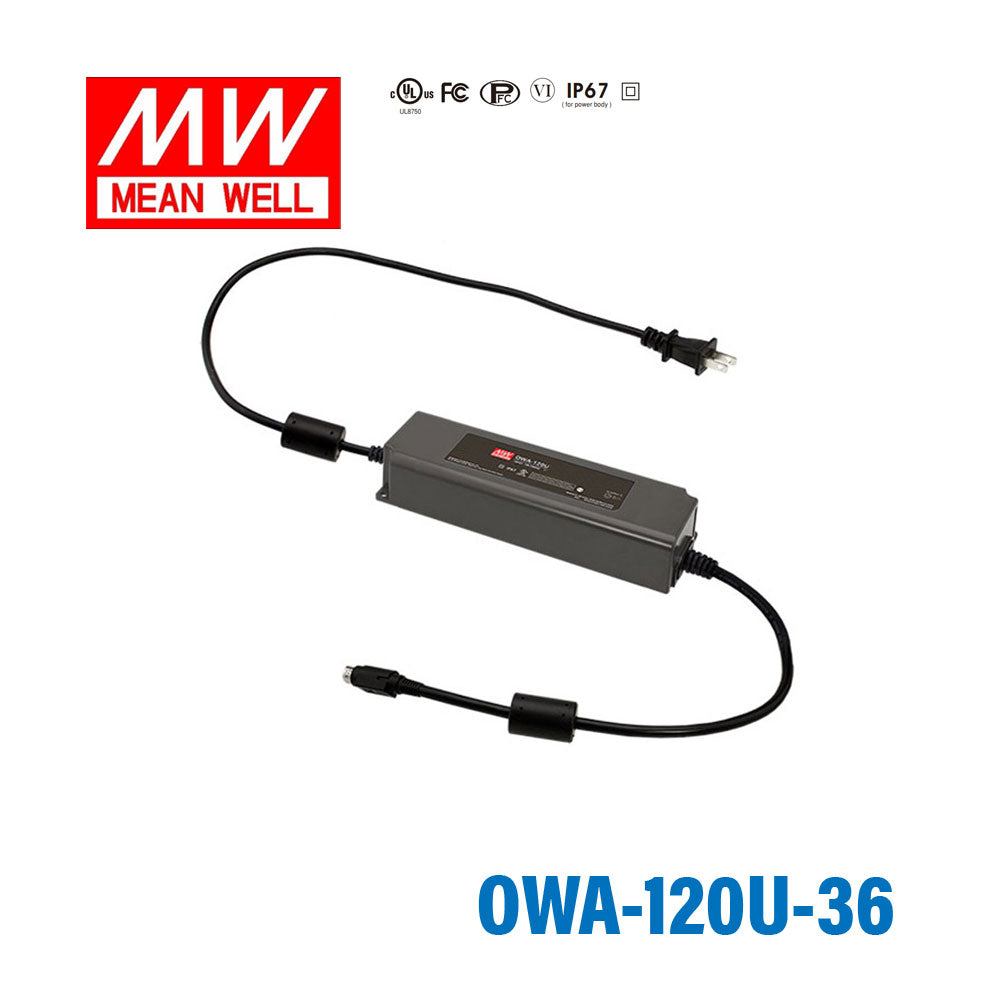

Mean Well OWA-120U-36 Power Supply Moistureproof 122.4W 36V
no load consumption < 0.15Wenergy efficieny level VIhigh efficiency up to 90.5%UL listed with North American type input
SKU:
OWA-120U-36
$53.15 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well OWA-120U-36 Power Supply Moistureproof 122.4W 36V
$53.15 USD
Unit price /
Unavailable
The OWA-120U is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ 191mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 listed, CSA C22.2 No. 250.13-12; IP67(for power body)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesOWA Series
-
Power Rating122.4 Watt
-
Output Voltage36 Volt
-
Rated Current3.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.54 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other OWA-120U Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well OWA-120U-54 Power Supply Moistureproof 124.2W 54V | 124.2W | 54V | 2.3A | IP67 | $53.15 | View |
| Mean Well OWA-120U-48 Power Supply Moistureproof 120W 48V | 120W | 48V | 2.5A | IP67 | $53.15 | View |
| Mean Well OWA-120U-42 Power Supply Moistureproof 121.8W 42V | 121.8W | 42V | 2.9A | IP67 | $53.15 | View |
| Mean Well OWA-120U-30 Power Supply Moistureproof 120W 30V | 120W | 30V | 4A | IP67 | $53.15 | View |
| Mean Well OWA-120U-24 Power Supply Moistureproof 120W 24V | 120W | 24V | 5A | IP67 | $53.15 | View |
| Mean Well OWA-120U-20 Power Supply Moistureproof 120W 20V | 120W | 20V | 6A | IP67 | $53.15 | View |
| Mean Well OWA-120U-15 Power Supply Moistureproof 120W 15V | 120W | 15V | 8A | IP67 | $53.15 | View |
| Mean Well OWA-120U-12 Power Supply Moistureproof 120W 12V | 120W | 12V | 10A | IP67 | $53.15 | View |
