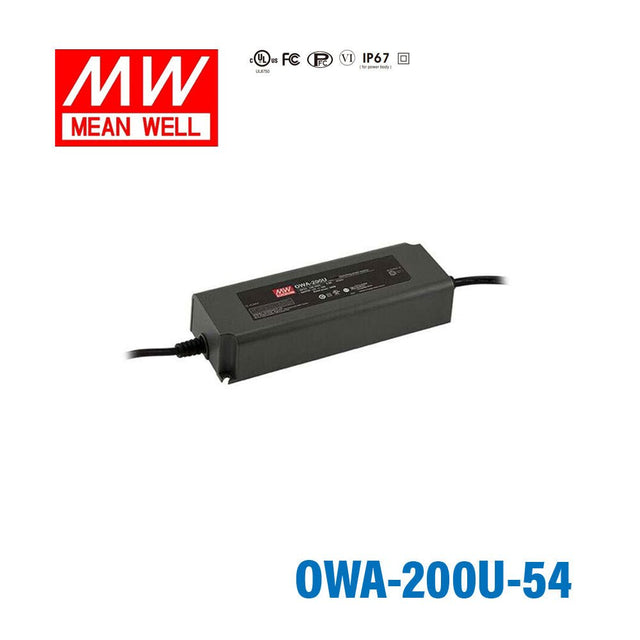

Mean Well OWA-200U-54 Power Supply Moistureproof 200W 54V
no load consumption < 0.15Wenergy efficieny level VIhigh efficiency up to 94%UL listed with North American type input
SKU:
OWA-200U-54
$56.73 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well OWA-200U-54 Power Supply Moistureproof 200W 54V
$56.73 USD
Unit price /
Unavailable
The OWA-200U is a 200W Mean Well DIN rail power converter with a 195mm profile (input range: 100~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ 195mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 100~264VAC
- ✓ 4.2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1; IP67(for power body)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesOWA Series
-
Power Rating200 Watt
-
Output Voltage54 Volt
-
Rated Current3.71 Ampere
-
Input Voltage100V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.91 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other OWA-200U Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well OWA-200U-48 Power Supply Moistureproof 200W 48V | 200W | 48V | 4.17A | IP67 | $56.73 | View |
| Mean Well OWA-200U-42 Power Supply Moistureproof 199W 42V | 199W | 42V | 4.75A | IP67 | $56.73 | View |
| Mean Well OWA-200U-36 Power Supply Moistureproof 199W 36V | 199W | 36V | 5.55A | IP67 | $56.73 | View |
| Mean Well OWA-200U-24 Power Supply Moistureproof 199W 24V | 199W | 24V | 8.3A | IP67 | $56.73 | View |
| Mean Well OWA-200U-20 Power Supply Moistureproof 200W 20V | 200W | 20V | 10A | IP67 | $56.73 | View |
| Mean Well OWA-200U-12 Power Supply Moistureproof 180W 12V | 180W | 12V | 15A | IP67 | $56.73 | View |
