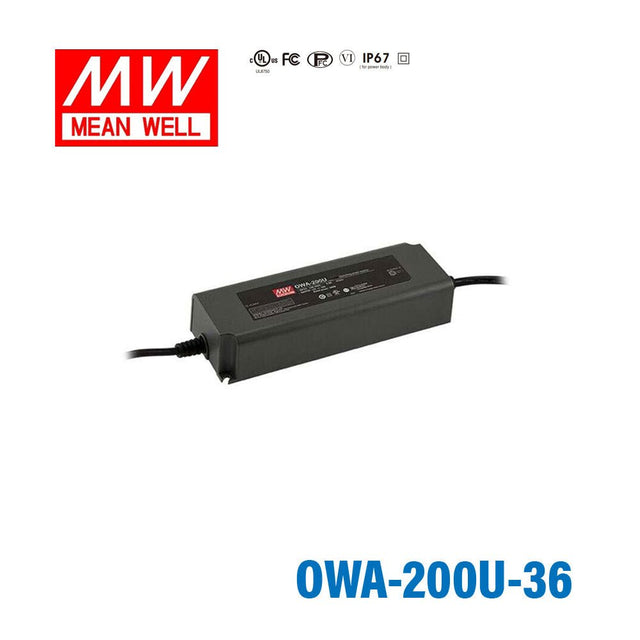

Mean Well OWA-200U-36 Power Supply Moistureproof 199W 36V 5.55A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well OWA-200U-36 Power Supply Moistureproof 199W 36V 5.55A
Overview
OWA-200U-36 is the 36V output model of this series: rated current 5.55A, rated power 199W, typical efficiency 91.5%.
OWA-200U is one 200W single-output external power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, OWA-200U, working like an adaptor, simplifies the connection with any electric device which needs waterproof function. The entire series is certified with the “UL LISTED” for dry and damp locations. As a class Ⅱ (no FG) design, the enclosure of OWA-200U is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up to 94%, OWA-200U is cooled by free air convection; the working temperature ranges from -40℃ to +70℃.
Features
- Universal AC input / Full range
- Class Ⅱ power unit, no FG
- Built-in active PFC function
- High efficiency up to 94%
- No load power consumption <0.15W
- Energy efficiency Level Ⅵ
- Comply with EU ErP and CoC Version 5
- Fully isolated plastic case with IP67
- Fanless design, cooling by free air convection
- Protections: Short circuit / Over current / Over voltage / Over temperature
- UL LISTED, suitable for dry and damp locations
- 5 years warranty

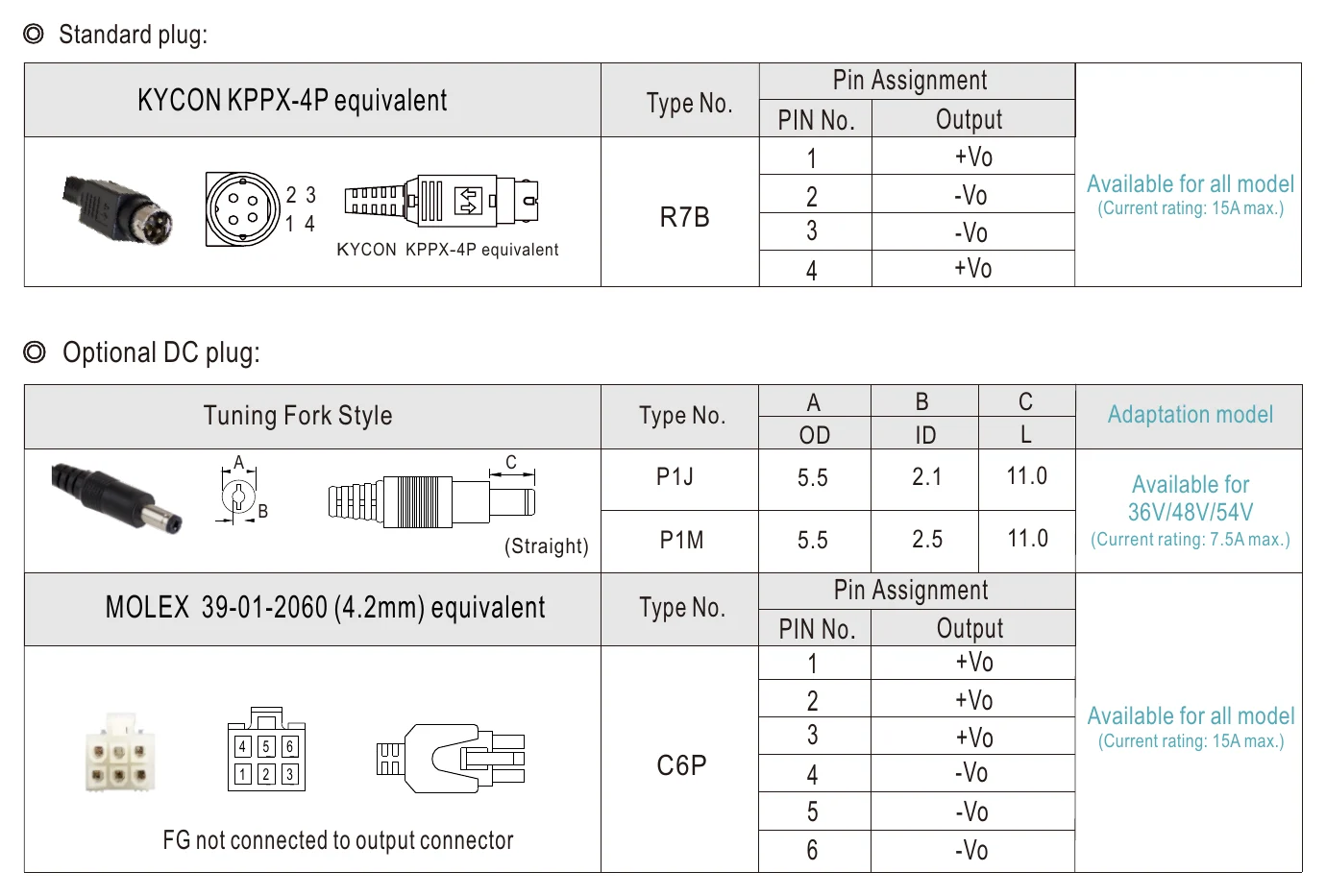

- Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
Specifications
OUTPUT
- DC VOLTAGE
- 36V
- RATED CURRENT
- 5.55A
- RATED POWER
- 199W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±3.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±3.0%
- SETUP, RISE TIMENote.4
- 500ms, 80ms 230VAC / 115VAC
- HOLD UP TIME (Typ.)
- 10ms at full load 230VAC / 115VAC
INPUT
- VOLTAGE RANGE
- 100 ~ 264VAC 142 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz

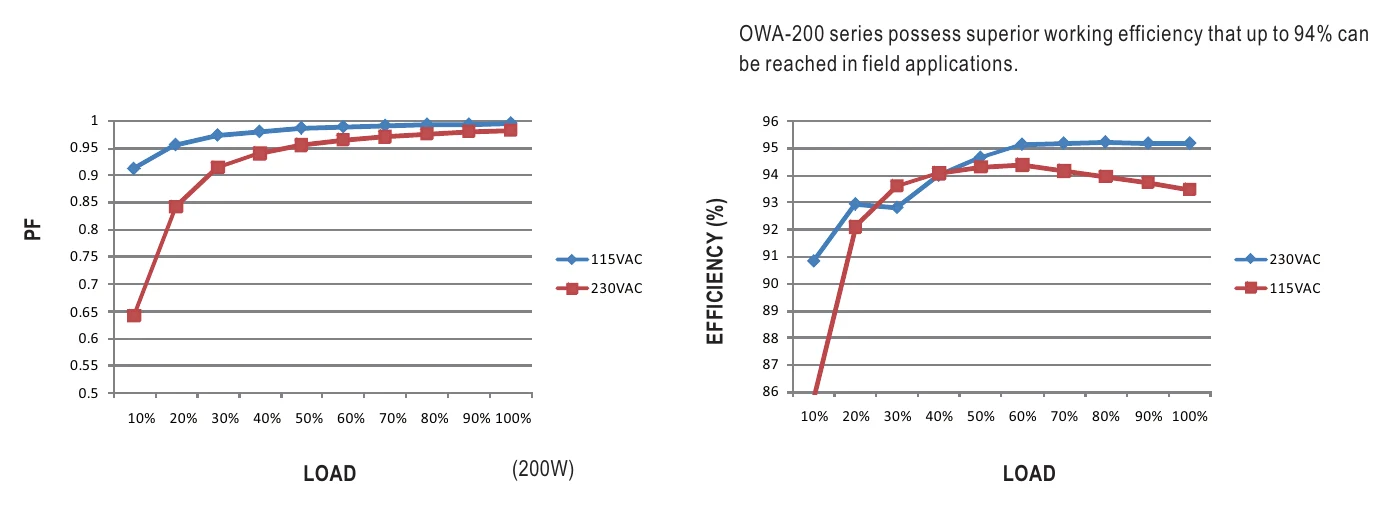

- POWER FACTOR (Typ.)
- PF>0.97/115VAC, PF>0.96/230VAC at full load
- EFFICIENCY (Typ.) 115VAC
- 91.5%
- EFFICIENCY (Typ.) 230VAC
- 94%
- AC CURRENT (Typ.)
- 2.2A / 115VAC 1.1A / 230VAC
- INRUSH CURRENT (Typ.)
- COLD START 90A(twidth=300μs measured at 50% Ipeak) at 115VAC COLD START 180A(twidth=450μs measured at 50% Ipeak) at 230VAC
- LEAKAGE CURRENT
- <0.125mA / 120VAC <0.25mA / 240VAC
- NO LOAD CONSUMPTION
- <0.15W
PROTECTION
- OVER CURRENT
- 105% ~ 150% Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 41 ~ 49V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

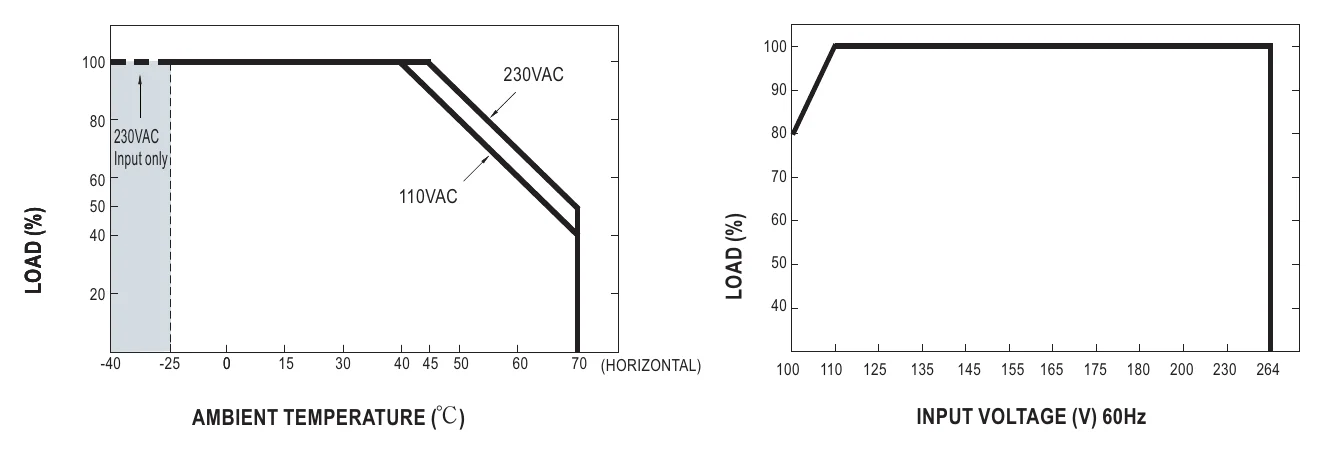

- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1; IP67(for power body) approved; Design refer with UL1012
- WITHSTAND VOLTAGE
- I/P-O/P:4.2KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to FCC Part15
OTHERS
- MTBF
- 2680.8K hrs min. Telcordia SR-332 (Bellcore) 268.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 195*68*39.5mm
- PACKING
- 1.32Kg; 9 pcs/ 11.74 Kg/ 0.79 CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. For battery charging purpose had better operation with a BMS controller.

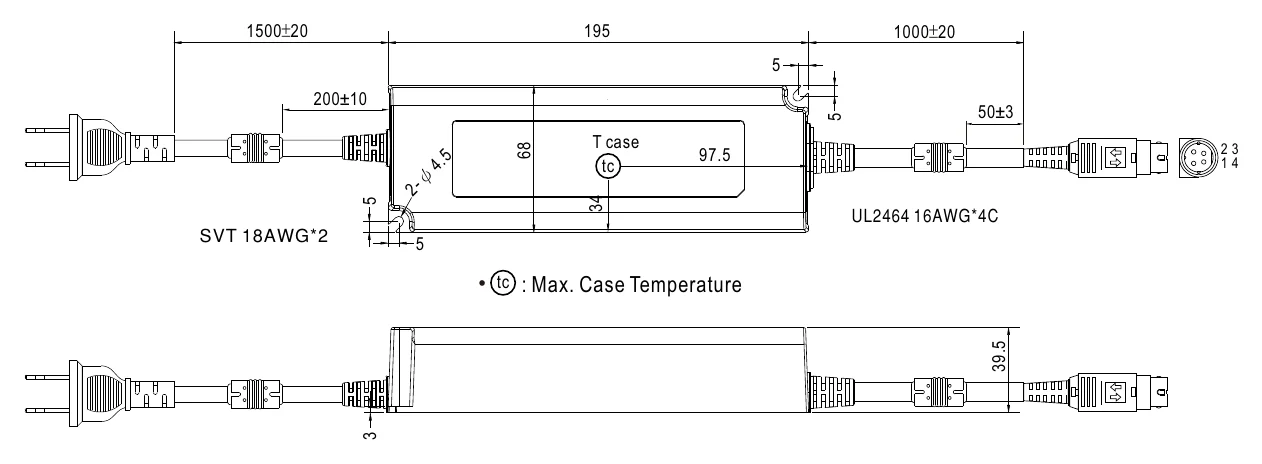

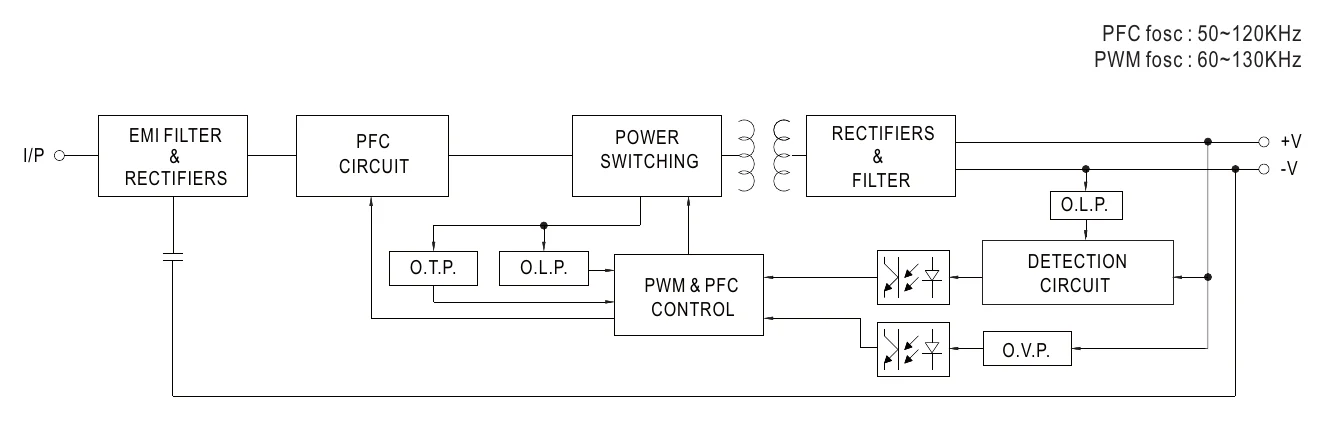

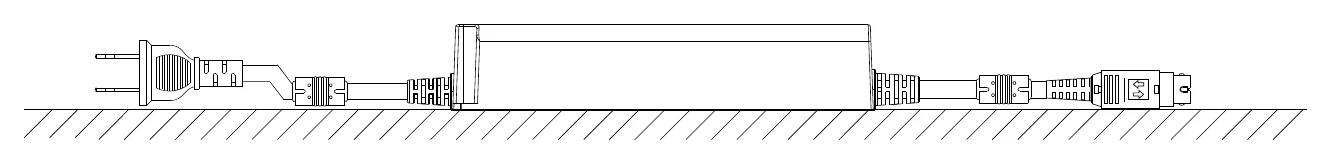

Technical drawings
Typical applications
- Industrial field PC adaptor
- POS or KIOSK system
- Portable Battery charger
- Electric Lawn mower charger
- General electronic products in dusty or humid environment
- Household Device
Downloads
Datasheet1
