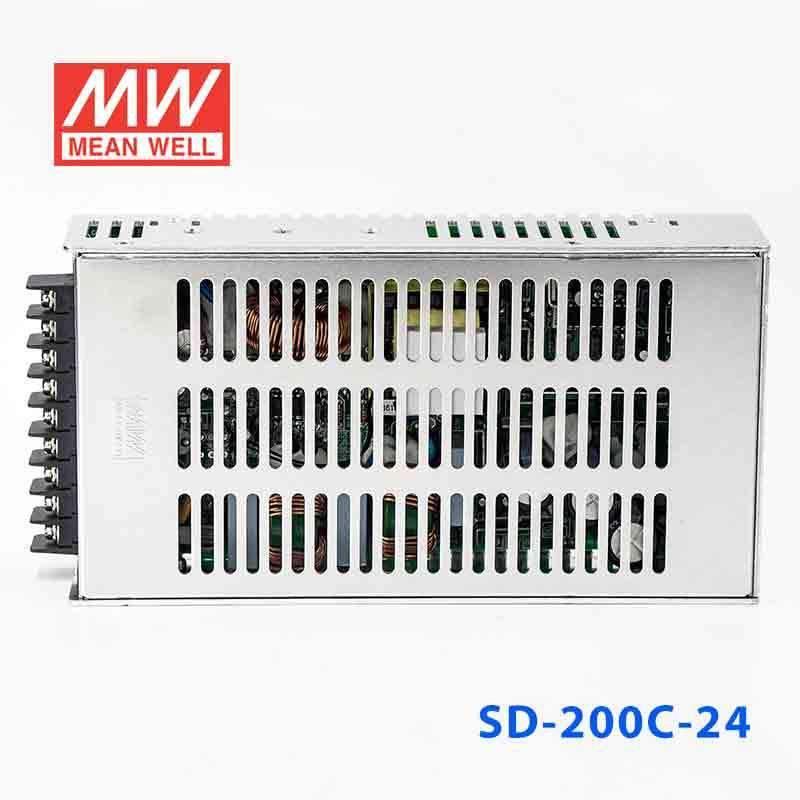

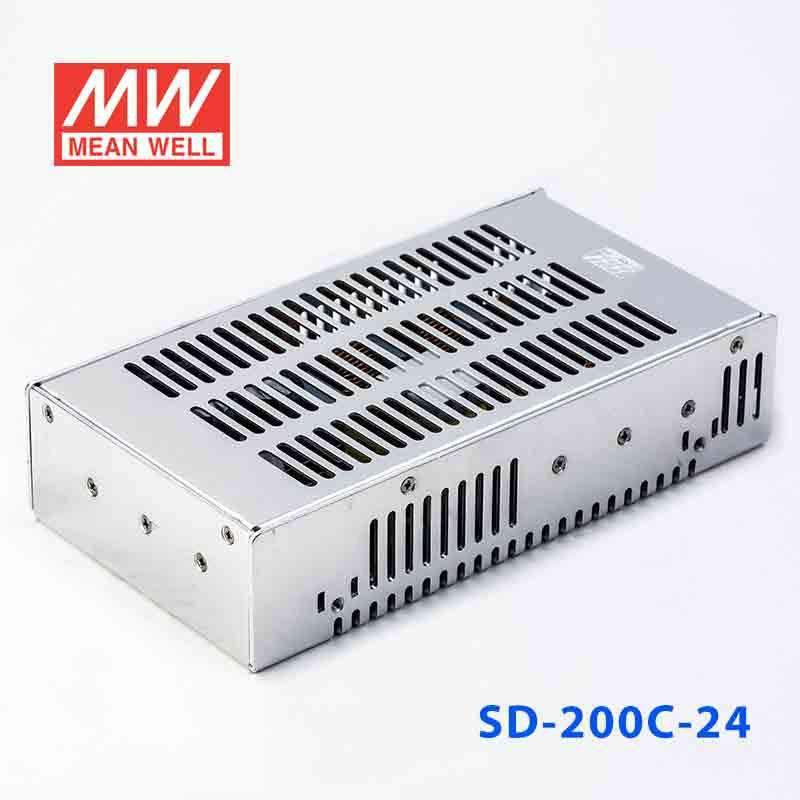

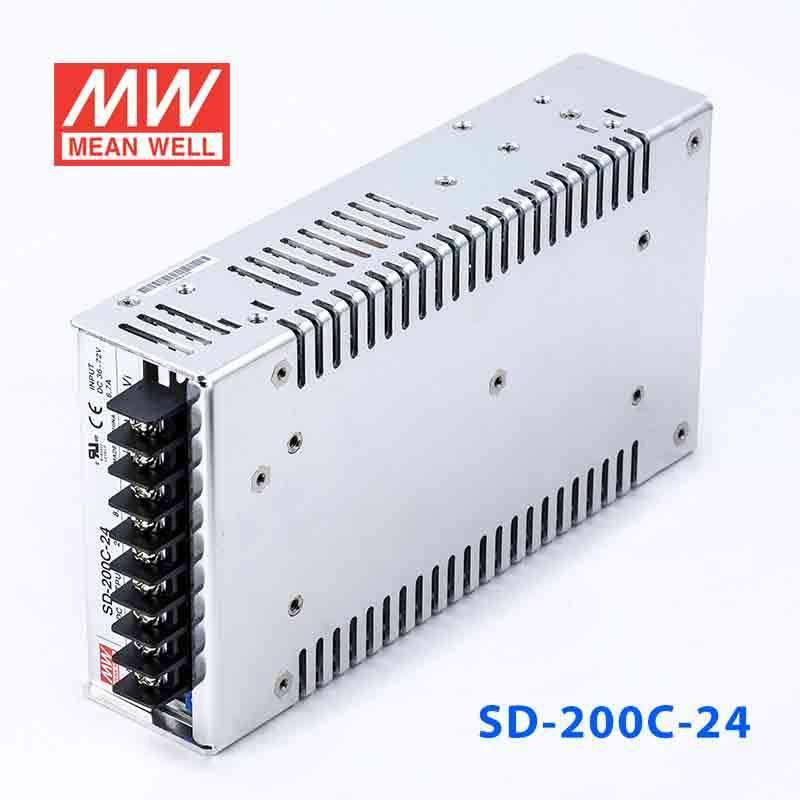

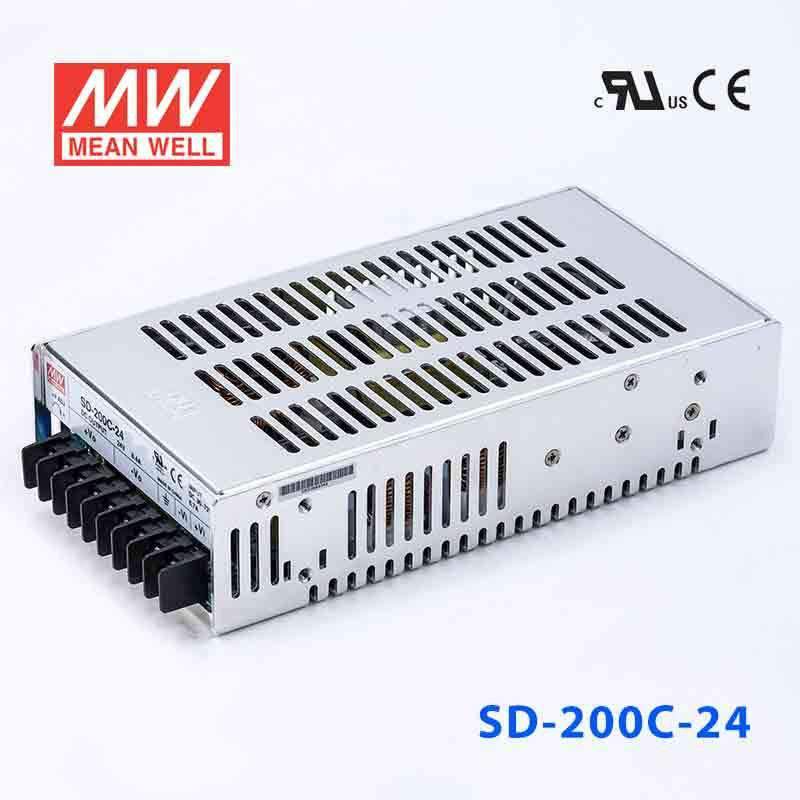

Mean Well SD-200C-24 DC-DC Converter - 200W - 36~72V in 24V out 16.7A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-200C-24 DC-DC Converter - 200W - 36~72V in 24V out 16.7A
The SD-200C is a 200W Mean Well power converter (input range: 4.5~5.5VDC).
Key Features
- ✓ Input voltage range: 4.5~5.5VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating200.4 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetUL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use this converter for a 12V industrial control system on a 36-72VAC source?
Yes, it can fit a 12V constant-voltage control load when the input source is within 36-72VAC. The output is rated for up to 16.7A and 200.4W, so the full control system needs to stay within that power budget.
Is this suitable for a 12V HMI and accessory load in an automation cabinet?
It can support a 12V HMI plus related accessories if their combined draw stays at or below 16.7A and 200.4W. This model is designed for constant-voltage output, which is appropriate for equipment expecting a fixed 12V supply.
Will this work for a 12V embedded controller in industrial or IT equipment?
It is a fit for a 12V embedded controller or similar electronics when the source is 36-72VAC and the load remains within 16.7A and 200.4W. That makes it more suitable for moderate-power 12V systems than very small point loads.
Is the SD-200C-24 meant for indoor or outdoor conditions?
The operating temperature range is -20°C to +60°C, so the temperature spec covers a broad indoor equipment range. No IP rating is provided, so it is better matched to protected indoor enclosures than exposed outdoor installations.
How does the SD-200C-24 compare with the other SD-200C versions?
Within the SD-200C group shown here, SD-200C-12 is listed at 200W, 5V, 40A; SD-200C-24 at 200.4W, 12V, 16.7A; SD-200C-48 at 201.6W, 24V, 8.4A; and SD-200C-5 at 201.6W, 48V, 4.2A. The family stays around 200W, while the output voltage and current change by model.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SD-200C Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-200C-5 DC-DC Converter - 200W - 36~72V in 5V out 4.2A | 201.6W | 48V | 4.2A | Indoor | $82.90 | View |
| Mean Well SD-200C-48 DC-DC Converter - 200W - 36~72V in 48V out 8.4A | 201.6W | 24V | 8.4A | Indoor | $82.90 | View |
