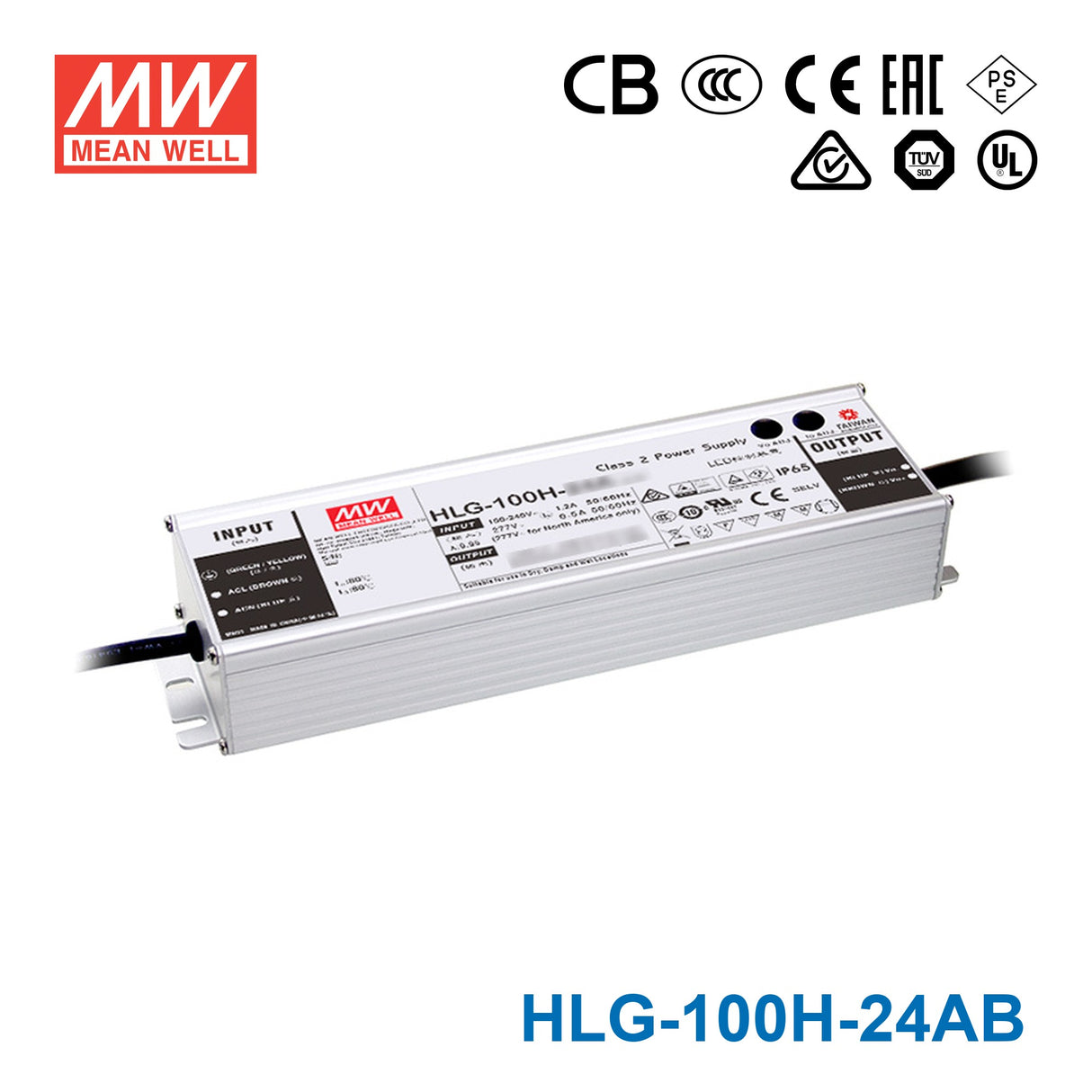

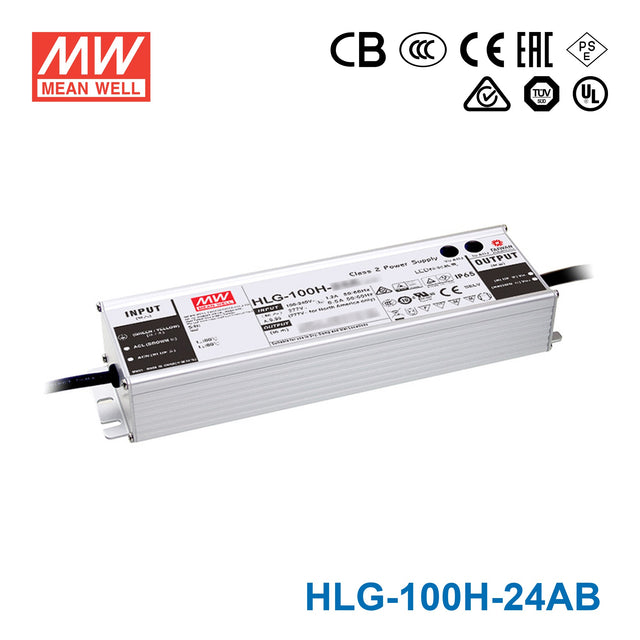

Mean Well HLG-100H-24AB Power Supply 100W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-100H-24AB Power Supply 100W 24V - Adjustable and Dimm...
The HLG-100H is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I pair with the HLG-100H-24AB to a building automation system for dimmed 24V LED lighting?
Yes. The HLG-100H-24AB accepts 1-10V and PWM dimming signals, which are standard outputs from most building automation and smart lighting controllers. It delivers up to 100W at 24V with both dimming and manual output adjustment for maximum flexibility.
Is the HLG-100H-24AB suitable for dimmable 24V under-cabinet LED strip in a commercial kitchen?
Yes, with caveats. Its IP65 rating handles splashing water and steam, and the dimming input lets staff adjust brightness as needed. However, for areas with direct high-pressure washdown, additional enclosure protection is advisable. The 100W capacity easily covers typical under-cabinet strip runs.
Can the HLG-100H-24AB power dimmable 24V LED cove or accent lighting?
Yes. The combination of 1-10V/PWM dimming and a built-in output adjustment potentiometer makes it ideal for architectural accent lighting where you need precise, smooth brightness control. It supplies up to 100W at 24V with a CC range of 12-24V.
How many meters of 24V LED strip can the HLG-100H-24AB drive?
Divide the 100W capacity by your strip's rated wattage per meter. For a 24V strip drawing 9.6W/m, the maximum run is about 10.4 meters (100W / 9.6W per meter). Always verify your strip's rated power per meter and keep the total under 100W.
Where can I mount the HLG-100H-24AB — is it safe for a damp utility room?
Yes. IP65 protects fully against dust and low-pressure water jets, making it fine for damp utility rooms, covered outdoor areas, and sheltered installations. For fully exposed outdoor mounting with risk of standing water or submersion, step up to the IP67-rated HLG-100H-24B.
