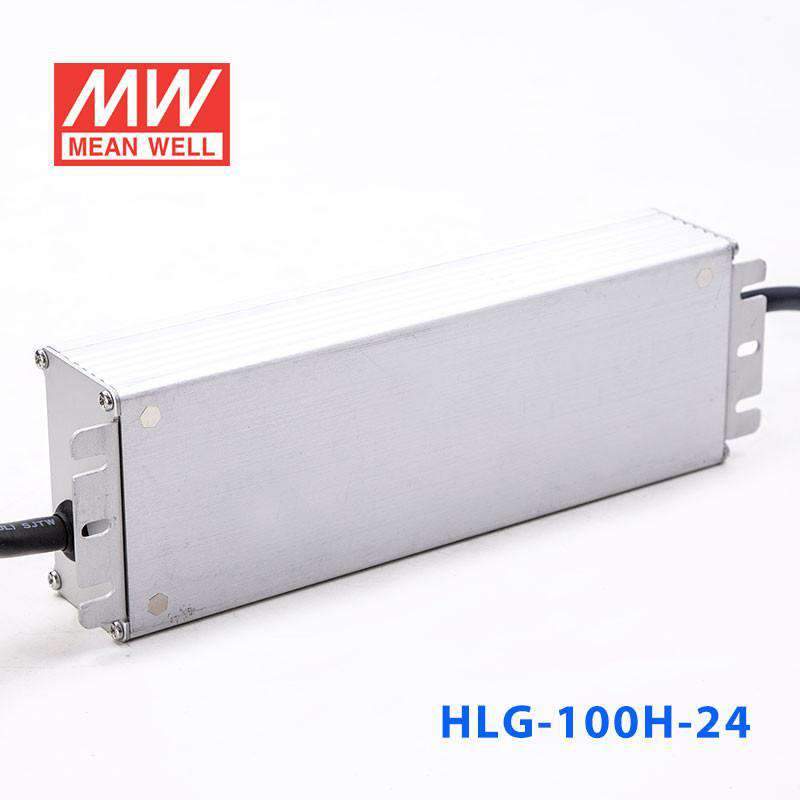

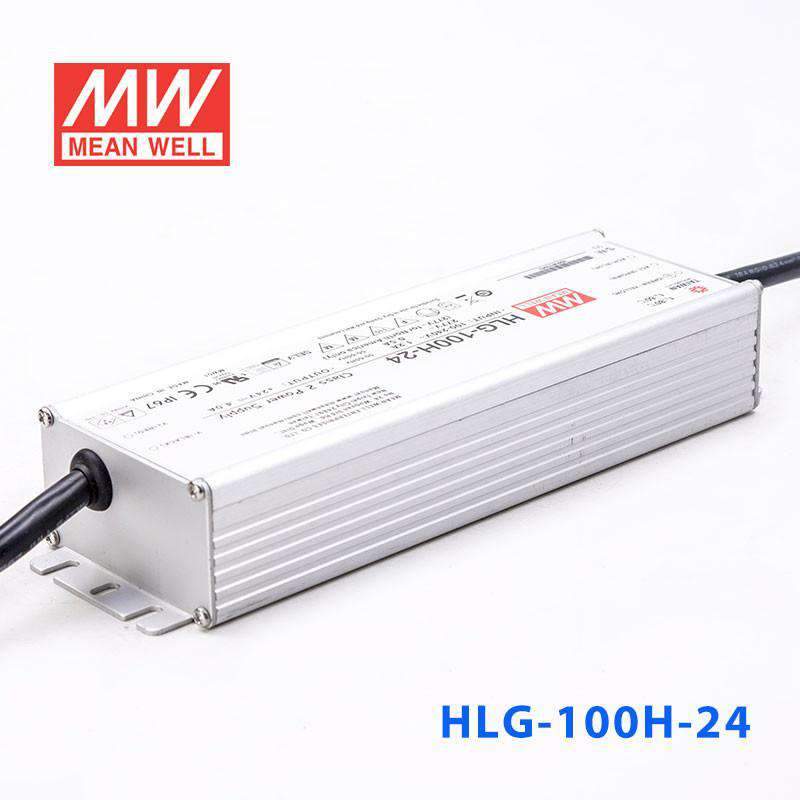

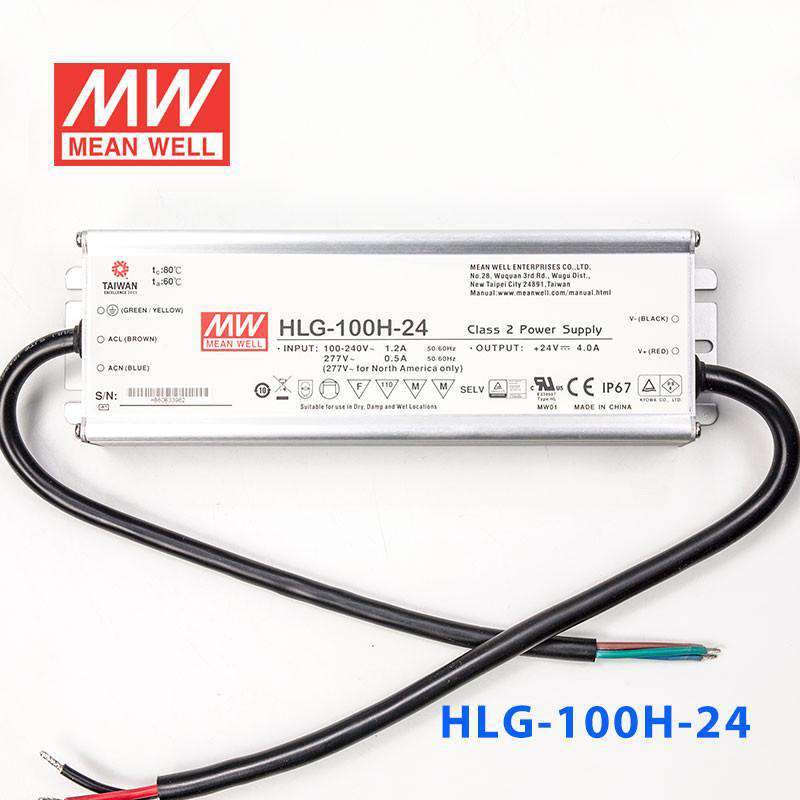

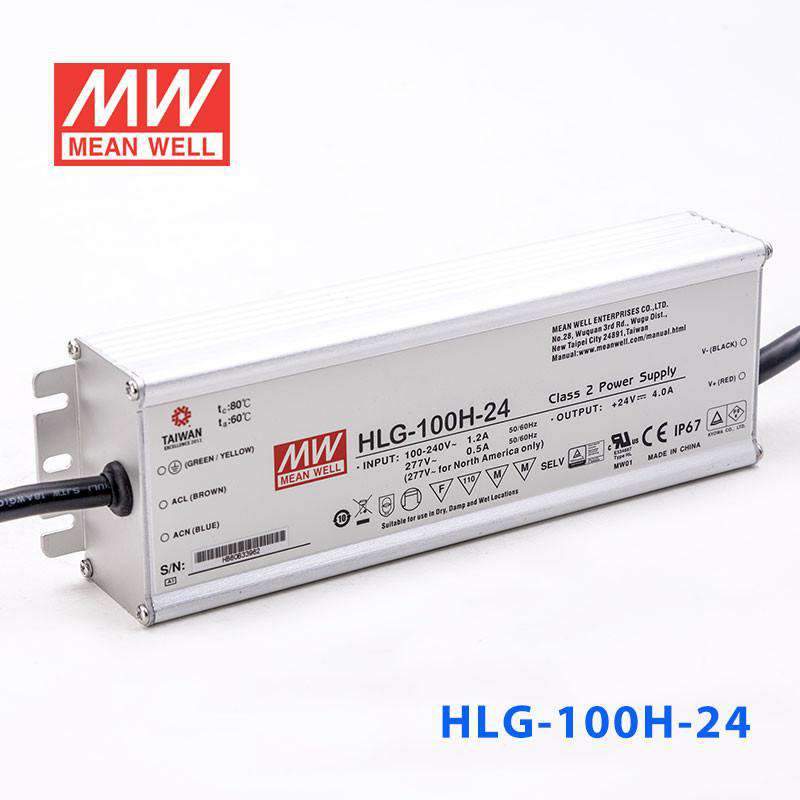

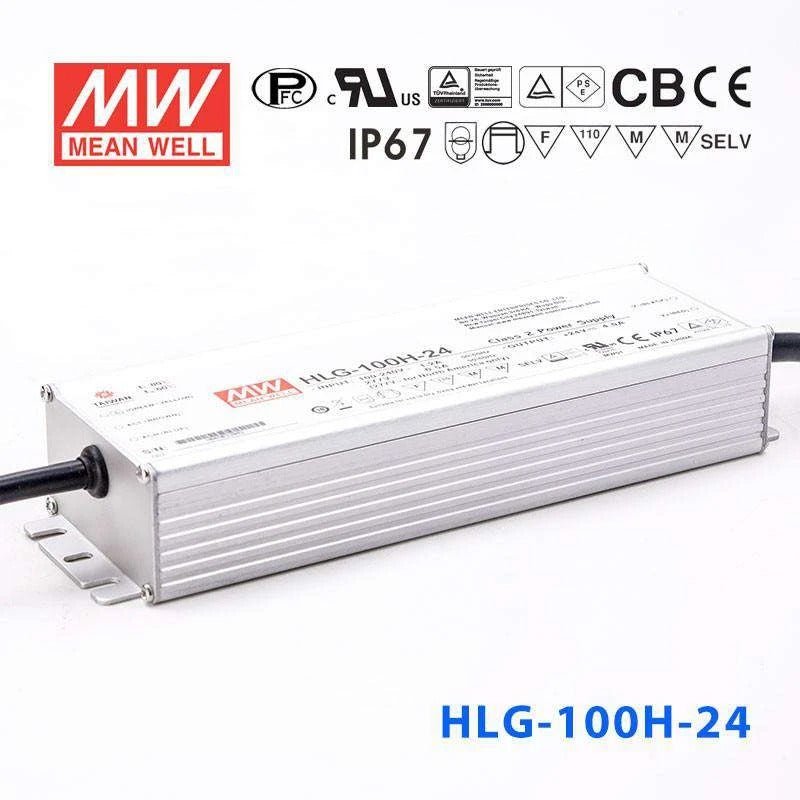

Mean Well HLG-100H-24 Power Supply 100W 24V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 93.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit / Pass LPS |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 100W/120W) |
| Optional CQC models available (A/Blank type) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 50ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved, ENEC EN61347-1, Design refer to UL60950-1, EN60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 220x 68x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-100H-24 to power 24V LED strip lighting outdoors?
Yes. The HLG-100H-24 delivers 24V at up to 4A (100W) and has an IP67 waterproof rating, making it suitable for outdoor 24V LED strip runs exposed to rain, snow, or washdown. Its -40°C to +80°C operating range covers most climates.
Is the HLG-100H-24 a good driver for 24V LED channel-letter signage?
Yes. 24V is one of the most common voltages for channel-letter LED modules, and the HLG-100H-24 provides 100W at that voltage. Its IP67 enclosure and wide 90-305VAC input make it a reliable choice for outdoor sign cabinets worldwide.
Can I power 24V constant-voltage LED panels with the HLG-100H-24?
The HLG-100H-24 operates in constant-current mode with a CC voltage range of 12-24V. It is designed for LED loads that regulate via current rather than voltage. Verify that your LED panels are compatible with constant-current drive before using this supply.
How many meters of 24V LED strip can the HLG-100H-24 power?
Divide the 100W maximum by the strip's rated power per meter. For example, a 24V strip consuming 14.4W/m would allow roughly 6.9 meters (100W / 14.4W per meter). Check your strip's rated power per meter and ensure the total draw does not exceed 100W.
Can the HLG-100H-24 be used in freezing outdoor conditions?
Yes. It is rated for operation down to -40°C, so it handles sub-zero winter environments without issue. The IP67 waterproof casing also protects against ice, snow, and condensation buildup.
How does the HLG-100H-24 compare to other voltage options in the HLG-100H series?
The HLG-100H series offers the same 100W power in voltages from 20V to 54V. The -24 model outputs 24V at 4A, while the -20 gives 20V at 4.8A and the -36 gives 36V at 2.65A, for example. All share the same physical dimensions (220 x 68 x 38.8 mm) and the same IP67/IP65 ratings depending on suffix. Choose the voltage that matches your LED load.
