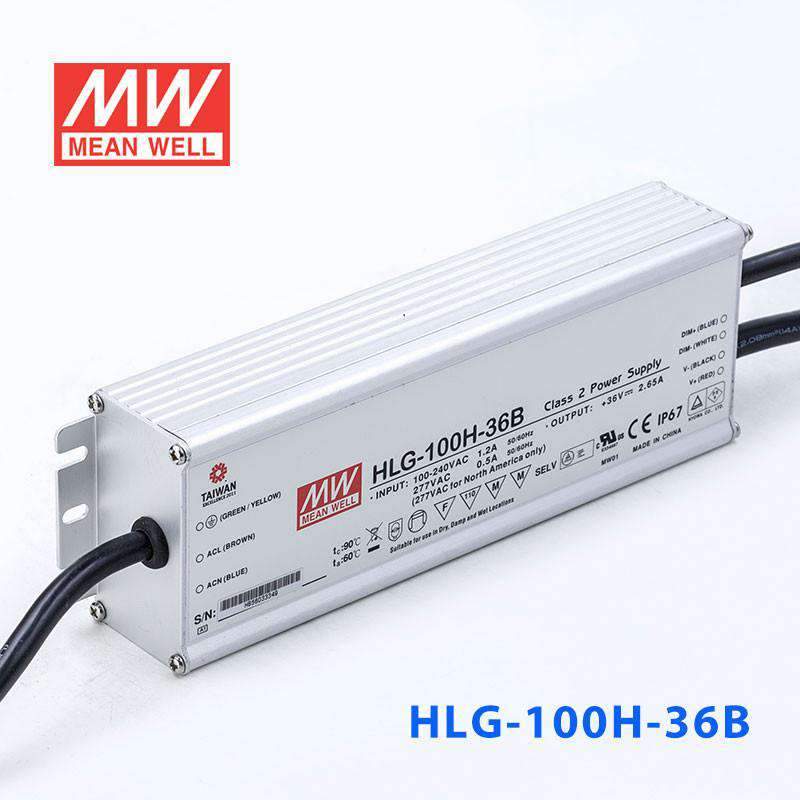

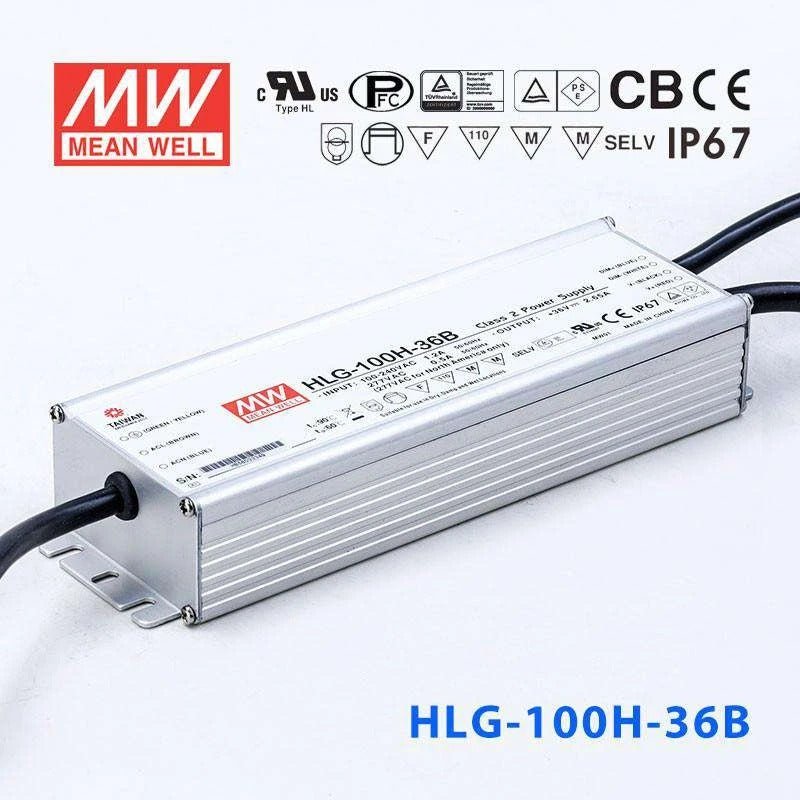

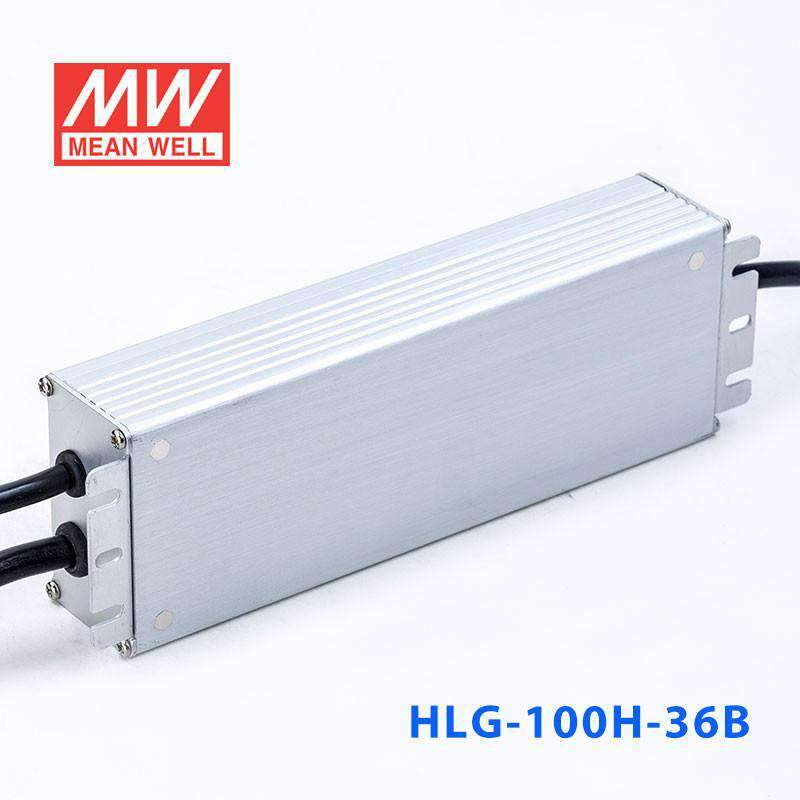

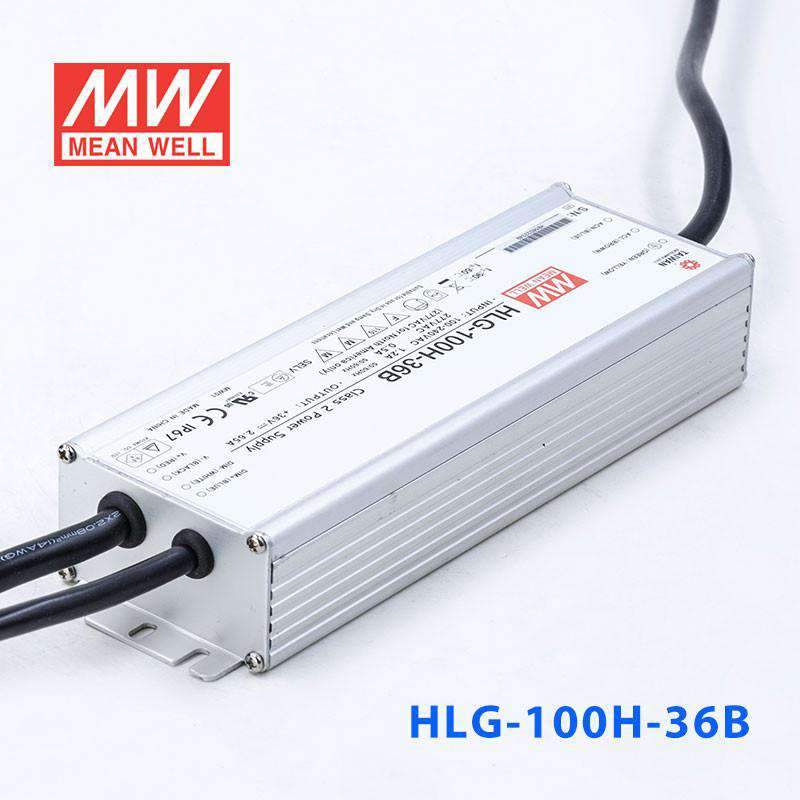

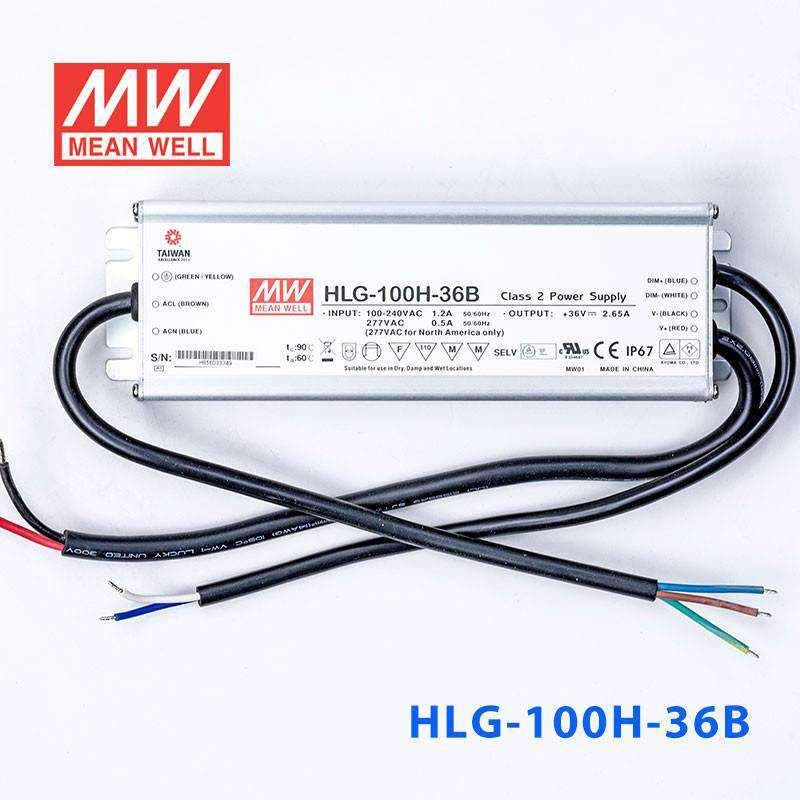

Mean Well HLG-100H-36B Power Supply 100W 36V - Dimmable
The HLG-100H is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating100 Watt
-
Output Voltage36 Volt
-
Rated Current2.65 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HLG-100H-36B for outdoor dimmable 36V LED pathway lighting?
Yes. The HLG-100H-36B delivers 36V at up to 2.65A (100W) with dimming capability and an IP67 waterproof rating. This makes it ideal for in-ground or pole-mounted pathway lighting where the driver is exposed to weather and the installation requires brightness control for nighttime dimming schedules.
Is the HLG-100H-36B suitable for dimmable 36V LED parking lot fixtures?
It works well for 36V LED parking lot luminaires up to 100W. The dimming input allows scheduled brightness reduction during off-peak hours to save energy, and the IP67 waterproof housing handles rain, snow, and temperature swings from -40°C to +80°C without an additional enclosure.
Can I use the HLG-100H-36B for dimmable 36V LED marine or dock lighting?
The IP67 waterproof rating makes the HLG-100H-36B a practical choice for dock and marine-adjacent lighting. It withstands temporary submersion and salt air exposure. At 100W and 36V with dimming, it supports dock walkway or boat slip lighting with brightness control.
What is the maximum 36V LED strip length the HLG-100H-36B can support?
The HLG-100H-36B supplies 100W at 36V. For a strip consuming 12W per meter, the maximum run would be approximately 8.3 meters (100W / 12W per meter). A more efficient strip at 6W/m could extend to about 16.6 meters. Always check your strip's rated power per meter.
How does the HLG-100H-36B perform in freezing outdoor conditions?
The HLG-100H-36B is rated for -40°C to +80°C operation, so it handles freezing conditions well. The IP67-sealed aluminium enclosure prevents moisture from freeze-thaw cycles causing internal damage. Its 7-year warranty reflects the durability expected in harsh outdoor environments.
