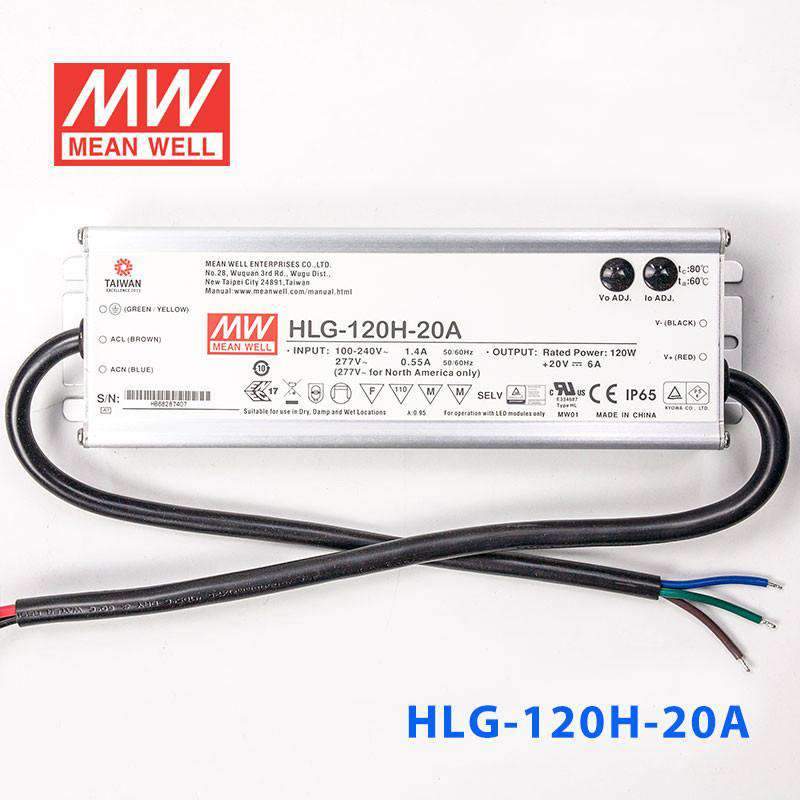

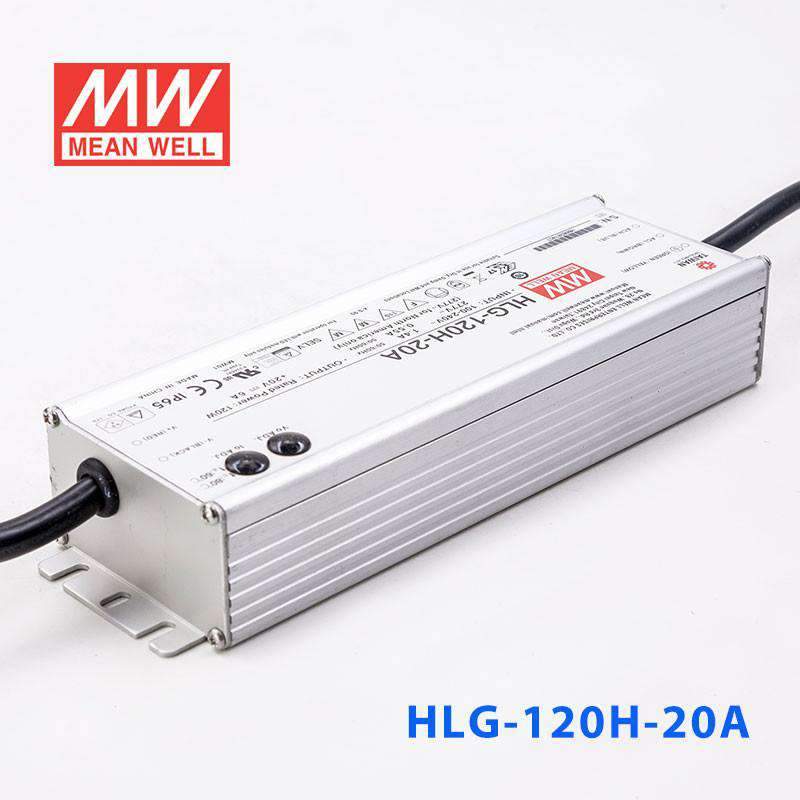

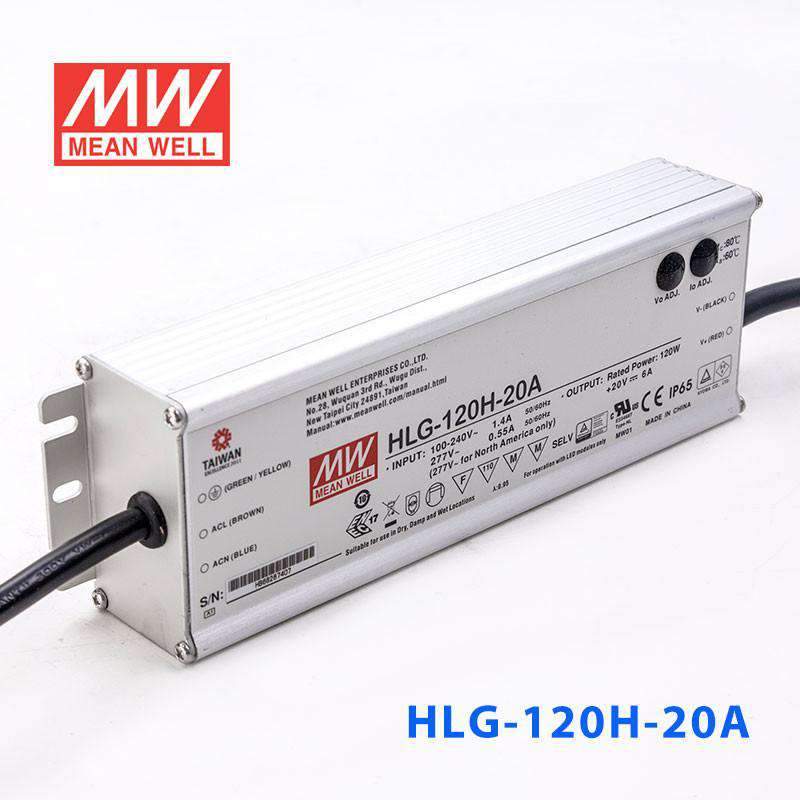

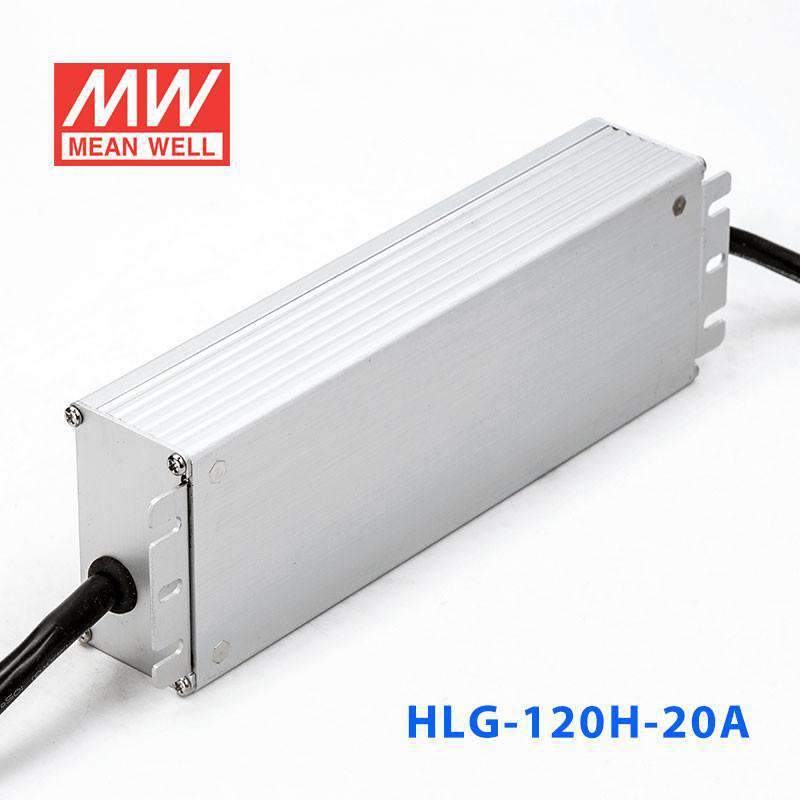

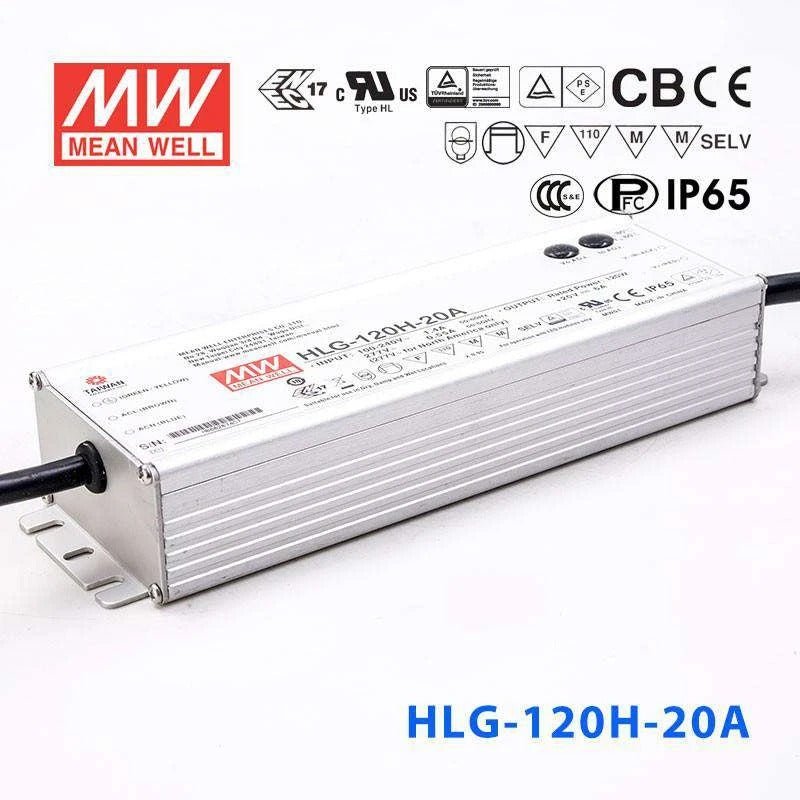

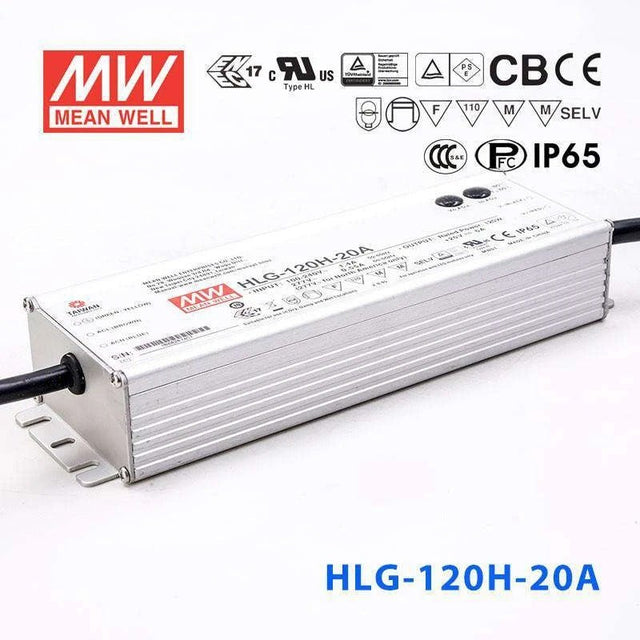

Mean Well HLG-120H-20A Power Supply 120W 20V - Adjustable
The HLG-120H is a 120W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating120 Watt
-
Output Voltage20 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HLG-120H-20A for 20V LED strip lighting where I need to fine-tune brightness?
Yes. The HLG-120H-20A outputs 20V at up to 6A (120W) with a built-in potentiometer that lets you adjust the output voltage and current. This is useful when your 20V LED strips need a slightly lower drive level for optimal brightness or heat management. Note that it is rated IP65, so it suits sheltered outdoor or indoor use.
Is the HLG-120H-20A a good fit for adjustable 20V LED signage drivers?
Yes. The adjustable output lets you match the driver to specific 20V LED sign modules that may need current tuning, and 120W is sufficient for small to medium sign arrays. The IP65 rating works well when the driver is housed inside a weatherproof sign cabinet or enclosure.
Can I use the HLG-120H-20A to power 20V LED linear fixtures in a commercial space?
It is a suitable choice for indoor commercial environments such as offices, retail, or hospitality lighting using 20V LED linear fixtures. The adjustable output lets you fine-tune the constant-current drive within the 10-20V range. Total combined fixture load must not exceed 120W.
How many meters of 20V LED strip can the HLG-120H-20A power?
The HLG-120H-20A provides 120W at 20V. Divide 120W by your strip's rated wattage per meter. For a strip rated at 10W/m, that allows up to 12 meters (120W / 10W per meter = 12m). Always check your strip's rated power per meter and keep total load at or below 120W.
Is the HLG-120H-20A suitable for exposed outdoor mounting?
The HLG-120H-20A is rated IP65, which protects against dust and low-pressure water jets but not submersion. It works well in sheltered outdoor locations under canopies, inside enclosures, or under eaves. For fully exposed outdoor sites with standing water or heavy rain risk, the IP67-rated HLG-120H-20 or HLG-120H-20B is a better choice.
What does the 'A' suffix mean on the HLG-120H-20A compared to the base HLG-120H-20?
The 'A' suffix indicates the model includes a built-in potentiometer for adjusting output voltage and current. The base HLG-120H-20 has fixed output. The A variant carries an IP65 water-resistant rating instead of the base model's IP67 waterproof rating. Both deliver the same 120W, 20V, 6A output at their default settings.
