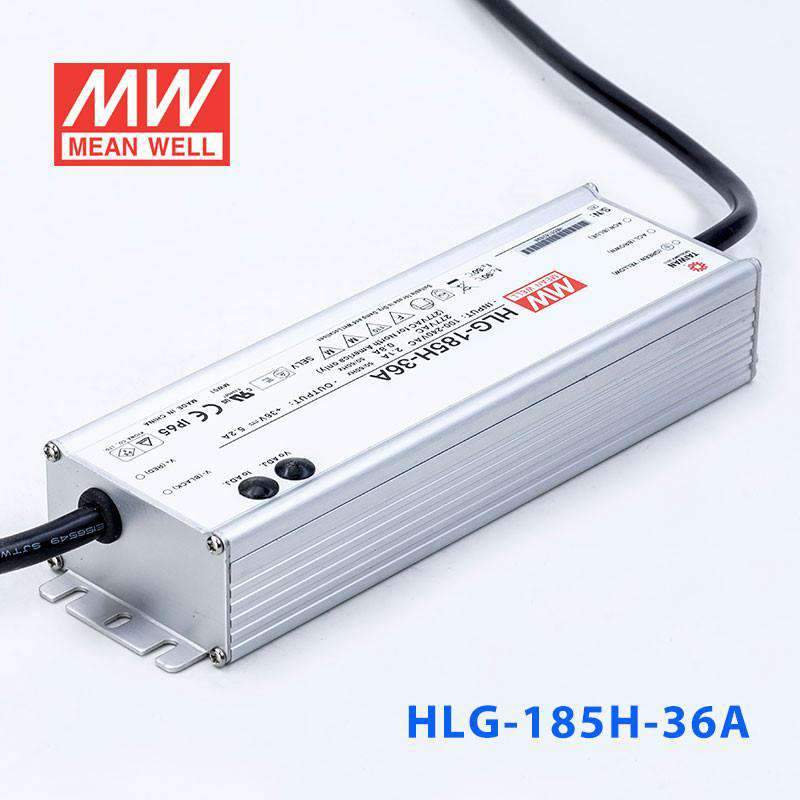

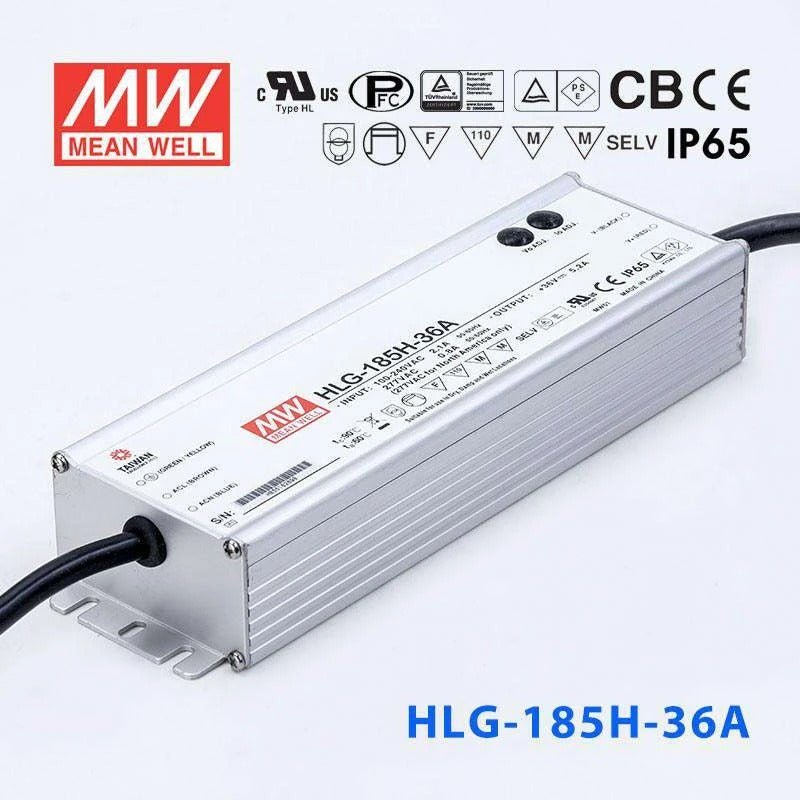

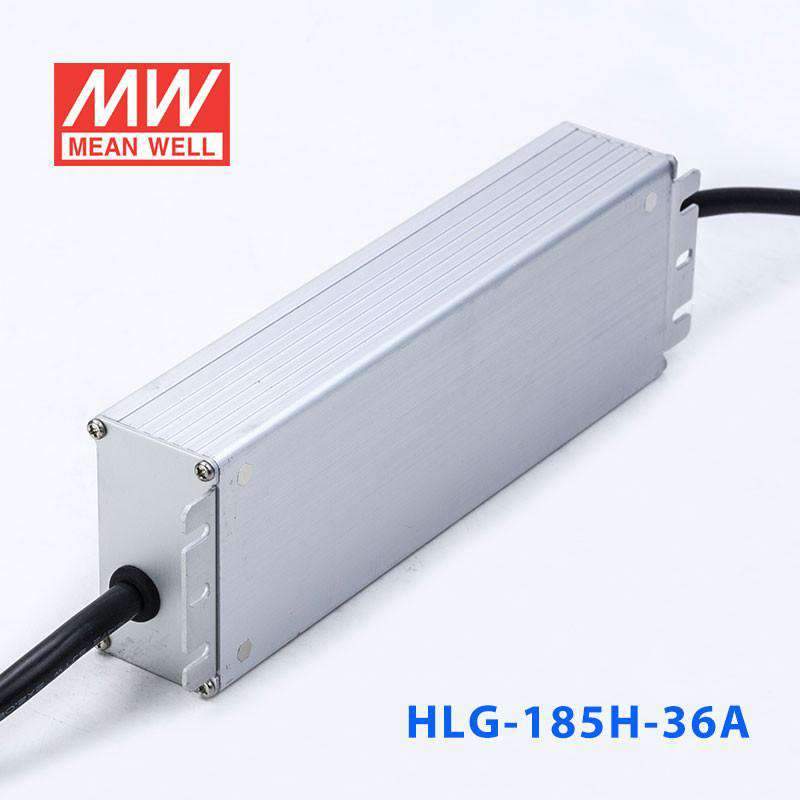

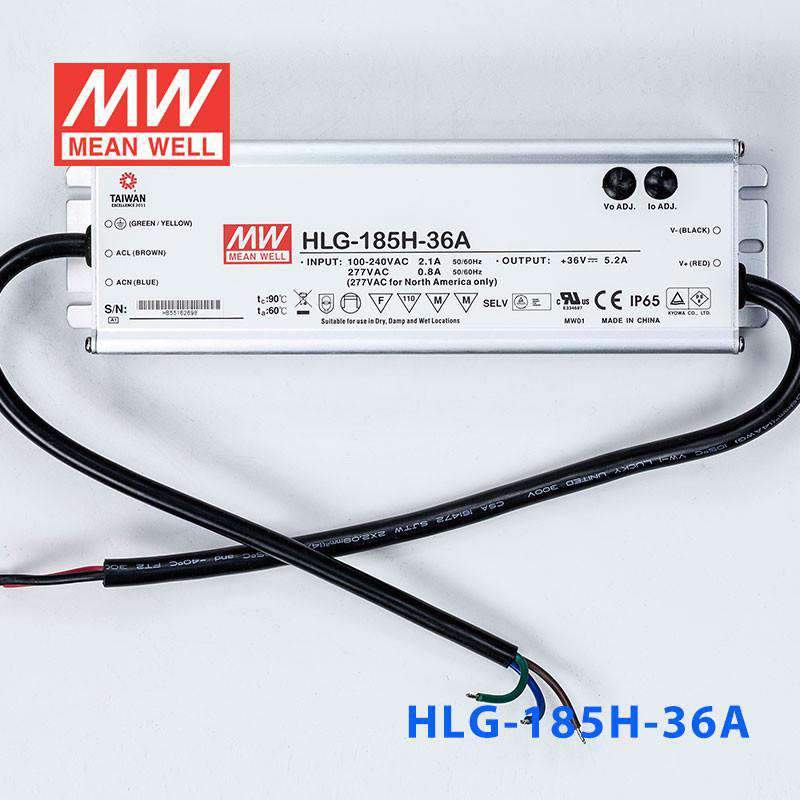

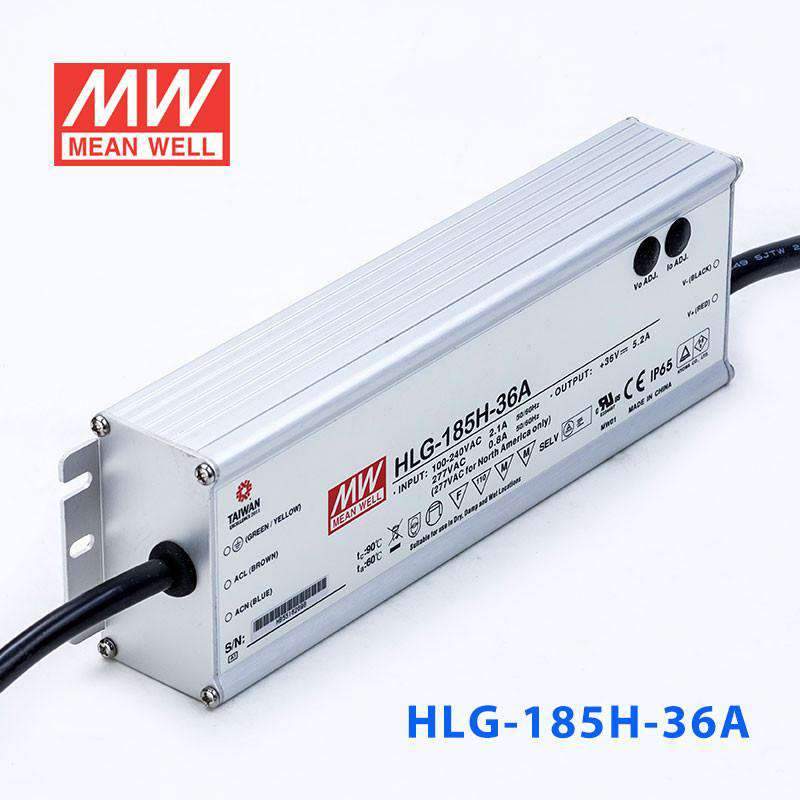

Mean Well HLG-185H-36A Power Supply 185W 36V - Adjustable
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating185 Watt
-
Output Voltage36 Volt
-
Rated Current5.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-36A to power 36V LED strips in a covered outdoor patio?
Yes. The HLG-185H-36A delivers 36V at up to 5.2A (185W) with an IP65 water-resistant rating, which handles splashing water and dust in covered patios, soffits, or canopies. For fully rain-exposed locations without any shelter, consider the IP67-rated HLG-185H-36 instead.
Is the adjustable output on the HLG-185H-36A useful for matching LED load voltage?
Yes. The built-in potentiometer lets you trim the output voltage and current, which is helpful when your 36V LED load operates best at a slightly lower voltage or when you want to reduce brightness. The CC voltage range of 18-36V gives room to fine-tune the drive level without an external controller.
Can the HLG-185H-36A power 36V LED modules for retail signage?
Yes. With 185W at 36V, it can power channel letters, cabinet signs, or retail display lighting using 36V LED modules. The adjustable output lets you precisely match the drive level to the LED string, and the wide 90-305VAC input accommodates most commercial mains supplies.
Can I use the HLG-185H-36A for 36V LED under-cabinet or cove lighting indoors?
Yes. The IP65 rating is more than sufficient for any indoor environment including kitchens, retail display areas, and cove installations. The adjustable output via potentiometer allows precise brightness tuning for decorative or task lighting applications at 36V.
How many meters of 36V LED strip can the HLG-185H-36A handle?
Divide 185W by your strip's wattage per meter. For instance, a strip rated at 10W/m would allow about 18.5 meters (185W / 10W per meter = 18.5m). Always check your strip's rated power per meter and keep total load at or below 185W for reliable operation.
Is the HLG-185H-36A suitable for a damp basement or parking garage installation?
Yes. IP65 protects against low-pressure water jets and complete dust ingress, which is more than adequate for damp indoor environments such as basements, garages, or utility rooms. For locations with direct rain or standing water, the IP67-rated HLG-185H-36 or HLG-185H-36B would be better suited.
