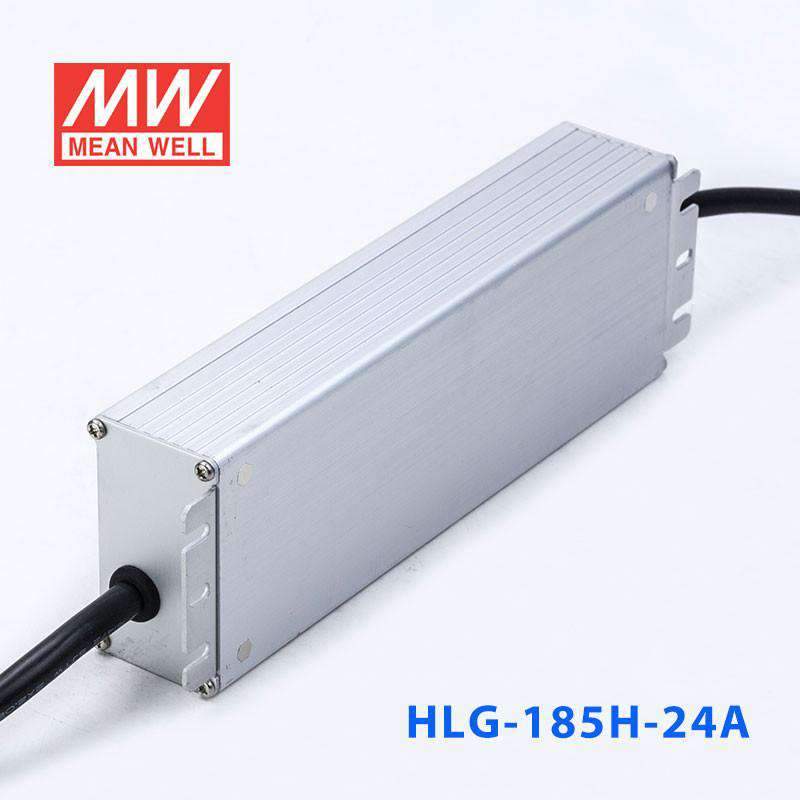

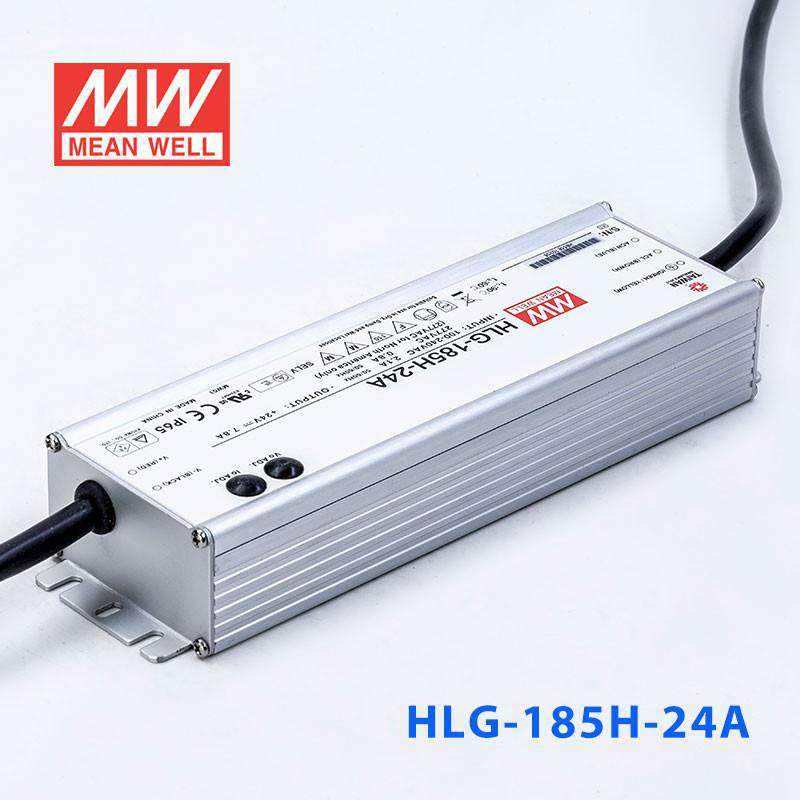

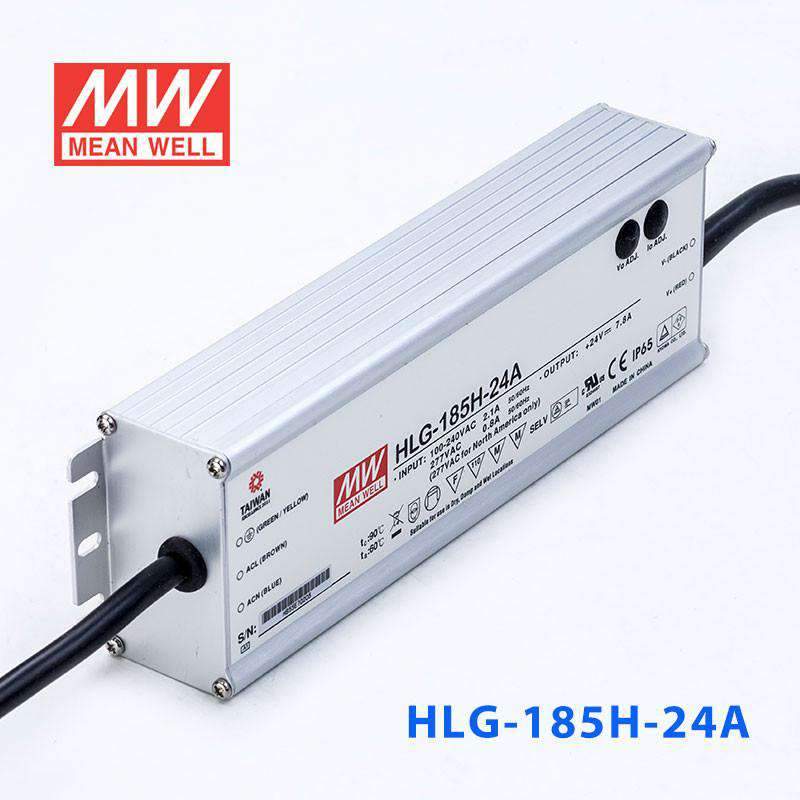

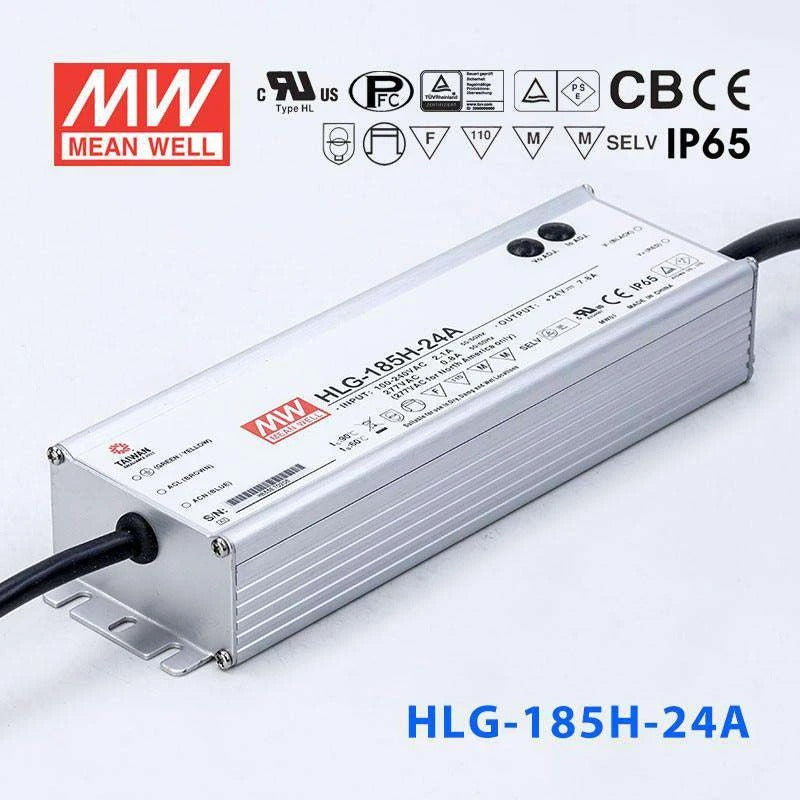

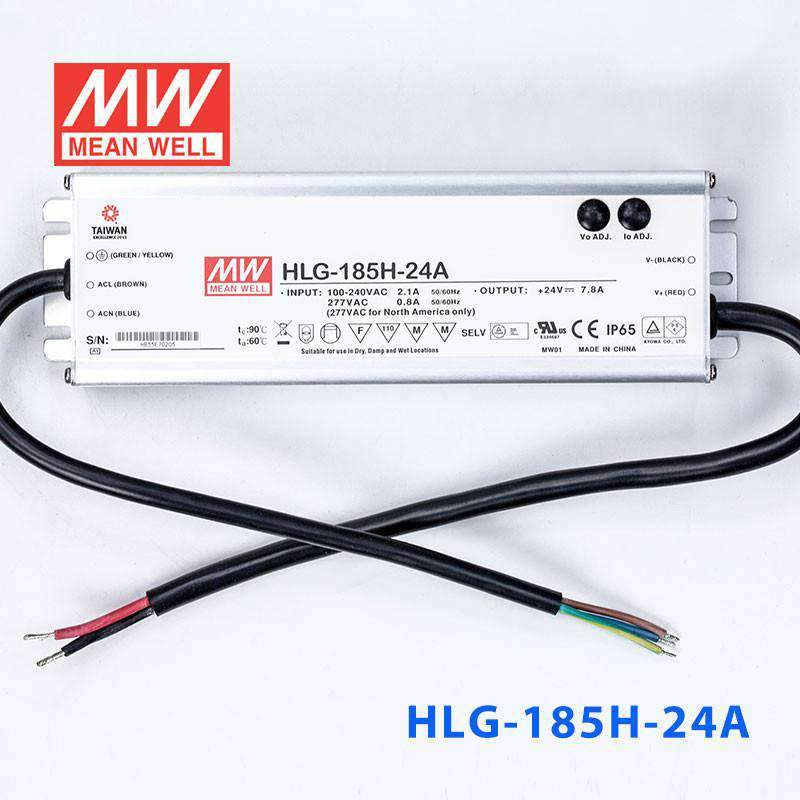

Mean Well HLG-185H-24A Power Supply 185W 24V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-185H-24A Power Supply 185W 24V - Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| Optional CQC models available (A/Blank-Type) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 16ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); |
| Dimension (LxWxH) (mm) | A/B/D/Blank-Type: 228x 68x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating185 Watt
-
Output Voltage24 Volt
-
Rated Current7.8 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-185H-24A to power 24V LED strips in a sheltered outdoor area?
Yes. The HLG-185H-24A delivers 24V at up to 7.8A (185W) with an IP65 water-resistant rating, suitable for installations under eaves, canopies, or covered patios where direct rain exposure is limited. For fully exposed outdoor locations, consider the IP67-rated HLG-185H-24 instead.
Is the adjustable output on the HLG-185H-24A useful for fine-tuning LED brightness?
Yes. The built-in potentiometer lets you trim output voltage and current without an external dimmer. With a CC voltage range of 12-24V, you can reduce the drive level to match a specific LED load or lower brightness. This is helpful when the nominal 24V is slightly more than your LEDs require.
Can the HLG-185H-24A drive 24V LED modules for indoor retail display lighting?
Yes. At 185W and 24V, it can power extensive runs of 24V LED modules for display cases, shelf lighting, or backlit panels. The adjustable output lets you match the driver precisely to the LED string voltage, and the wide 90-305VAC input accommodates various commercial mains supplies.
Can I use the HLG-185H-24A for 24V landscape lighting under a porch or awning?
Yes. The IP65 rating protects against low-pressure water jets and dust ingress, which is sufficient for sheltered outdoor installations like porch-mounted landscape lights, soffit fixtures, or under-awning accent lighting. For buried or submerged fixtures, an IP67 model would be more appropriate.
How many meters of 24V LED strip can the HLG-185H-24A handle?
Divide 185W by your strip's wattage per meter. For instance, a strip rated at 10W/m allows about 18.5 meters (185W / 10W per meter = 18.5m). Always check your specific strip's rated power per meter and keep total load at or below 185W for reliable operation.
Is the HLG-185H-24A suitable for installation in a dusty warehouse environment?
Yes. The IP65 rating provides complete protection against dust ingress and low-pressure water jets, making it suitable for warehouses, workshops, and other dusty indoor environments. The -40°C to +90°C operating range also handles the temperature swings common in unheated or poorly ventilated buildings.
