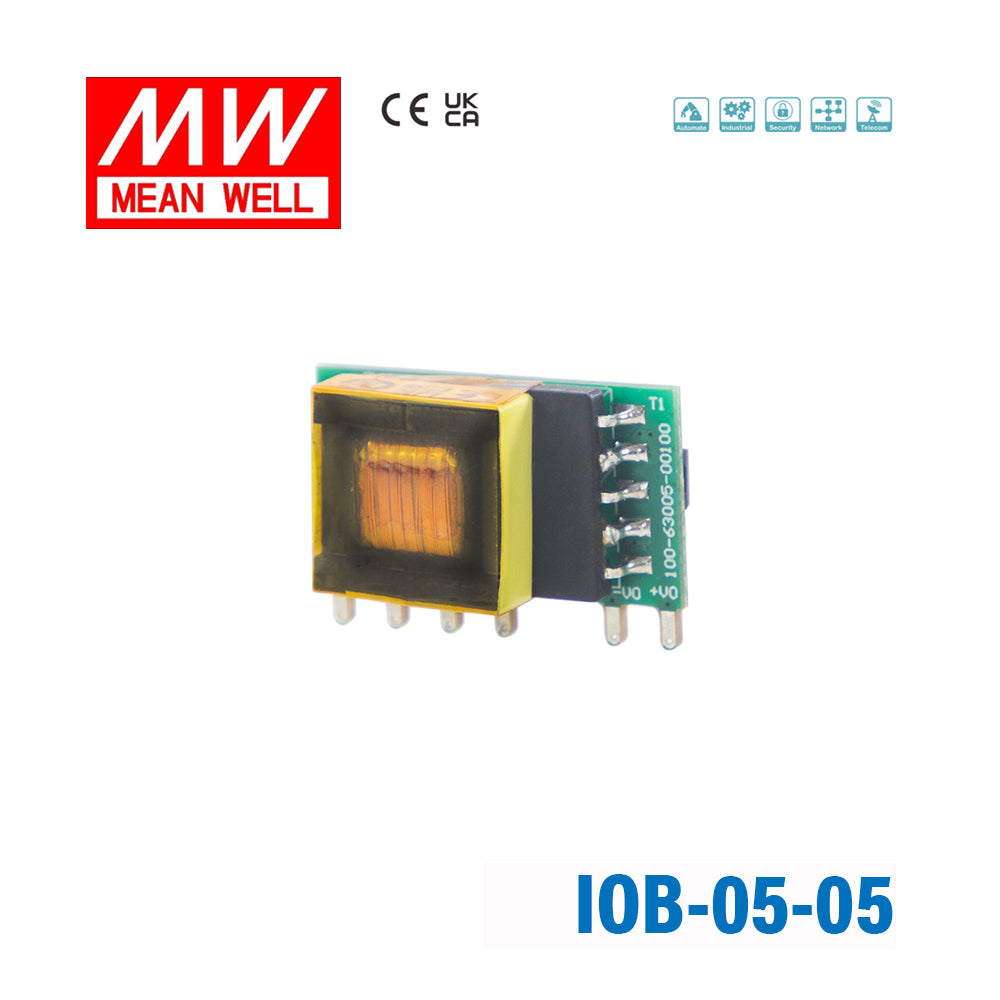

Mean Well IOB-05-05 AC-DC On Board Type Power Module 5W 5V
Key Features
- ✓Assemble on the main PCB of the system
- ✓1"x0.6" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.15W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.04 in
-
Width0.58 in
-
Height0.43 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well IOB-05-05 designed for?
The Mean Well IOB-05-05 is a 5W AC-DC on-board power module designed to be assembled directly on a system's main PCB. It provides a regulated 5V output at up to 1A in a compact module format for embedded and space-constrained equipment.
What are the main electrical ratings of the IOB-05-05?
This model is rated for 5W total output power and delivers 5V DC at 1A. It accepts a wide 85 to 305Vac input range, and also supports 100 to 430Vdc input according to the provided specification.
Is the IOB-05-05 suitable for harsh temperature environments?
Yes, the IOB-05-05 is specified for operation from -40C to +85C. That wide operating range makes it relevant for industrial and enclosed equipment designs where ambient conditions can vary significantly.
What protection features are included in the Mean Well IOB-05-05?
The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection use automatic recovery behavior, while over voltage protection is implemented with an output voltage clamp.
How compact is the IOB-05-05 compared with larger enclosed power supplies?
The IOB-05-05 is much smaller than typical enclosed or chassis-style power supplies, with dimensions of 26.4 x 14.73 x 11mm. Its 1 x 0.6 inch class footprint is intended for applications where board space is limited and a low-profile embedded power solution is preferred.
What compliance and operating characteristics matter for OEM buyers evaluating this model?
The IOB-05-05 is listed as Safety Class II and approved to IEC62368-1 under LVD. It also has no-load power consumption below 0.15W and uses free air convection cooling, which can be relevant when selecting modules for efficient compact equipment.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other IOB-05 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well IOB-05-24 AC-DC On Board Type Power Module 5.04W 24V | 5.04W | 24V | 0.21A | Indoor | $6.51 | View |
| Mean Well IOB-05-15 AC-DC On Board Type Power Module 5.1W 15V | 5.1W | 15V | 0.34A | Indoor | $6.51 | View |
| Mean Well IOB-05-12 AC-DC On Board Type Power Module 5.04W 12V | 5.04W | 12V | 0.42A | Indoor | $6.51 | View |
| Mean Well IOB-05-09 AC-DC On Board Type Power Module 5.04W 9V | 5.04W | 9V | 0.56A | Indoor | $6.51 | View |
| Mean Well IOB-05-03 AC-DC On Board Type Power Module 3.3W 3.3V | 3W | 3.3V | 1A | Indoor | $6.51 | View |
