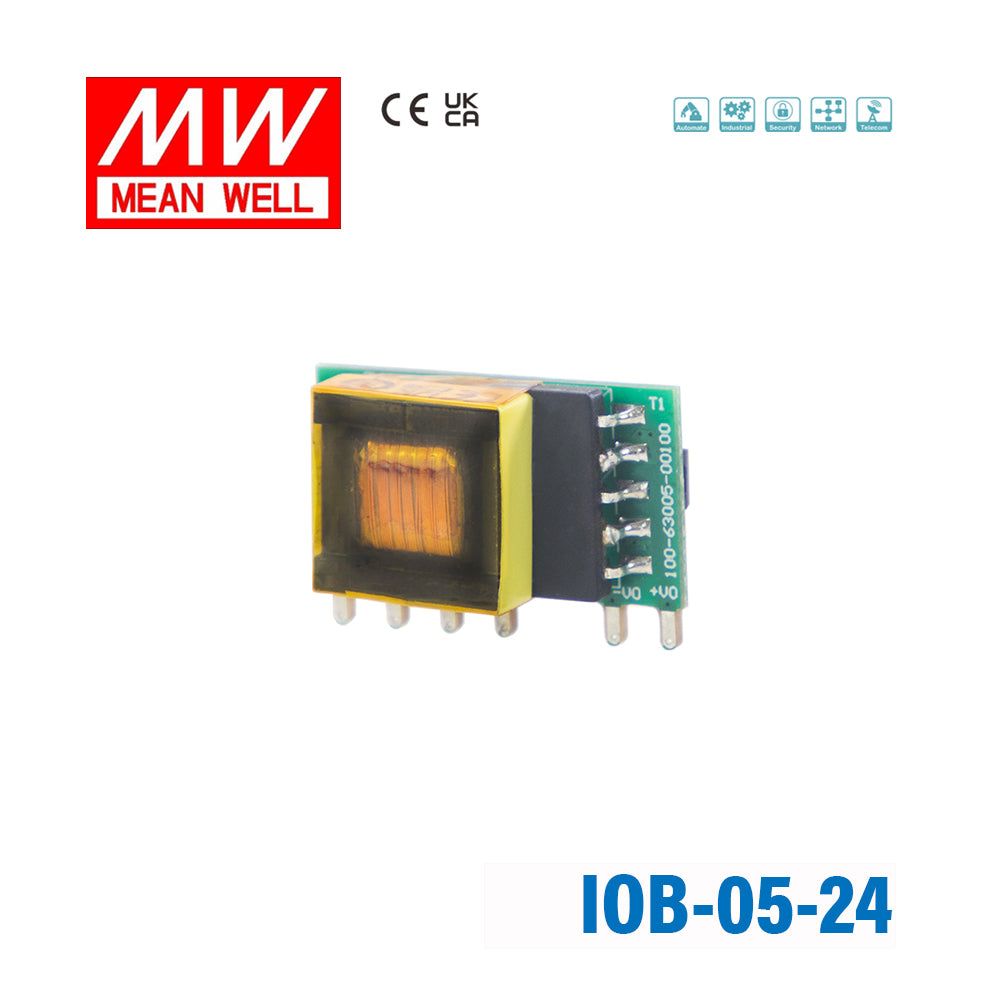

Mean Well IOB-05-24 AC-DC On Board Type Power Module 5.04W 24V
Key Features
- ✓Assemble on the main PCB of the system
- ✓1"x0.6" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.15W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating5.04 Watt
-
Output Voltage24 Volt
-
Rated Current0.21 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.04 in
-
Width0.58 in
-
Height0.43 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well IOB-05-24 designed for?
The IOB-05-24 is a compact AC-DC on-board power module intended for space-constrained equipment that needs a regulated 24V output. It is suited to embedded and OEM designs where a small form factor and direct PCB-mounted power solution are important.
What are the key output specifications of the IOB-05-24?
This model provides a 24V DC output with a rated current of 0.21A and a 5.04W power rating. Ripple and noise are specified at 150mV, and the unit includes short circuit, overload, and over voltage protection.
What input range does the IOB-05-24 support?
The IOB-05-24 accepts a wide 85 to 305Vac input range and also supports 100 to 430Vdc input. That wide range makes it suitable for designs that need flexibility across varying global power conditions.
Can the IOB-05-24 be used in demanding temperature conditions?
Yes. This module is rated for operation from -40°C to +85°C, which makes it suitable for equipment exposed to wide ambient temperature variation. It is cooled by free air convection and is specified for industrial-style operating environments.
What makes the IOB-05-24 different from larger enclosed power supplies?
The IOB-05-24 is built as an on-board power module with a very compact 26.4 x 14.73 x 11mm size, rather than as a larger enclosed supply. It is intended for systems where board space, low no-load power consumption, and compact integration are more important than a larger standalone power form factor.
What compliance and reliability details are provided for this model?
The IOB-05-24 is approved to IEC62368-1 under LVD and is listed as Safety Class II. It also carries a 3-year warranty, which is useful for OEM and B2B buyers evaluating long-term product support.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other IOB-05 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well IOB-05-15 AC-DC On Board Type Power Module 5.1W 15V | 5.1W | 15V | 0.34A | Indoor | $6.51 | View |
| Mean Well IOB-05-12 AC-DC On Board Type Power Module 5.04W 12V | 5.04W | 12V | 0.42A | Indoor | $6.51 | View |
| Mean Well IOB-05-09 AC-DC On Board Type Power Module 5.04W 9V | 5.04W | 9V | 0.56A | Indoor | $6.51 | View |
| Mean Well IOB-05-05 AC-DC On Board Type Power Module 5W 5V | 5W | 5V | 1A | Indoor | $6.51 | View |
| Mean Well IOB-05-03 AC-DC On Board Type Power Module 3.3W 3.3V | 3W | 3.3V | 1A | Indoor | $6.51 | View |
