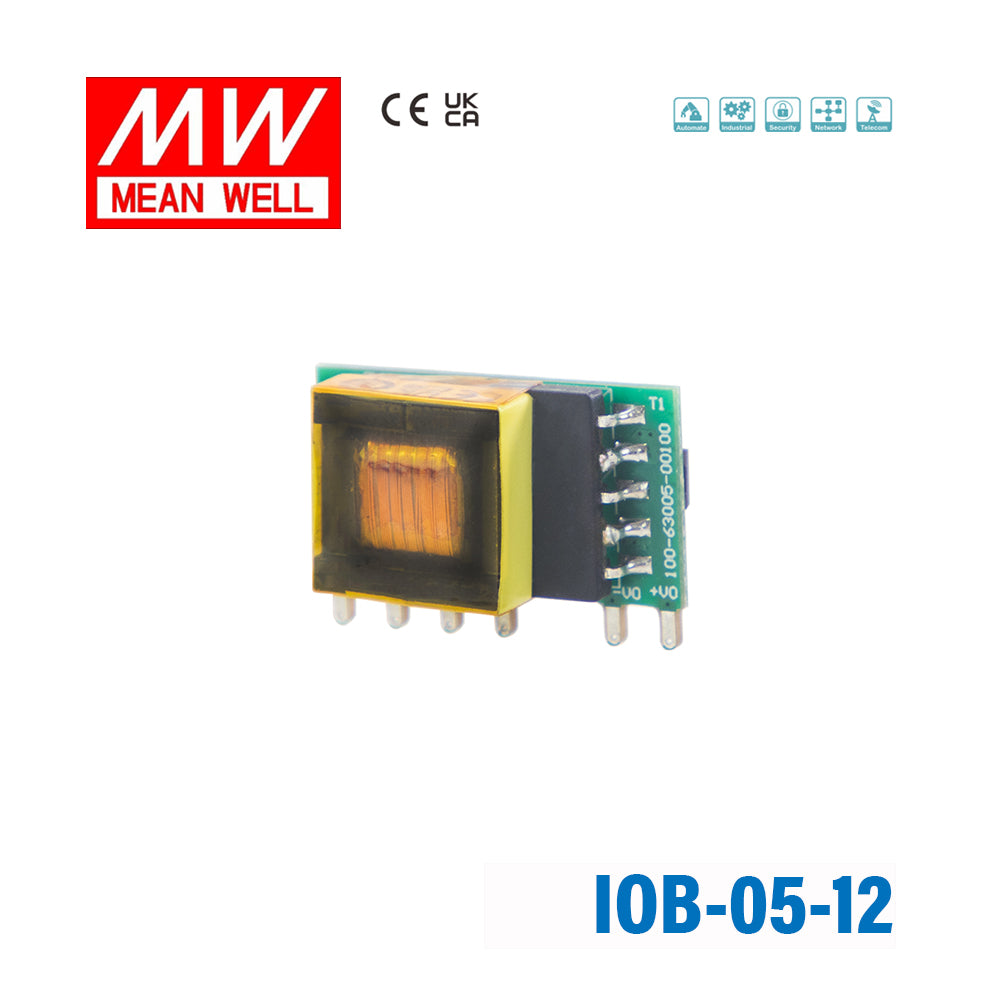

Mean Well IOB-05-12 AC-DC On Board Type Power Module 5.04W 12V
Key Features
- ✓Assemble on the main PCB of the system
- ✓1"x0.6" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.15W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating5.04 Watt
-
Output Voltage12 Volt
-
Rated Current0.42 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.04 in
-
Width0.58 in
-
Height0.43 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well IOB-05-12 used for?
The Mean Well IOB-05-12 is an on-board AC-DC power module designed for compact embedded equipment that needs a regulated 12V output. Its small 1 x 0.6 inch footprint makes it suitable for space-constrained industrial and OEM designs.
What are the main electrical ratings of the IOB-05-12?
This model provides up to 5.04W of output power with a 12V DC output and a rated current of 0.42A. It accepts a wide 85 to 305Vac input range and also supports 100 to 430Vdc input.
Is the IOB-05-12 suitable for wide-temperature environments?
Yes, the IOB-05-12 is rated for operation from -40°C to +85°C. That wide operating range makes it a practical option for equipment exposed to demanding indoor industrial conditions.
What protection features are included in the IOB-05-12?
The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection recover automatically after the fault is removed, using hiccup-mode behavior.
How compact is the Mean Well IOB-05-12?
The IOB-05-12 measures 26.4 x 14.73 x 11 mm, which is approximately 1.039 x 0.579 x 0.433 inches. Its compact size is one of the key reasons buyers choose it for dense PCB-based power designs.
Does the IOB-05-12 support low standby power designs?
Yes, this model has no-load power consumption below 0.15W. That helps support energy-conscious product designs where minimizing standby consumption matters.
What standards and warranty apply to the IOB-05-12?
The IOB-05-12 is approved to LVD IEC62368-1 and is specified as Safety Class II. Mean Well also rates this model with a 3-year warranty.
