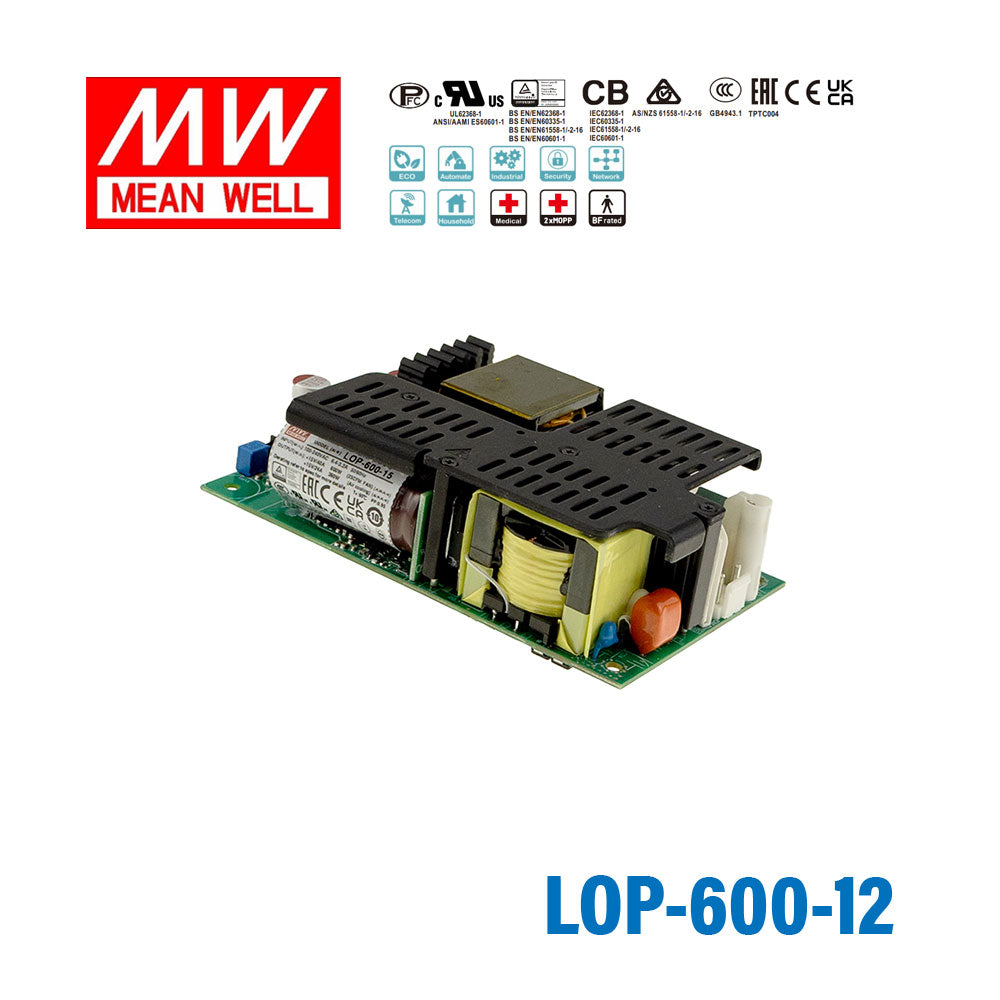

Mean Well LOP-600-12 600W 5"×3" Low Profile Open Frame Power Supply 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-600-12 600W 5"×3" Low Profile Open Frame Po...
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓400W convection, 600W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating600 Watt
-
Output Voltage12 Volt
-
Rated Current30 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.38 in
-
Weight1.06 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well LOP-600-12?
The LOP-600-12 is a 600W open frame AC-DC power supply with a 12V DC output and 30A rated current. It accepts a wide 80 to 264VAC input range and also supports 113 to 370VDC input. Power factor is specified above 0.95 at 230VAC and above 0.98 at 115VAC at full load.
Is the LOP-600-12 suitable for space-constrained equipment designs?
Yes. This model uses a compact 5 x 3 inch footprint with an overall size of 127 x 76.2 x 35mm for the 12V version, which helps in low-profile equipment layouts. Its low-profile open frame format is intended for applications where board area and vertical clearance are limited.
Can the Mean Well LOP-600-12 be used in medical or safety-critical equipment?
This model is designed with broad safety coverage, including IEC/EN/UL 62368-1 and IEC/EN/UL 60601-1 related approvals listed in the specification. It also features extremely low leakage current, 2 x MOPP, and is described as suitable for BF medical applications. Buyers should still confirm the full end-equipment compliance requirements for their specific device.
How does cooling affect the available output power on the LOP-600-12?
The unit is rated for 400W under convection cooling and up to 600W with 23CFM forced-air cooling. That makes cooling method an important selection factor if your system needs the full 600W output. It also includes a built-in 12V/0.5A output for an external fan.
What operating environment can the LOP-600-12 handle?
The specified operating temperature range is -40 to +80 degrees C, subject to the derating curve. It is also rated for operating altitudes up to 5000 meters and supports overvoltage category III installations. These specifications make it suitable for demanding industrial and embedded environments where temperature and altitude margins matter.
What protection features are included in the Mean Well LOP-600-12?
The LOP-600-12 includes short circuit, overload, overvoltage, and overtemperature protection. Overload protection is specified at 105 to 150 percent of rated output power with hiccup mode after 3 seconds, and recovery occurs automatically after the fault is removed. Overvoltage and overtemperature protection shut down the output and recover according to the condition described in the specification.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LOP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-600-54 600W 5"×3" Low Profile Open Frame Power Supply 54V | 600W | 54V | 7.4A | Indoor | $140.27 | View |
| Mean Well LOP-600-48 600W 5"×3" Low Profile Open Frame Power Supply 48V | 600W | 48V | 8.3A | Indoor | $140.27 | View |
| Mean Well LOP-600-36 600W 5"×3" Low Profile Open Frame Power Supply 36V | 600W | 36V | 11.1A | Indoor | $140.27 | View |
| Mean Well LOP-600-27 600W 5"×3" Low Profile Open Frame Power Supply 27V | 600W | 27V | 14.8A | Indoor | $140.27 | View |
| Mean Well LOP-600-24 600W 5"×3" Low Profile Open Frame Power Supply 24V | 600W | 24V | 16.7A | Indoor | $140.27 | View |
| Mean Well LOP-600-18 600W 5"×3" Low Profile Open Frame Power Supply 18V | 600W | 18V | 20A | Indoor | $140.27 | View |
| Mean Well LOP-600-15 600W 5"×3" Low Profile Open Frame Power Supply 15V | 600W | 15V | 24A | Indoor | $140.27 | View |
