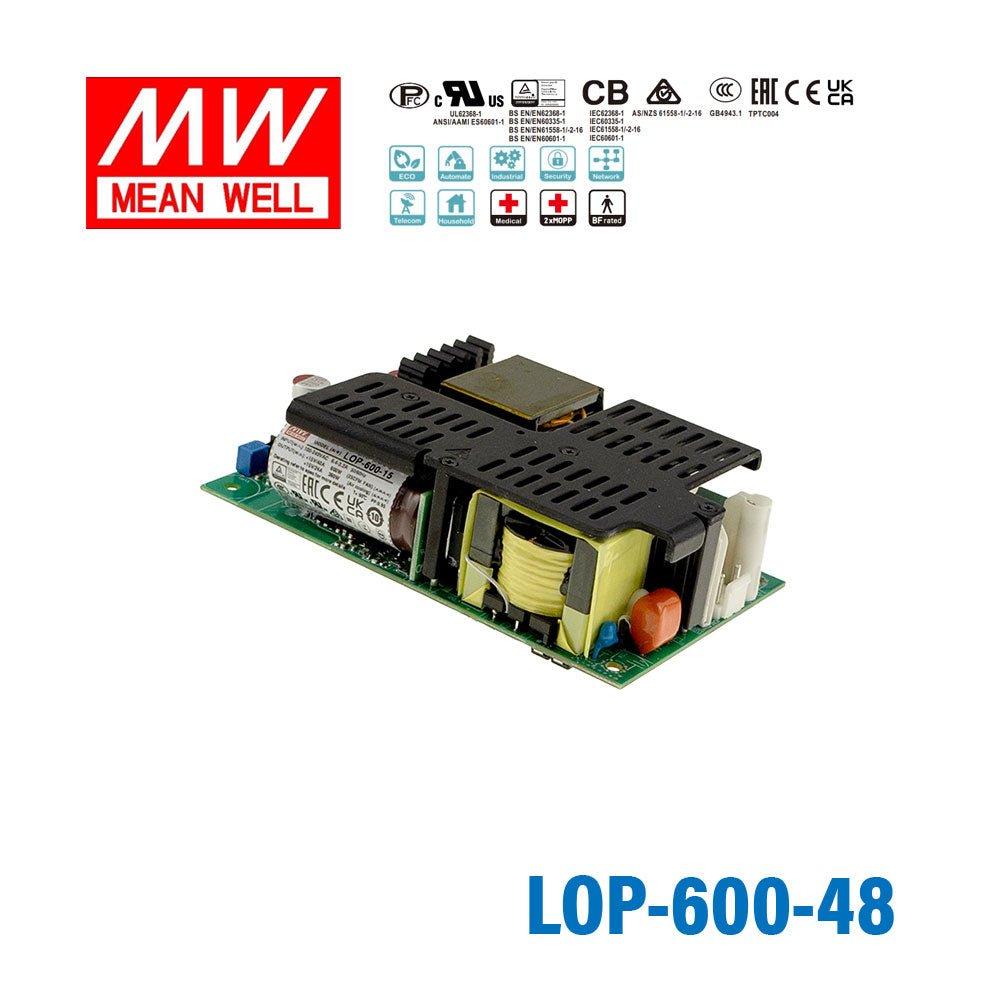

Mean Well LOP-600-48 600W 5"×3" Low Profile Open Frame Power Supply 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-600-48 600W 5"×3" Low Profile Open Frame Po...
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓400W convection, 600W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current8.3 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.32 in
-
Weight1.06 lb
::specification::
Frequently Asked Questions
What output does the Mean Well LOP-600-48 provide?
The LOP-600-48 is a 48V open frame AC-DC power supply rated for 600W with a rated current of 8.3A. It is designed for applications that need a high power density supply in a compact 5 x 3 inch footprint.
Is the LOP-600-48 suitable for space-constrained equipment?
Yes. This model uses a compact 5 x 3 inch form factor and has a low profile height of 33.5 mm for the 15-54V versions, which includes the 48V model. That makes it a practical option for equipment where internal space is limited.
How does the LOP-600-48 handle cooling and power derating?
The LOP-600-48 can deliver 400W under convection cooling and up to 600W with 23CFM forced-air cooling. It also includes a built-in 12V/0.5A output for an external fan, which supports higher power operation in demanding systems.
What certifications and standards does the LOP-600-48 support?
This power supply is certified across multiple application areas, including IEC/EN/UL 62368-1, IEC60601-1, IEC60335-1, and IEC61558-1/-2-16. Those approvals make it relevant for ITE, medical, household, and industrial equipment requirements, depending on the overall system design.
Can the LOP-600-48 be used in harsh temperature conditions?
Yes. The specified operating temperature range is -40 to +80 degrees C, subject to the derating curve. It is also rated for operating altitudes up to 5000 meters, which can matter in industrial and global deployment environments.
What protection features are built into the LOP-600-48?
The LOP-600-48 includes short circuit, overload, overvoltage, and overtemperature protection. Overload protection is specified at 105 to 150 percent of rated output power, and the unit also supports 150 percent peak load for 3 seconds.
What makes the LOP-600-48 different from a standard enclosed power supply?
The main difference is its open frame, low profile design, which helps save space in OEM equipment and integrated systems. This model also combines high efficiency up to 95 percent, active PFC, and broad safety approvals in a compact 600W platform.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LOP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-600-54 600W 5"×3" Low Profile Open Frame Power Supply 54V | 600W | 54V | 7.4A | Indoor | $140.27 | View |
| Mean Well LOP-600-36 600W 5"×3" Low Profile Open Frame Power Supply 36V | 600W | 36V | 11.1A | Indoor | $140.27 | View |
| Mean Well LOP-600-27 600W 5"×3" Low Profile Open Frame Power Supply 27V | 600W | 27V | 14.8A | Indoor | $140.27 | View |
| Mean Well LOP-600-24 600W 5"×3" Low Profile Open Frame Power Supply 24V | 600W | 24V | 16.7A | Indoor | $140.27 | View |
| Mean Well LOP-600-18 600W 5"×3" Low Profile Open Frame Power Supply 18V | 600W | 18V | 20A | Indoor | $140.27 | View |
| Mean Well LOP-600-15 600W 5"×3" Low Profile Open Frame Power Supply 15V | 600W | 15V | 24A | Indoor | $140.27 | View |
| Mean Well LOP-600-12 600W 5"×3" Low Profile Open Frame Power Supply 12V | 600W | 12V | 30A | Indoor | $140.27 | View |
