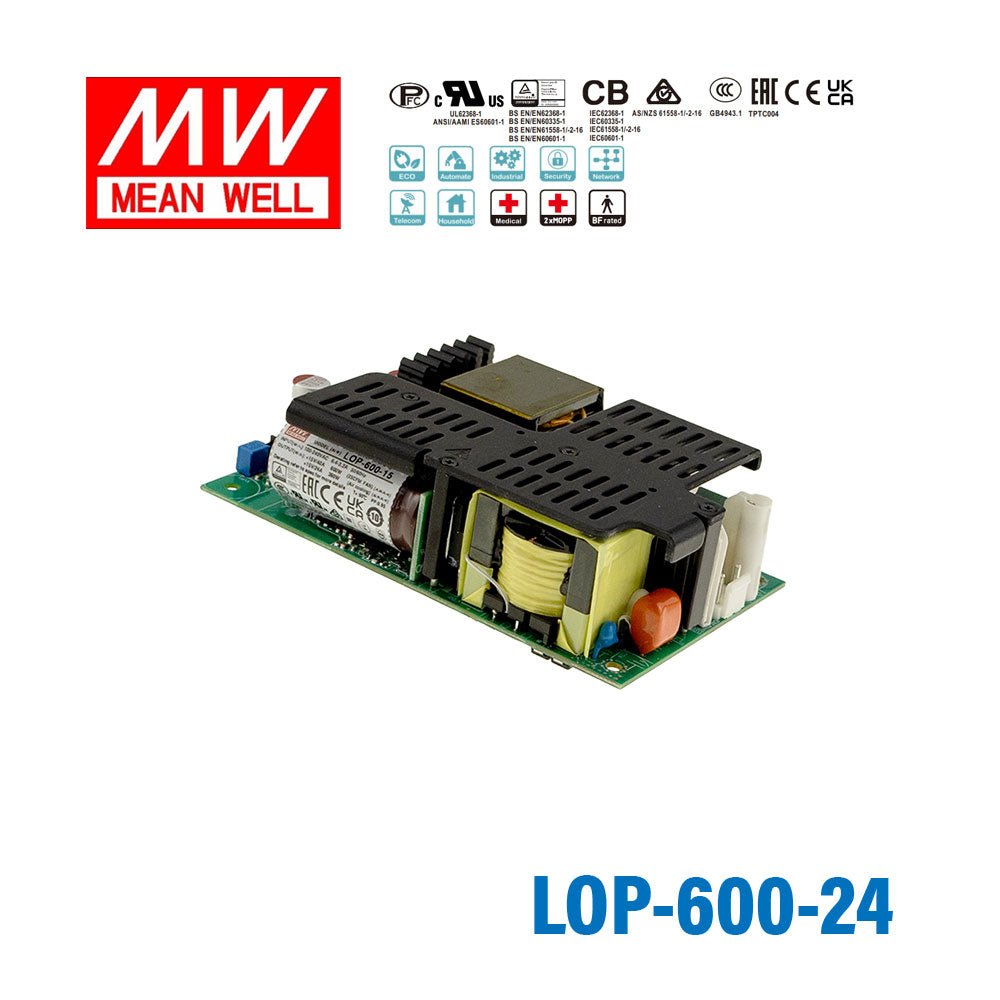

Mean Well LOP-600-24 600W 5"×3" Low Profile Open Frame Power Supply 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-600-24 600W 5"×3" Low Profile Open Frame Po...
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓400W convection, 600W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current16.7 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.32 in
-
Weight1.06 lb
::specification::
Frequently Asked Questions
What are the key electrical specs of the Mean Well LOP-600-24?
The Mean Well LOP-600-24 is a 600W open frame AC-DC power supply with a 24V output and rated current of 16.7A. It accepts 80 to 264VAC input, includes active PFC, and reaches efficiency up to 95%.
Is the LOP-600-24 suitable for space-constrained equipment?
Yes. This model uses a compact 5 x 3 inch footprint and a low-profile design, with a height of 33.5mm for the 24V version. That makes it a strong fit for equipment where board space and vertical clearance are limited.
Can the LOP-600-24 operate in harsh temperature environments?
This power supply is rated for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide operating range makes it suitable for demanding industrial and enclosed equipment environments.
Does the LOP-600-24 support medical or safety-sensitive applications?
The LOP-600-24 carries medical IEC/EN/UL 60601-1 approvals and is specified with extremely low leakage current and 2 x MOPP. Mean Well also states it is suitable for BF medical applications, in addition to ITE, household, and industrial use categories.
How does the LOP-600-24 handle peak loads and cooling conditions?
This model is rated for 400W under convection cooling and up to 600W with 23CFM forced-air cooling. It also supports 150% peak load for 3 seconds, which can help with short-duration load surges in demanding equipment.
What protection features are built into the Mean Well LOP-600-24?
The LOP-600-24 includes short circuit, overload, overvoltage, and overtemperature protection. The overload protection operates in hiccup mode after 3 seconds and recovers automatically after the fault is removed, while overvoltage and overtemperature use shutdown-based protection behavior.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LOP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-600-54 600W 5"×3" Low Profile Open Frame Power Supply 54V | 600W | 54V | 7.4A | Indoor | $140.27 | View |
| Mean Well LOP-600-48 600W 5"×3" Low Profile Open Frame Power Supply 48V | 600W | 48V | 8.3A | Indoor | $140.27 | View |
| Mean Well LOP-600-36 600W 5"×3" Low Profile Open Frame Power Supply 36V | 600W | 36V | 11.1A | Indoor | $140.27 | View |
| Mean Well LOP-600-27 600W 5"×3" Low Profile Open Frame Power Supply 27V | 600W | 27V | 14.8A | Indoor | $140.27 | View |
| Mean Well LOP-600-18 600W 5"×3" Low Profile Open Frame Power Supply 18V | 600W | 18V | 20A | Indoor | $140.27 | View |
| Mean Well LOP-600-15 600W 5"×3" Low Profile Open Frame Power Supply 15V | 600W | 15V | 24A | Indoor | $140.27 | View |
| Mean Well LOP-600-12 600W 5"×3" Low Profile Open Frame Power Supply 12V | 600W | 12V | 30A | Indoor | $140.27 | View |
