Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

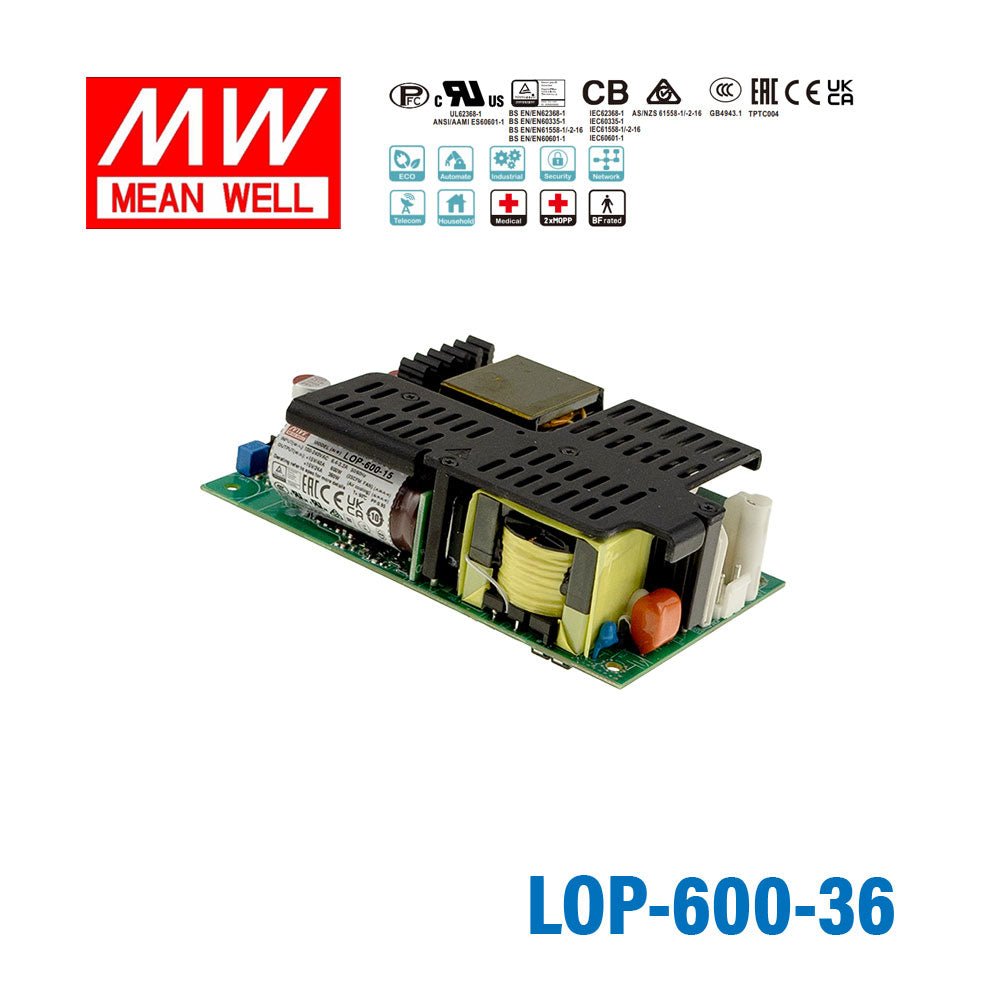

Mean Well LOP-600-36 600W 5"×3" Low Profile Open Frame Power Supply 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-600-36 600W 5"×3" Low Profile Open Frame Po...
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓400W convection, 600W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating600 Watt
-
Output Voltage36 Volt
-
Rated Current11.1 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.32 in
-
Weight1.06 lb
::specification::
Frequently Asked Questions
What are the key electrical ratings of the Mean Well LOP-600-36?
The LOP-600-36 is a 600W open frame AC-DC power supply with a 36V output and 11.1A rated current. It accepts 80 to 264VAC input and also supports 113 to 370VDC input. This model includes active PFC and can reach efficiency up to 95%.
Is the LOP-600-36 suitable for space-constrained equipment?
Yes. This model uses a compact 5 x 3 inch footprint and a low profile design, with the 15V to 54V versions measuring 127 x 76.2 x 33.5 mm. That makes it a strong fit for equipment where board space and vertical clearance are limited.
Can this power supply be used in medical or safety-sensitive applications?
The LOP-600-36 includes broad safety approvals, including IEC/EN/UL 62368-1 and IEC/EN/ANSI/AAMI 60601-1 coverage listed in the product data. It also features extremely low leakage current, 2 x MOPP, and is noted as suitable for BF medical applications. Buyers should still confirm the final system-level compliance requirements for their equipment.
How does the LOP-600-36 handle high ambient temperatures?
This model is rated for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide range makes it suitable for demanding industrial environments where temperature tolerance matters. Over-temperature protection is built in to help protect the supply under abnormal conditions.
Does the LOP-600-36 require forced air to reach full output power?
Yes. The product is rated for 400W with convection cooling and up to 600W with a 23CFM fan for forced cooling. For applications that need the full 600W output, buyers should account for the forced-air requirement.
What protection features are included in the Mean Well LOP-600-36?
The LOP-600-36 includes short circuit, overload, overvoltage, and over-temperature protection. The overload specification is 105 to 150% of rated output power, and the unit also supports 150% peak load for 3 seconds. These features help support reliability in demanding equipment designs.
Is the LOP-600-36 appropriate for global OEM equipment platforms?
Yes. This model is designed with a universal 80 to 264VAC input range and lists multiple international safety certifications across ITE, medical, household, and industrial standards. That makes it a practical choice for OEMs building products for multiple regional markets.
What distinguishes the LOP-600-36 from lower-power open frame supplies?
A key differentiator is its ability to deliver up to 600W from a compact 5 x 3 inch low-profile form factor. It also combines high efficiency, PFC, wide operating temperature range, and multi-industry safety approvals. That makes it more suitable for higher-power embedded applications than smaller open frame models.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LOP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-600-54 600W 5"×3" Low Profile Open Frame Power Supply 54V | 600W | 54V | 7.4A | Indoor | $140.27 | View |
| Mean Well LOP-600-48 600W 5"×3" Low Profile Open Frame Power Supply 48V | 600W | 48V | 8.3A | Indoor | $140.27 | View |
| Mean Well LOP-600-27 600W 5"×3" Low Profile Open Frame Power Supply 27V | 600W | 27V | 14.8A | Indoor | $140.27 | View |
| Mean Well LOP-600-24 600W 5"×3" Low Profile Open Frame Power Supply 24V | 600W | 24V | 16.7A | Indoor | $140.27 | View |
| Mean Well LOP-600-18 600W 5"×3" Low Profile Open Frame Power Supply 18V | 600W | 18V | 20A | Indoor | $140.27 | View |
| Mean Well LOP-600-15 600W 5"×3" Low Profile Open Frame Power Supply 15V | 600W | 15V | 24A | Indoor | $140.27 | View |
| Mean Well LOP-600-12 600W 5"×3" Low Profile Open Frame Power Supply 12V | 600W | 12V | 30A | Indoor | $140.27 | View |
