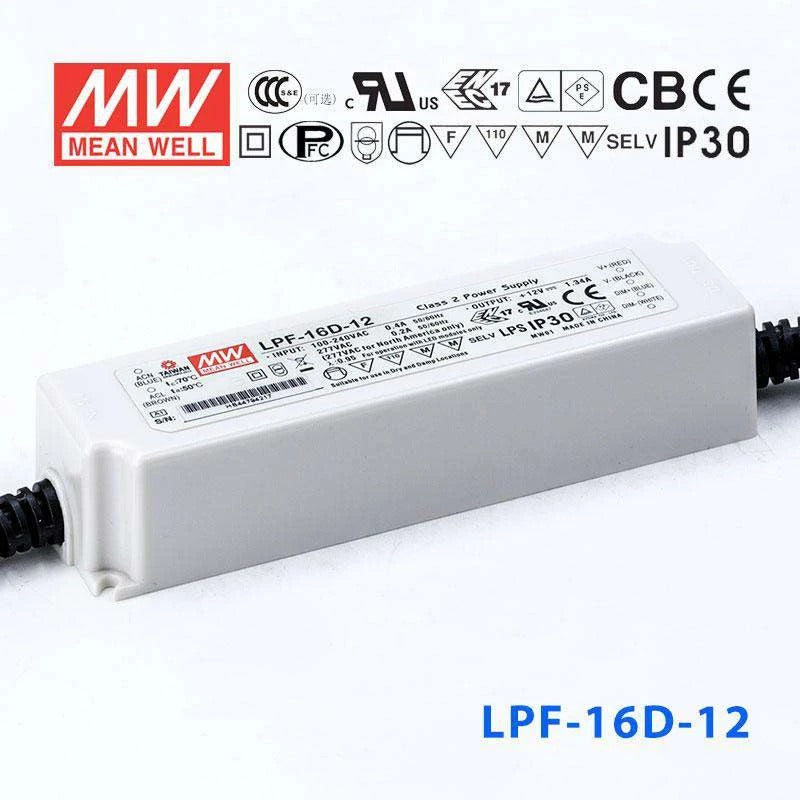

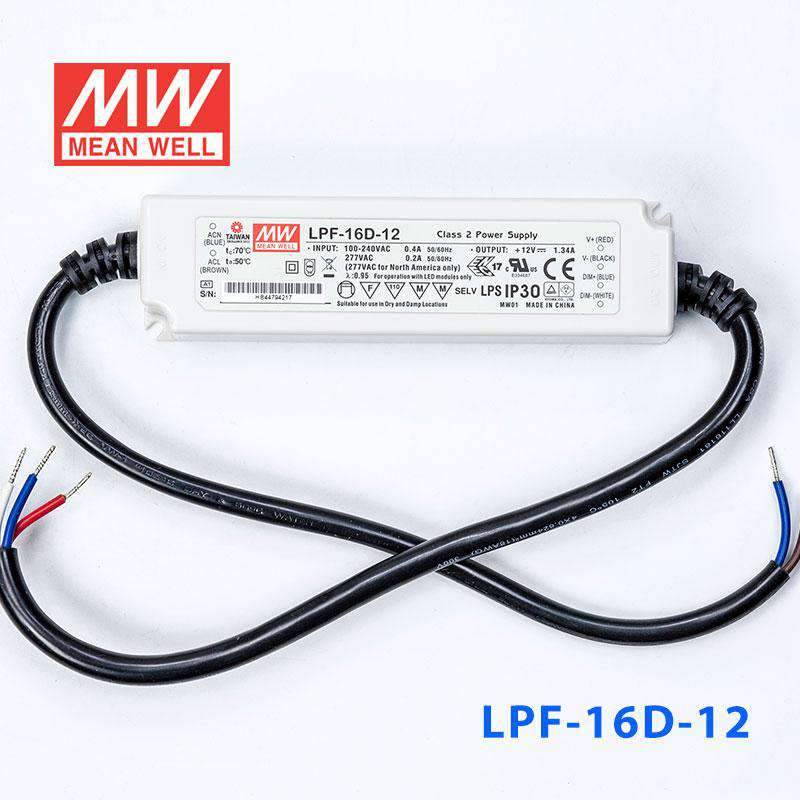

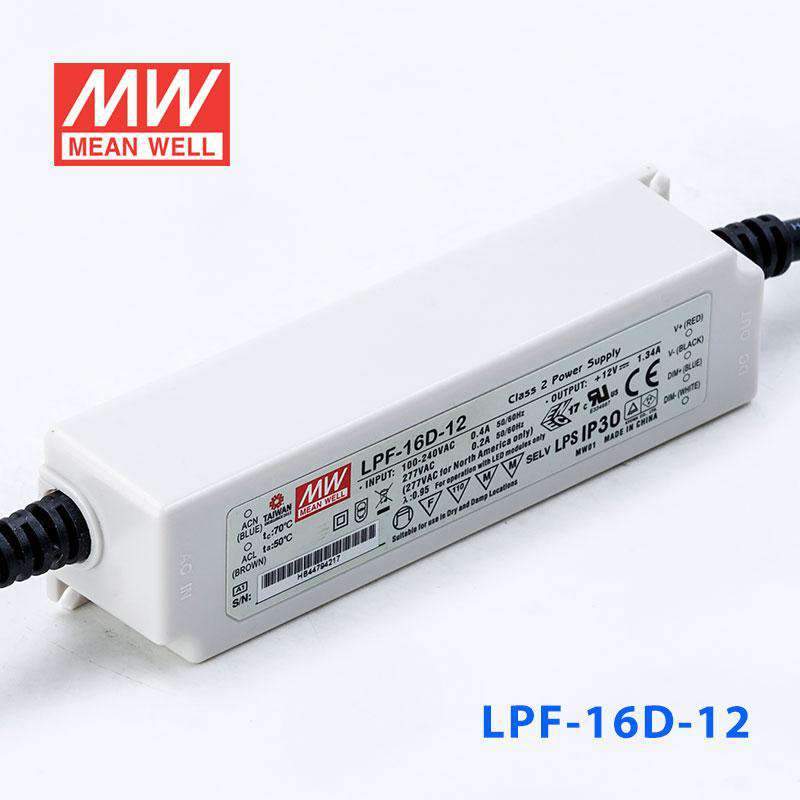

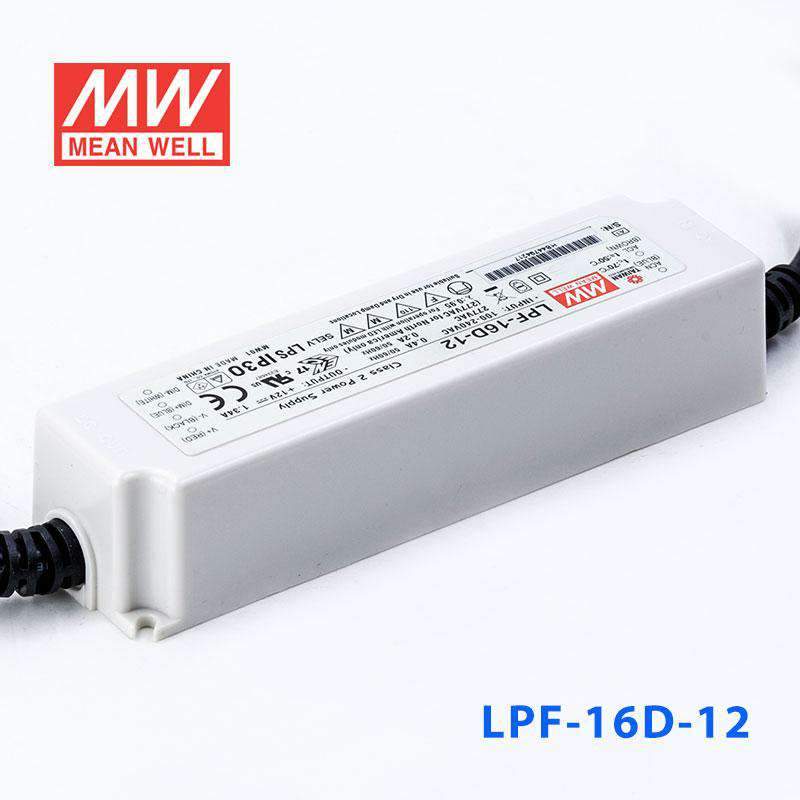

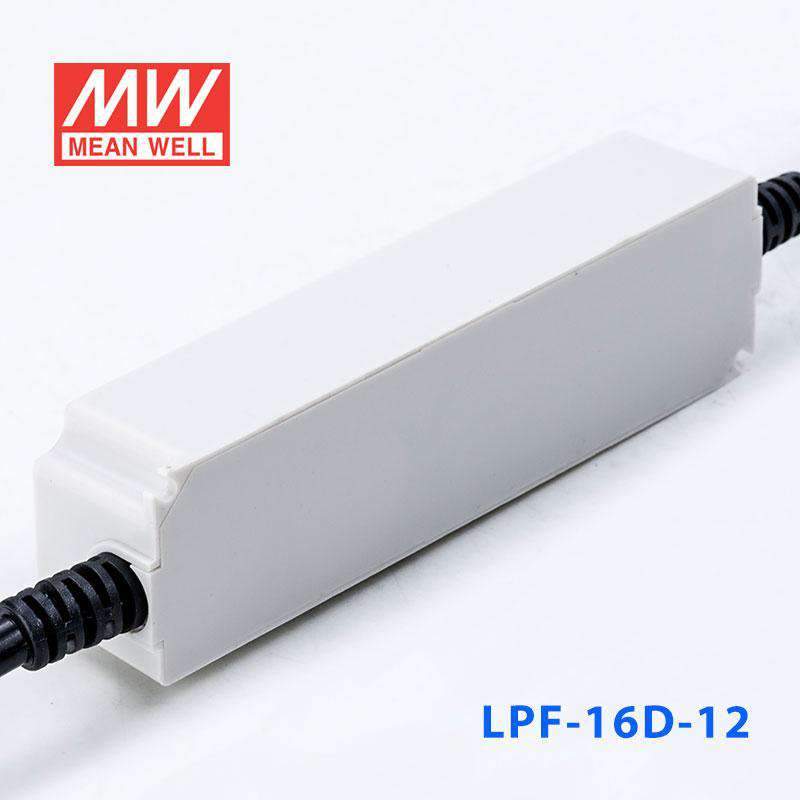

Mean Well LPF-16D-12 Power Supply 16W 12V - Dimmable 1.34A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-16D-12 Power Supply 16W 12V - Dimmable 1.34A
The LPF-16D is a 16W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.08 Watt
-
Output Voltage12 Volt
-
Rated Current1.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the LPF-16D-12 for 12V LED strip lighting with dimming?
Yes, if the LED strip or load is designed for constant-current operation at 1.34A within the 6-12V range. This model provides up to 16.08W and includes built-in 3 in 1 dimming for small 12V dimmable lighting loads.
Is the LPF-16D-12 suitable for dimmable under-cabinet or display lighting?
It can be suitable for small under-cabinet or display lighting systems when the LED load requires 1.34A constant current and falls between 6V and 12V. The 16.08W output and built-in 3 in 1 dimming make it appropriate for low-power dimmable fixtures.
Can this driver be used for dimmable 12V LED signage modules?
Yes, for 12V signage modules that are specified for constant-current operation at 1.34A. The total load must stay within 16.08W and within the 6-12V constant-current range.
Would the LPF-16D-12 work for damp or outdoor dimmable lighting?
Yes, the IP67 waterproof enclosure supports wet and outdoor environments, and the driver is rated from -35°C to +70°C. The LED load still needs to match the 1.34A constant-current output and 6-12V range.
How do I estimate LED strip length with the LPF-16D-12?
Use the formula: maximum strip length = 16.08W divided by your strip's rated watts per meter. Because this is a constant-current 1.34A driver with a 6-12V range, check your strip rated power per meter and confirm the strip is designed for this constant-current output.
What is the difference between LPF-16D-12 and related 12V LPF models?
At 12V, the related models are LPF-16-12 at 16.08W and 1.34A, LPF-16D-12 at 16.08W and 1.34A, LPF-25-12 at 25.2W and 2.1A, LPF-25D-12 at 25.2W and 2.1A, LPF-40-12 at 40.08W and 3.34A, LPF-40D-12 at 40.08W and 3.34A, LPF-60-12 at 60W and 5A, and LPF-60D-12 at 60W and 5A. In this group, the LPF-16D-12 combines the 16.08W, 12V, 1.34A rating with built-in 3 in 1 dimming.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-16D Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-16D-24 Power Supply 16W 24V - Dimmable 670mA | 16.08W | 24V | 0.67A | IP67 | $26.83 | View |
