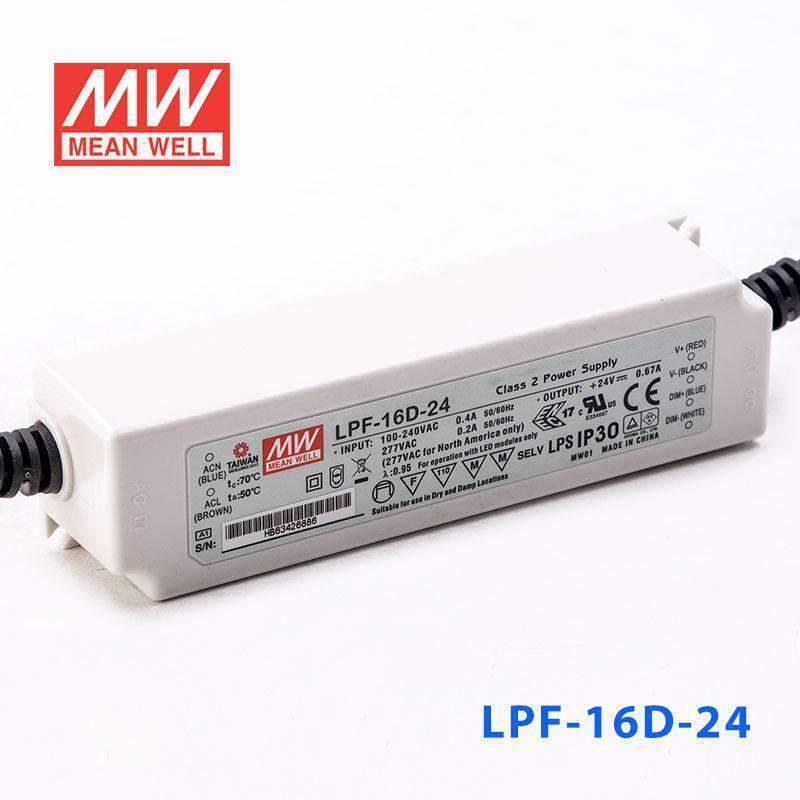

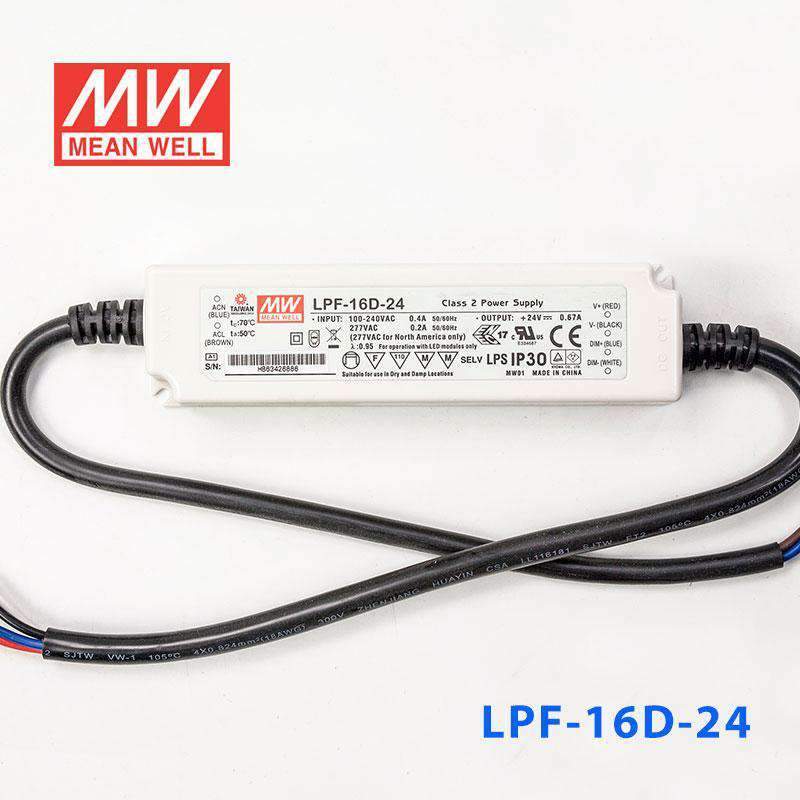

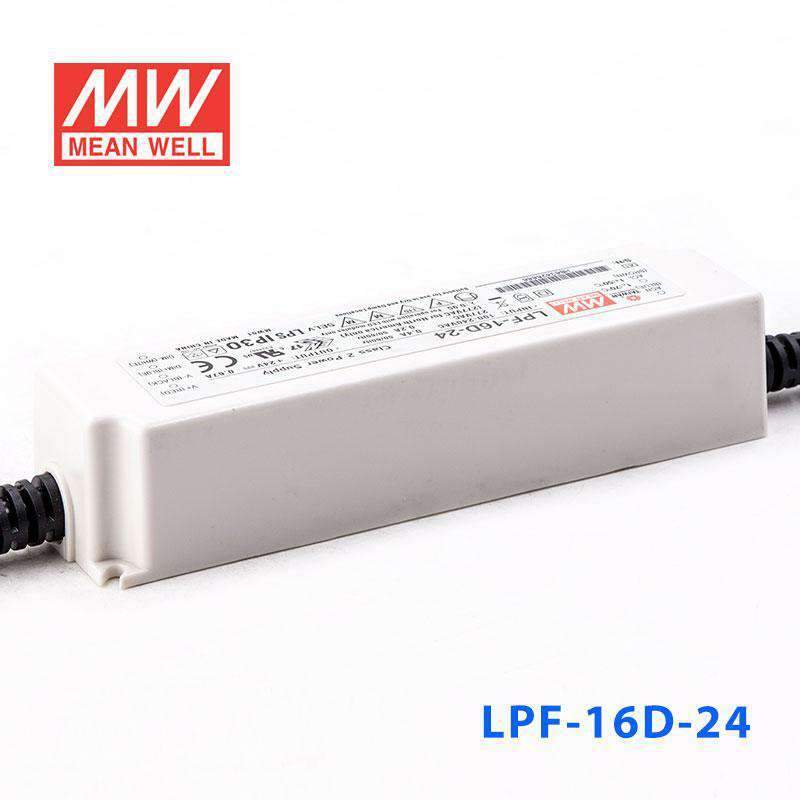

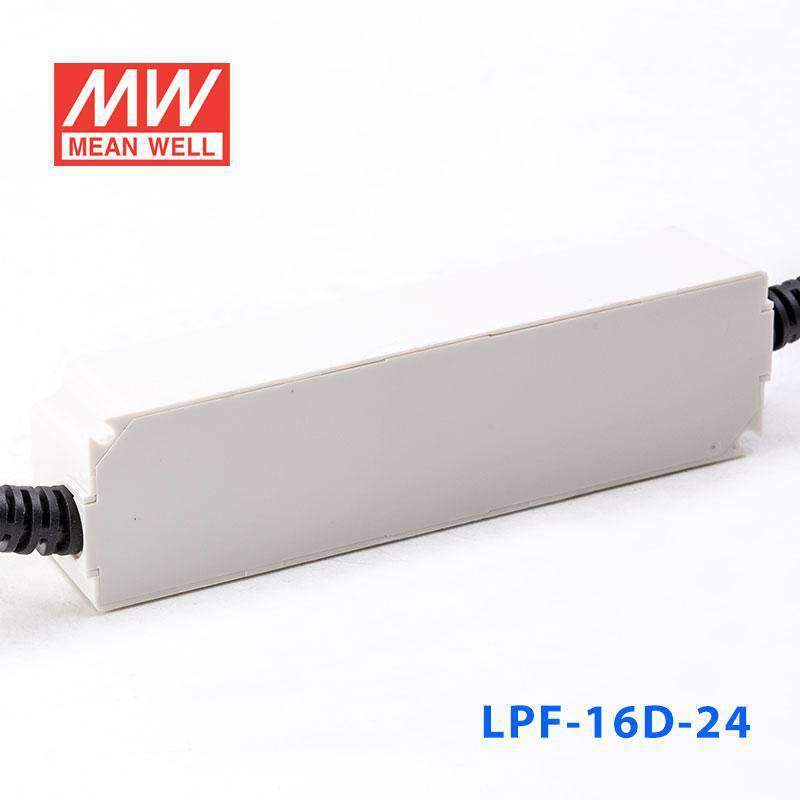

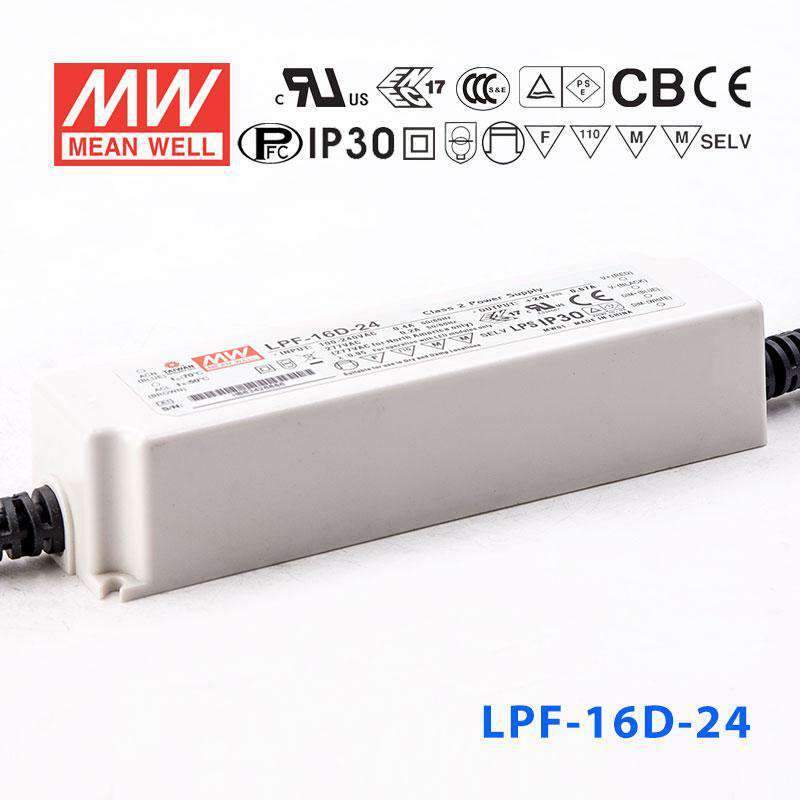

Mean Well LPF-16D-24 Power Supply 16W 24V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-16D-24 Power Supply 16W 24V - Dimmable
Description
Description
The LPF-16D is a 16W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.08 Watt
-
Output Voltage24 Volt
-
Rated Current0.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-16D-24 with a 24V constant-current signage load?
Yes, if the signage load is designed for constant-current operation at 0.67A and stays within the 13-24V constant-current range. Total load should not exceed 16.08W.
Is this a good fit for a dimmable 24V linear lighting fixture?
It can be a fit for a low-power linear fixture that requires 0.67A constant current and operates between 13V and 24V. The built-in 3 in 1 dimming also makes it appropriate where dimming is needed within the 16.08W limit.
Can this driver be used for outdoor 24V architectural lighting?
Yes, if the fixture is a constant-current 0.67A load within the 13-24V range. Its IP67 rating and -35°C to +70°C operating temperature make it suitable for outdoor and wet-location lighting applications.
What length of 24V LED strip can this model support?
Only use it with a 24V constant-current strip or module that matches 0.67A and the 13-24V range. The maximum length is 16.08W divided by the strip's watts per meter, so check your strip rated power per meter before choosing a run length.
Will the LPF-16D-24 handle cold or hot outdoor conditions?
This model is rated for -35°C to +70°C operation, so it is built for a wide temperature range. Its IP67 enclosure also supports outdoor and wet-area use when the connected LED load matches the electrical specs.
