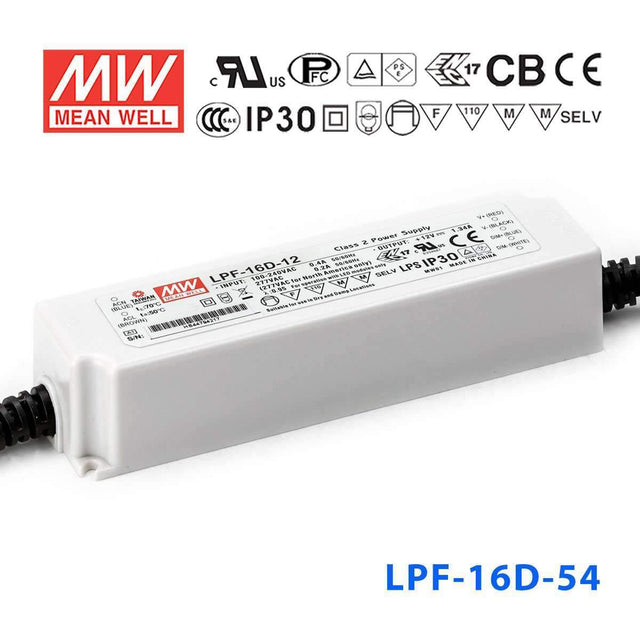

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well LPF-16D-54 Power Supply 16W 54V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-16D-54 Power Supply 16W 54V - Dimmable
The LPF-16D is a 16W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.2 Watt
-
Output Voltage54 Volt
-
Rated Current0.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the LPF-16D-54 for a compact 54V LED lighting run?
Yes, if the fixture or strip is designed for 54V operation and stays within 16.2W total. This driver outputs 54V at 0.3A and works within a 29-54V constant current range. Check that the lighting product is specifically compatible before using it.
Is the LPF-16D-54 a fit for small 54V illuminated signage?
It can be used for low-power 54V illuminated signage where the total load does not exceed 16.2W. The IP67 enclosure makes it appropriate for signage locations exposed to water or dust. Confirm the sign lighting modules are rated to match 54V and 0.3A.
Can the LPF-16D-54 be used with a short 54V linear fixture?
Yes, for a short 54V linear fixture that falls within the driver’s 16.2W output limit. With 54V output and 0.3A current, it is sized for lighter loads rather than extended runs. Verify the fixture’s voltage and current requirements before selection.
Will this driver work in outdoor or wet lighting conditions?
Yes, the LPF-16D-54 is rated IP67 waterproof, so it is intended for wet and dusty environments. It also carries an operating temperature range of -35°C to +70°C for demanding indoor or outdoor conditions. The connected lighting components should be rated for the same environment.
How much 54V LED strip can the LPF-16D-54 run?
Use the driver’s 16.2W maximum to estimate strip length. Length = 16.2W divided by the strip’s rated watts per meter, so a 5.4W/m strip would be about 3 meters. Check your strip rated power per meter and make sure the strip is actually designed to work with a 54V-compatible driver.
What is the difference between the LPF-16D-54 and the other 16W dimmable LPF versions?
The LPF-16D lineup includes 12V 16.08W 1.34A, 15V 16.05W 1.07A, 20V 16W 0.8A, 24V 16.08W 0.67A, 30V 16.2W 0.54A, 36V 16.2W 0.45A, 42V 16.38W 0.39A, 48V 16.32W 0.34A, and 54V 16.2W 0.3A. The LPF-16D-54 is the highest-voltage option in that dimmable 16W group and therefore also has the lowest output current at 0.3A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-16D Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-16D-24 Power Supply 16W 24V - Dimmable 670mA | 16.08W | 24V | 0.67A | IP67 | $26.83 | View |
