Can I use the LPF-40-48 for a 48V LED sign or display light?

Yes, if the lighting load is a 48V constant-current type and operates within the 28-48V constant-current range. The LPF-40-48 delivers up to 40.32W at 48V and 0.84A.

Is the LPF-40-48 suitable for 48V architectural lighting?

It can be used for 48V constant-current architectural lighting loads that stay within 0.84A and 40.32W. The IP67 waterproof enclosure also supports use in more exposed lighting environments.

Can this driver run a 48V LED strip for accent or cove lighting?

It can only run a strip that is specifically designed for 48V constant-current operation. This driver is limited to 40.32W total output and 0.84A, so the strip load must match those figures.

How do I calculate the maximum 48V strip length for the LPF-40-48?

Use the driver’s 40.32W maximum output as the limit. Estimated strip length = 40.32W divided by your strip’s rated watts per meter, so check your strip rated power per meter before sizing it.

Is the LPF-40-48 appropriate for outdoor lighting projects?

Yes, it has an IP67 Waterproof rating for wet or outdoor use. It is also specified for operation from -40°C to +80°C.

How does the LPF-40-48 compare with the other 48V LPF models?

At 48V, the series includes LPF-16-48 at 16.32W and 0.34A, LPF-25-48 at 25.44W and 0.53A, LPF-40-48 at 40.32W and 0.84A, LPF-60-48 at 60W and 1.25A, and LPF-90-48 at 90.24W and 1.88A. Dimmable versions are LPF-16D-48, LPF-25D-48, LPF-40D-48, LPF-60D-48, and LPF-90D-48 with the same listed voltage and output ratings.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

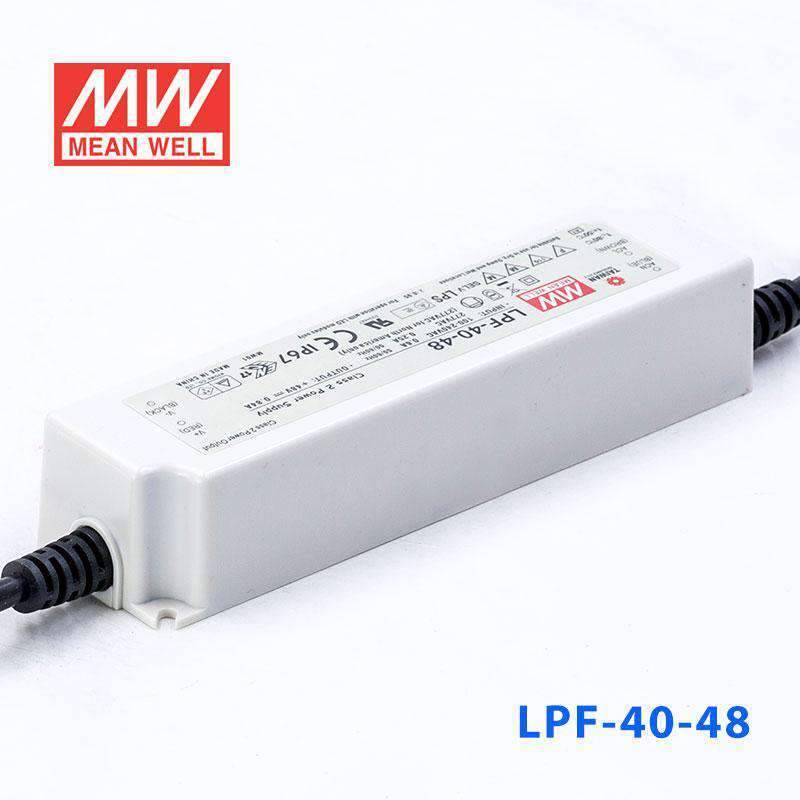

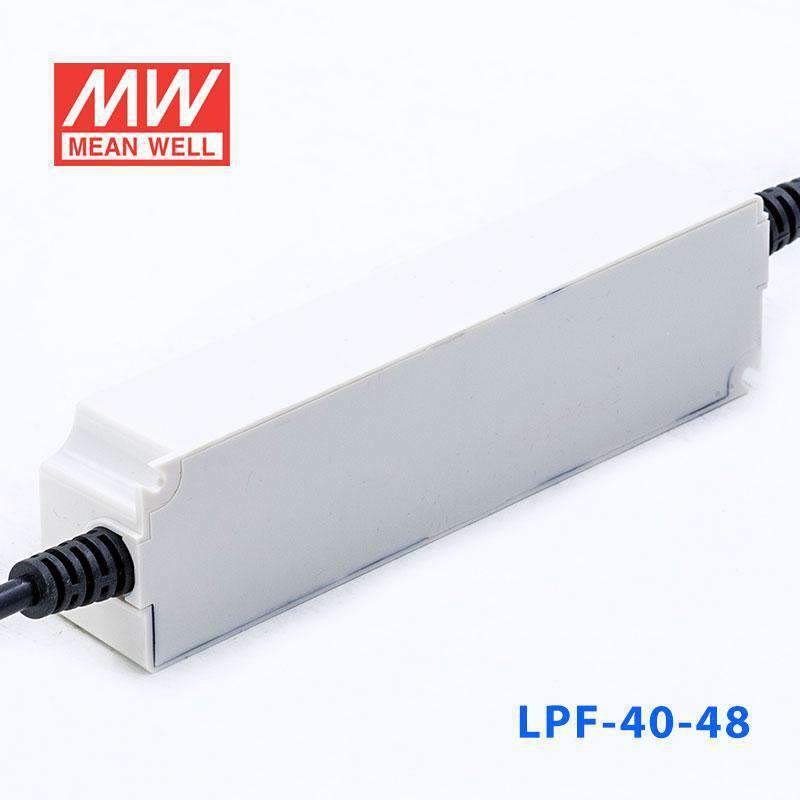

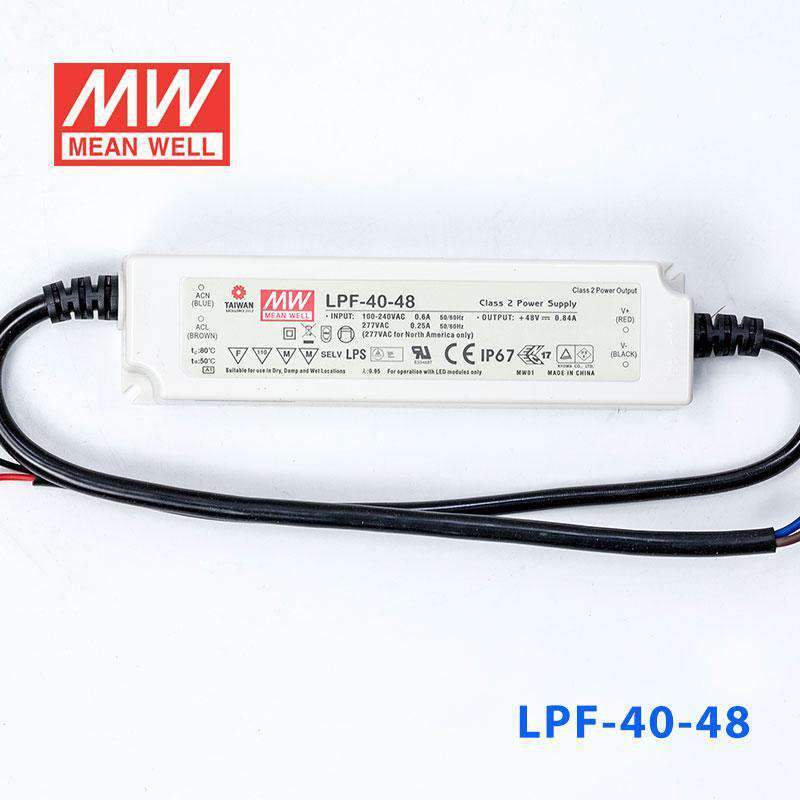

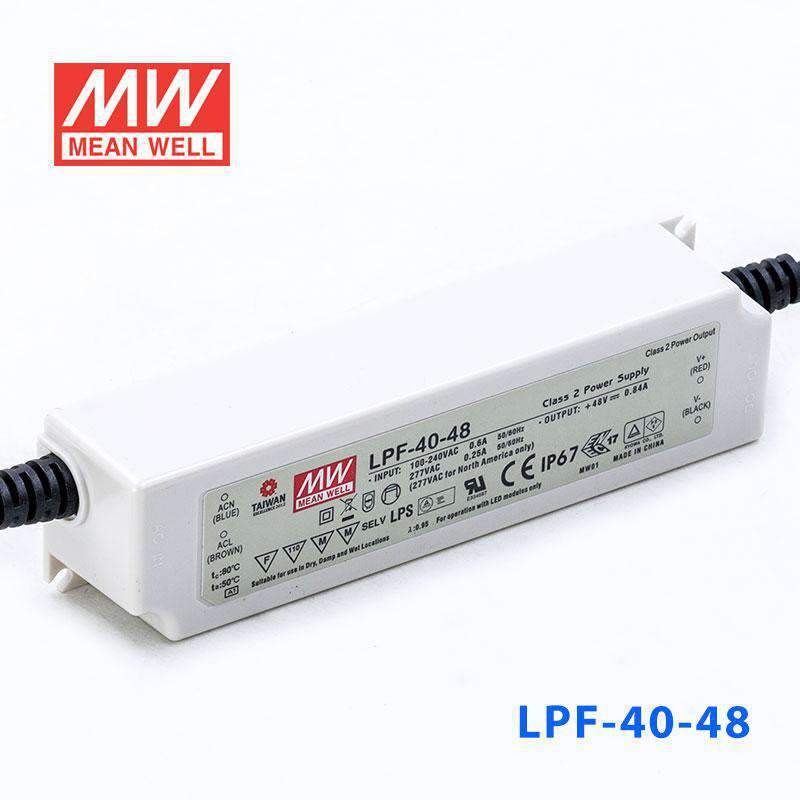

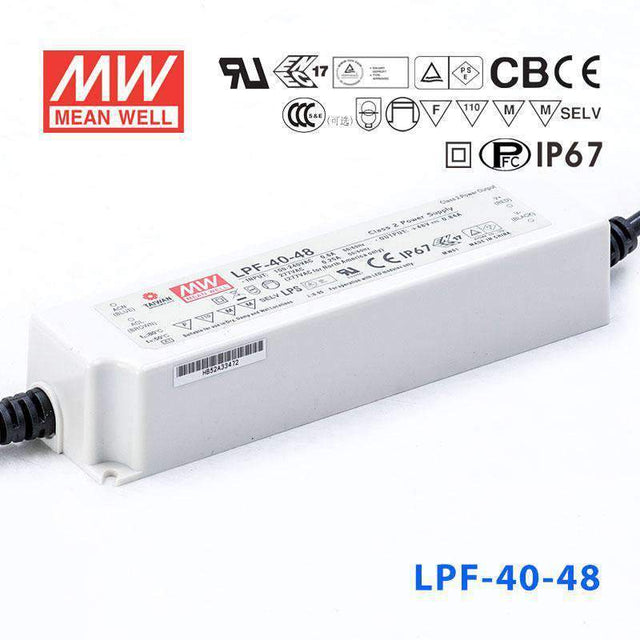

Mean Well LPF-40-48 Power Supply 40W 48V

Name: Mean Well LPF-40-48 Power Supply 40W 48V
Brand: Mean Well
SKU: LPF-40-48
Price: 29.01 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU:

LPF-40-48

$29.01 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The LPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

LPF Series
Power Rating

40.32 Watt
Output Voltage

48 Volt
Rated Current

0.84 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

6.4 in
Width

1.69 in
Height

1.26 in
Weight

0.97 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well LPF-40-24 Power Supply 40W 24V	40.08W	24V	1.67A	IP67	$31.48	View
Mean Well LPF-40-42 Power Supply 40W 42V	40.32W	42V	0.96A	IP67	$29.01	View
Mean Well LPF-40-20 Power Supply 40W 20V	40W	20V	2A	IP67	$29.01	View
Mean Well LPF-40-15 Power Supply 40W 15V	40.08W	15V	2.67A	IP67	$29.01	View
Mean Well LPF-40-54 Power Supply 40W 54V	41.04W	54V	0.76A	IP67	$29.01	View
