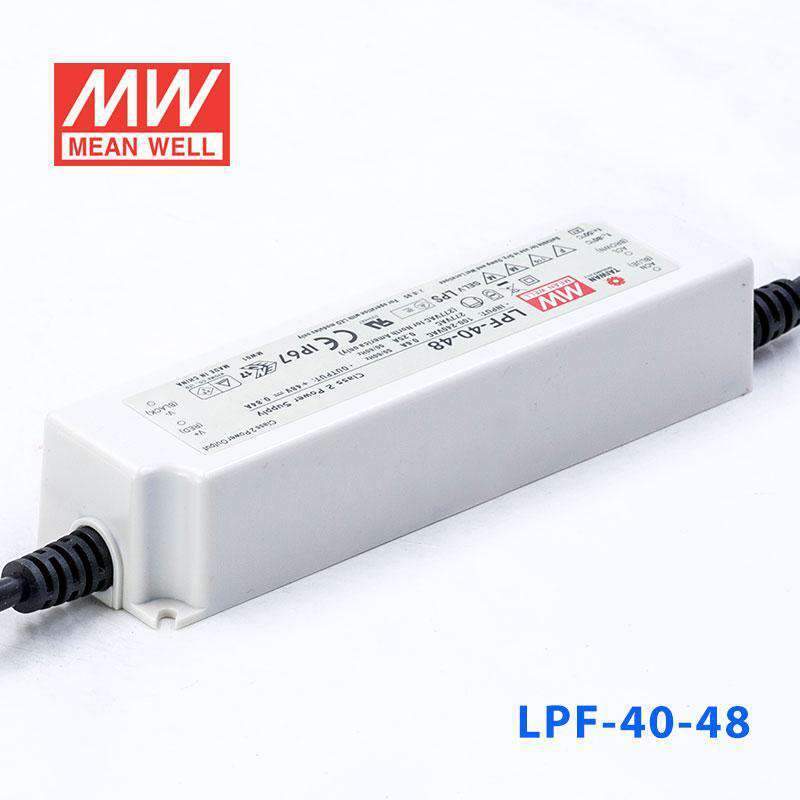

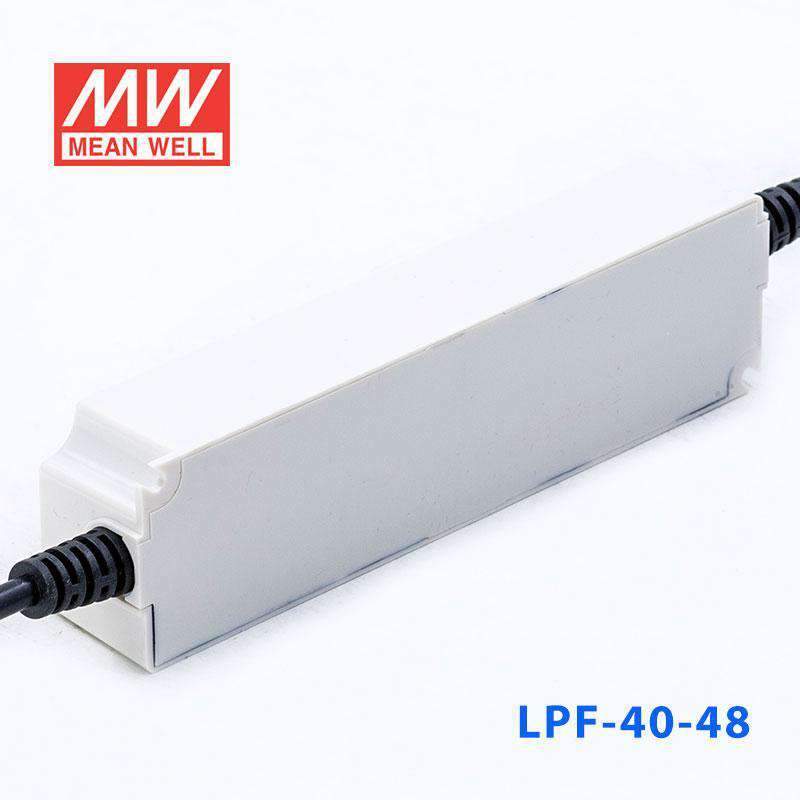

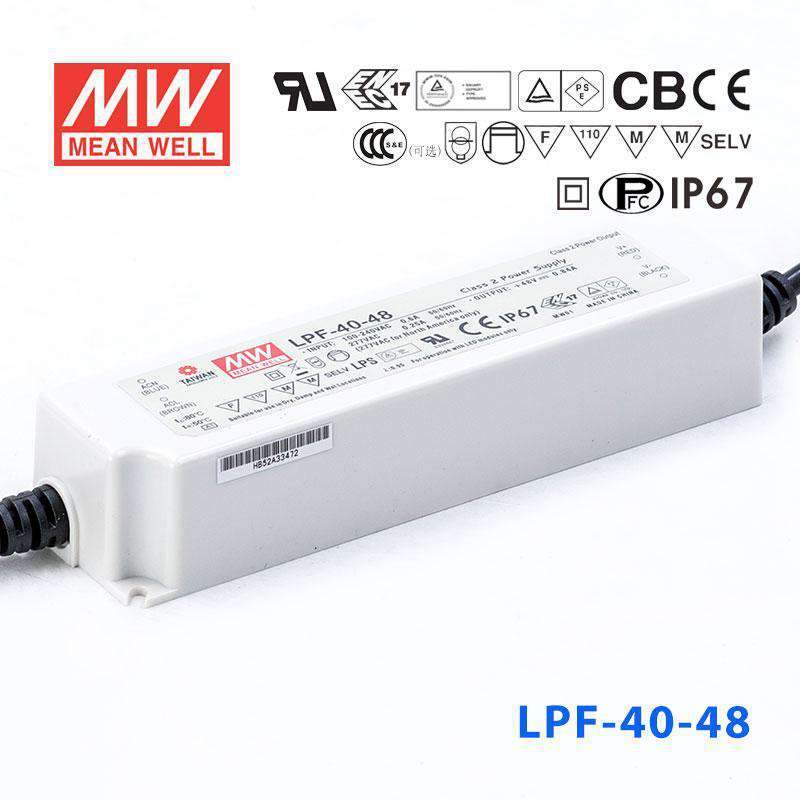

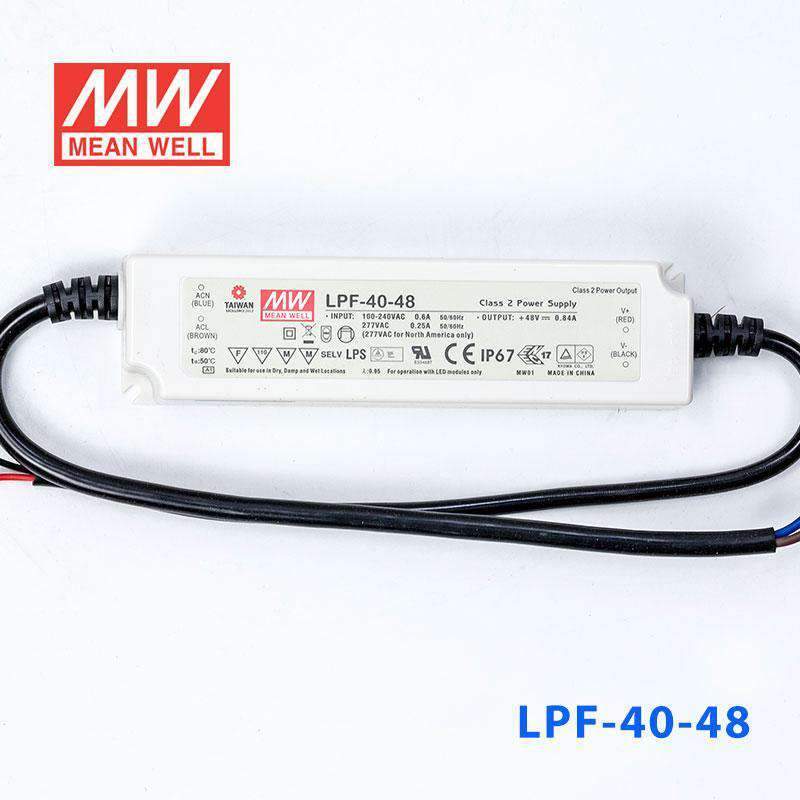

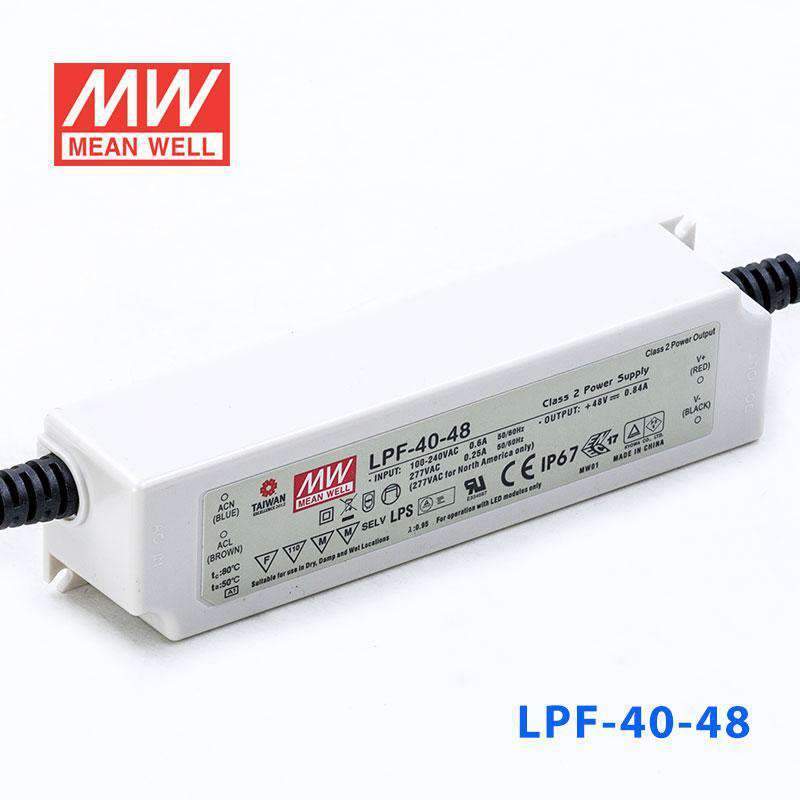

Mean Well LPF-40-48 Power Supply 40W 48V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 162.5x 43x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating40.32 Watt
-
Output Voltage48 Volt
-
Rated Current0.84 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.97 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-40-48 for a 48V LED sign or display light?
Yes, if the lighting load is a 48V constant-current type and operates within the 28-48V constant-current range. The LPF-40-48 delivers up to 40.32W at 48V and 0.84A.
Is the LPF-40-48 suitable for 48V architectural lighting?
It can be used for 48V constant-current architectural lighting loads that stay within 0.84A and 40.32W. The IP67 waterproof enclosure also supports use in more exposed lighting environments.
Can this driver run a 48V LED strip for accent or cove lighting?
It can only run a strip that is specifically designed for 48V constant-current operation. This driver is limited to 40.32W total output and 0.84A, so the strip load must match those figures.
How do I calculate the maximum 48V strip length for the LPF-40-48?
Use the driver’s 40.32W maximum output as the limit. Estimated strip length = 40.32W divided by your strip’s rated watts per meter, so check your strip rated power per meter before sizing it.
Is the LPF-40-48 appropriate for outdoor lighting projects?
Yes, it has an IP67 Waterproof rating for wet or outdoor use. It is also specified for operation from -40°C to +80°C.
How does the LPF-40-48 compare with the other 48V LPF models?
At 48V, the series includes LPF-16-48 at 16.32W and 0.34A, LPF-25-48 at 25.44W and 0.53A, LPF-40-48 at 40.32W and 0.84A, LPF-60-48 at 60W and 1.25A, and LPF-90-48 at 90.24W and 1.88A. Dimmable versions are LPF-16D-48, LPF-25D-48, LPF-40D-48, LPF-60D-48, and LPF-90D-48 with the same listed voltage and output ratings.
Other LPF-40 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-40-24 Power Supply 40W 24V | 40.08W | 24V | 1.67A | IP67 | $31.48 | View |
| Mean Well LPF-40-42 Power Supply 40W 42V | 40.32W | 42V | 0.96A | IP67 | $29.01 | View |
| Mean Well LPF-40-20 Power Supply 40W 20V | 40W | 20V | 2A | IP67 | $29.01 | View |
| Mean Well LPF-40-15 Power Supply 40W 15V | 40.08W | 15V | 2.67A | IP67 | $29.01 | View |
| Mean Well LPF-40-54 Power Supply 40W 54V | 41.04W | 54V | 0.76A | IP67 | $29.01 | View |
