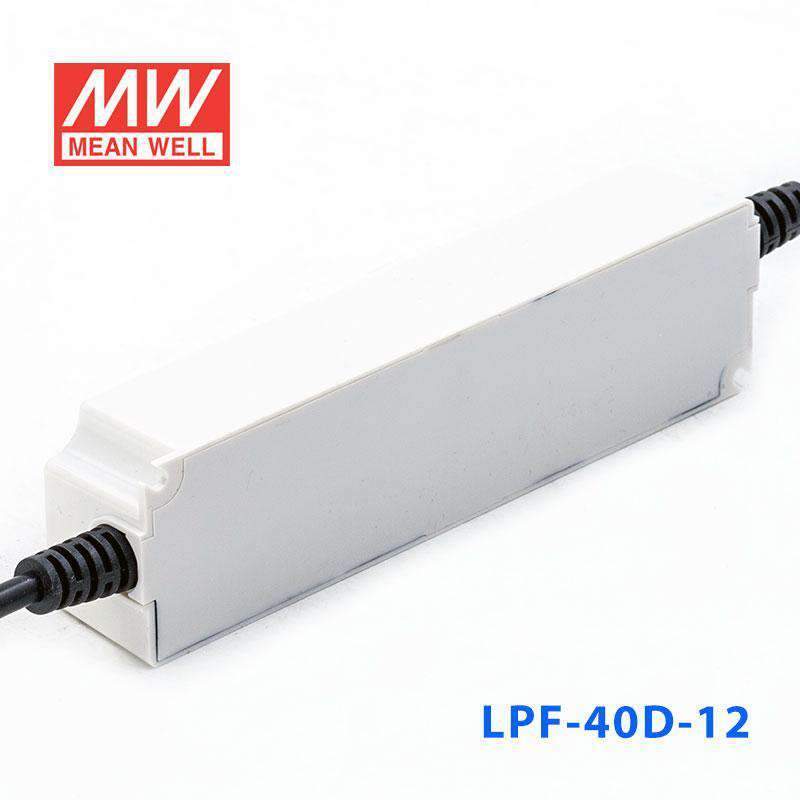

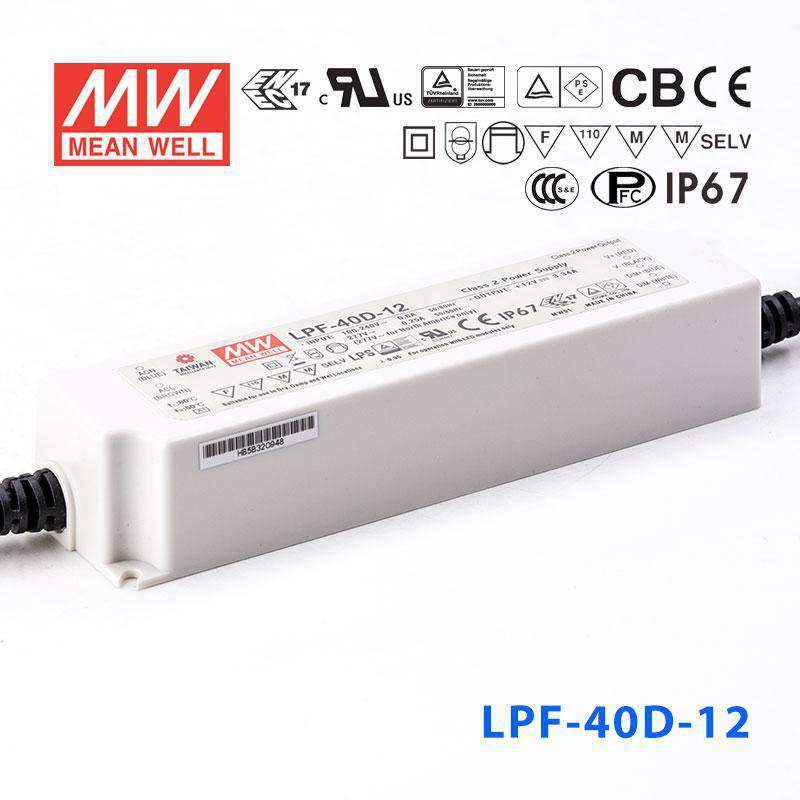

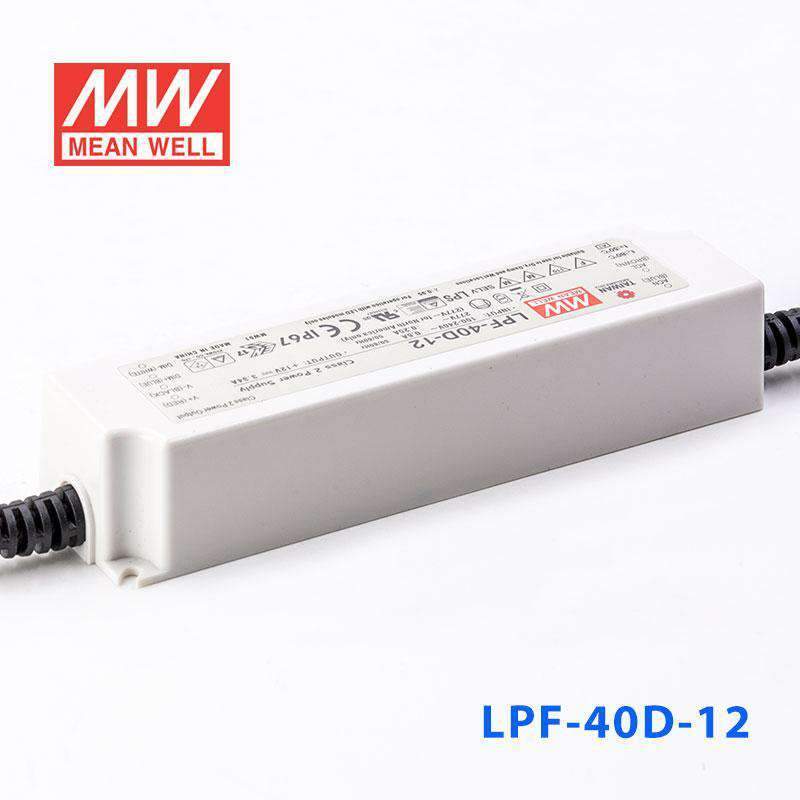

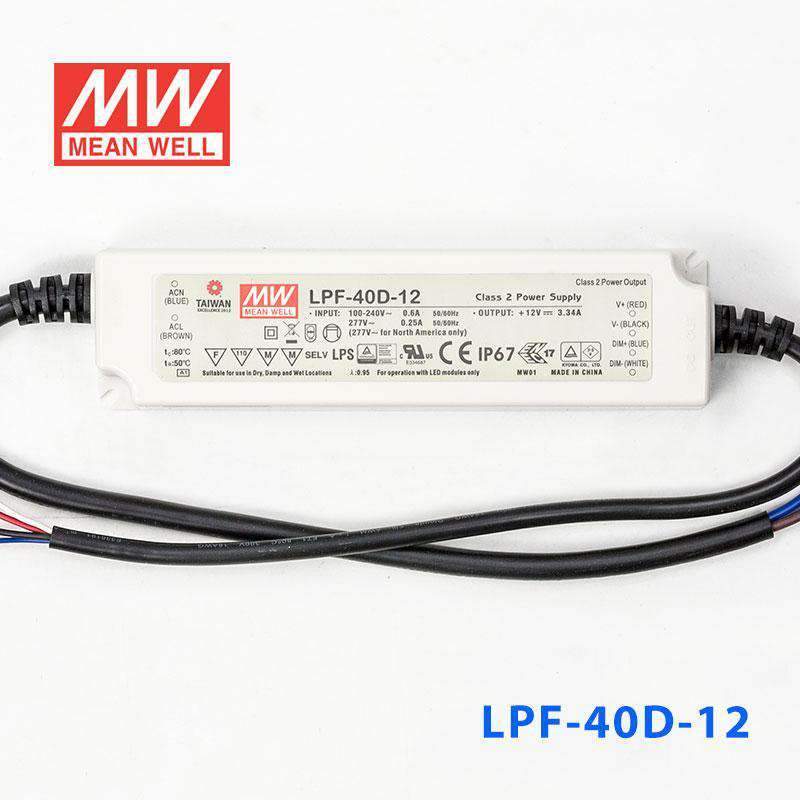

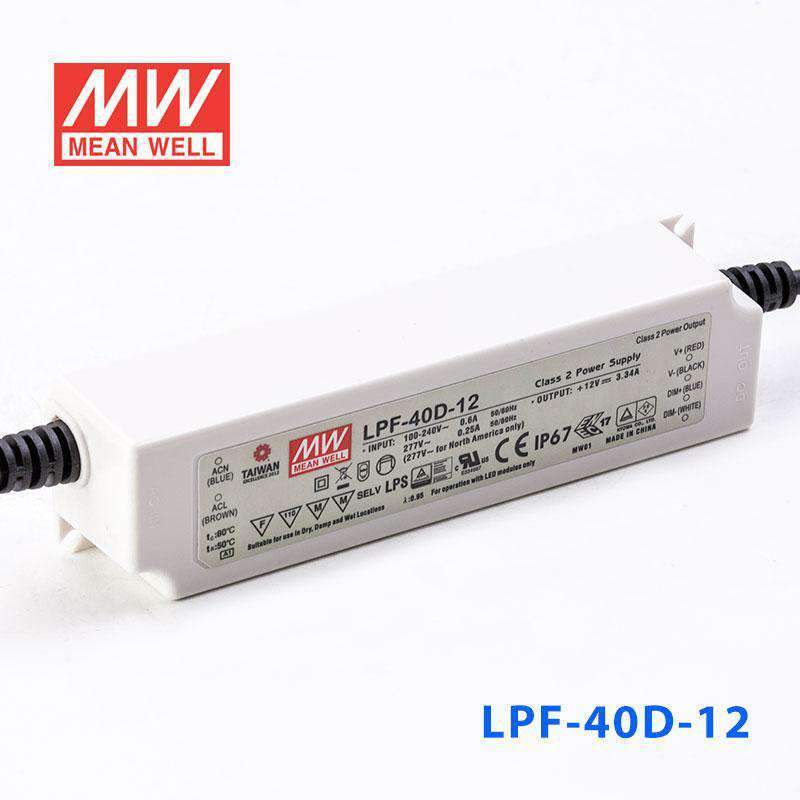

Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable
The LPF-40D is a 40W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384 J61347-1, J61347-2-13, ,EAC TP TC 004 GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating40.08 Watt
-
Output Voltage12 Volt
-
Rated Current3.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
Can I use the LPF-40D-12 for 12V LED strip lighting?
Yes, if the strip is a 12V constant-current load that operates within this driver’s 7-12V constant-current range. The LPF-40D-12 delivers up to 40.08W at 12V and 3.34A, and it includes built-in 3 in 1 dimming.
Is the LPF-40D-12 suitable for dimmable 12V display or signage lighting?
It can be used for 12V constant-current signage or display lighting loads that stay within 3.34A and 40.08W. This model also has built-in 3 in 1 dimming, which makes it suitable when dimming is required from the driver side.
Can this driver be used for 12V wet-location accent lighting?
Yes, for 12V constant-current accent lighting loads within its 7-12V range. The IP67 Waterproof rating supports use in wet or outdoor environments, and the operating temperature range is -40°C to +80°C.
How much 12V LED strip can the LPF-40D-12 support?
Use the driver’s 40.08W maximum output as the limit. Estimated strip length = 40.08W divided by your strip’s rated watts per meter, so check your strip rated power per meter before sizing the run.
Is the LPF-40D-12 waterproof enough for outdoor use?
Yes, it is rated IP67 Waterproof for wet or outdoor locations where that enclosure level is needed. The unit is also specified for operation from -40°C to +80°C.
How does the LPF-40D-12 compare with other dimmable 12V LPF models?
The dimmable 12V LPF siblings are LPF-16D-12 at 16.08W and 1.34A, LPF-25D-12 at 25.2W and 2.1A, LPF-40D-12 at 40.08W and 3.34A, and LPF-60D-12 at 60W and 5A. Compared with the non-dimmable LPF-40-12, this model keeps the same 40.08W, 12V, and 3.34A rating but adds built-in 3 in 1 dimming.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-40D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-40D-24 Power Supply 40W 24V - Dimmable | 40.08W | 24V | 1.67A | IP67 | $29.31 | View |
| Mean Well LPF-40D-36 Power Supply 40W 36V - Dimmable | 40.32W | 36V | 1.12A | IP67 | $29.31 | View |
| Mean Well LPF-40D-54 Power Supply 40W 54V - Dimmable | 41.04W | 54V | 0.76A | IP67 | $29.31 | View |
| Mean Well LPF-40D-48 Power Supply 40W 48V - Dimmable | 40.32W | 48V | 0.84A | IP67 | $27.78 | View |
| Mean Well LPF-40D-42 Power Supply 40W 42V - Dimmable | 40.32W | 42V | 0.96A | IP67 | $29.31 | View |
| Mean Well LPF-40D-30 Power Supply 40W 30V - Dimmable 1.34A | 40.2W | 30V | 1.34A | IP67 | $29.31 | View |
| Mean Well LPF-40D-20 Power Supply 40W 20V - Dimmable | 40W | 20V | 2A | IP67 | $31.11 | View |
| Mean Well LPF-40D-15 Power Supply 40W 15V - Dimmable | 40.08W | 15V | 2.67A | IP67 | $31.11 | View |
