Mean Well

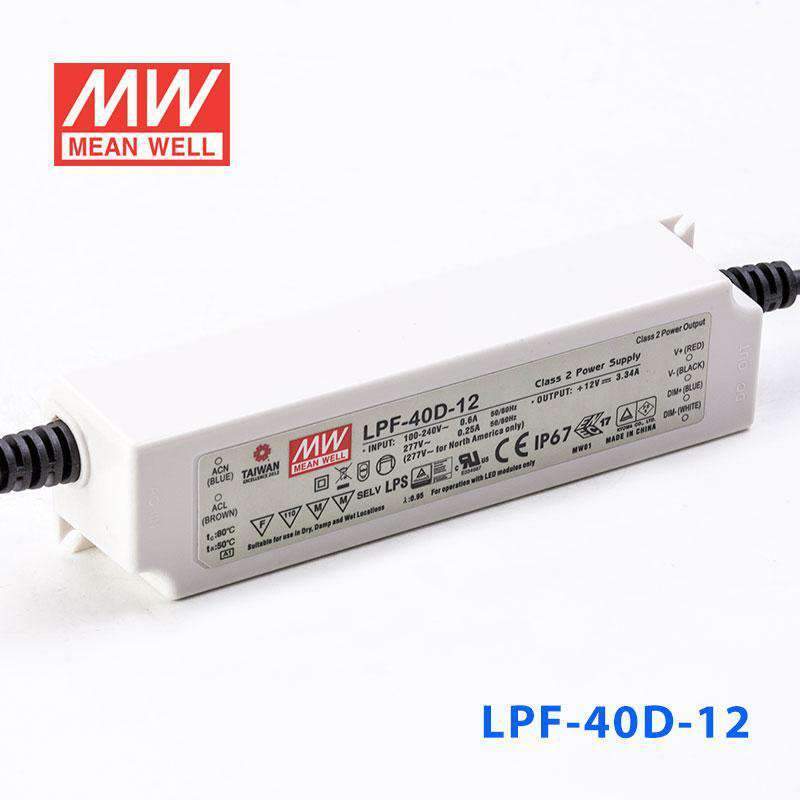

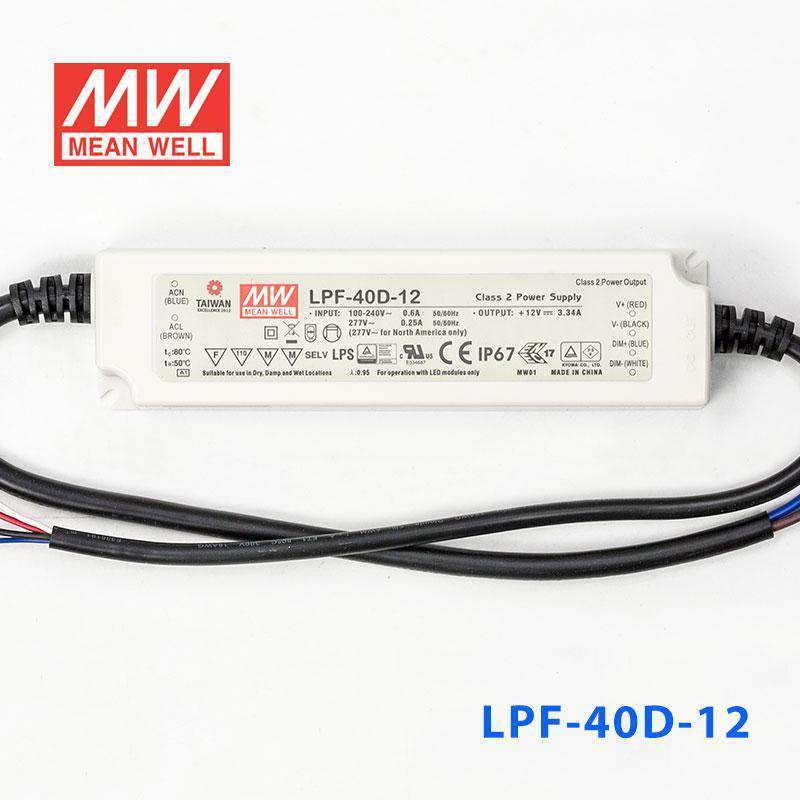

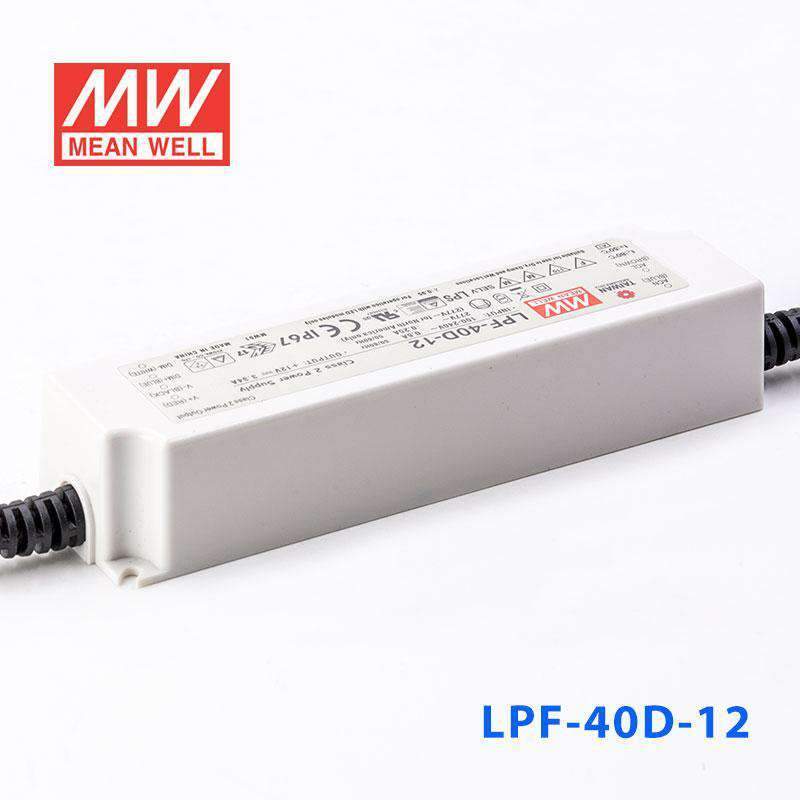

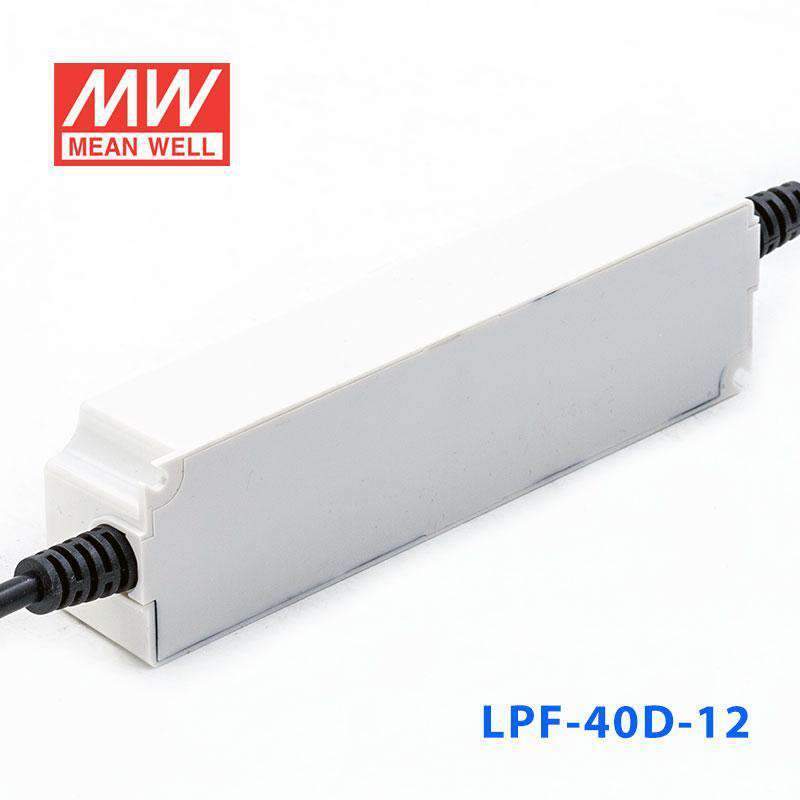

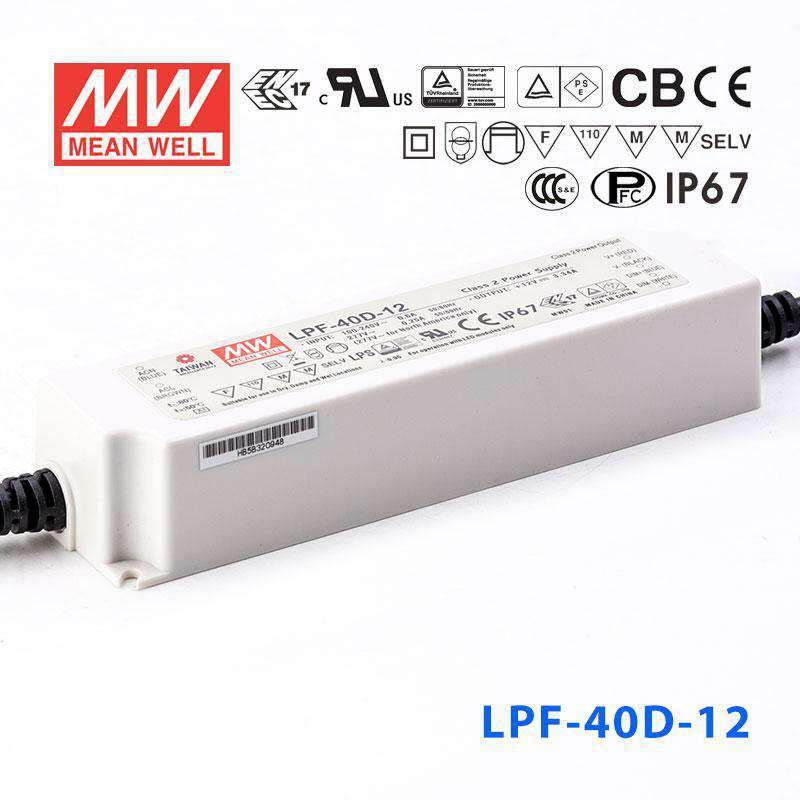

Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable

Name: Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable
Brand: Mean Well
SKU: LPF-40D-12
Price: 37.55 USD
Availability: InStock

Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable

2 units in stock

$37.55 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	18AWGx2C(30cm)+22AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32
