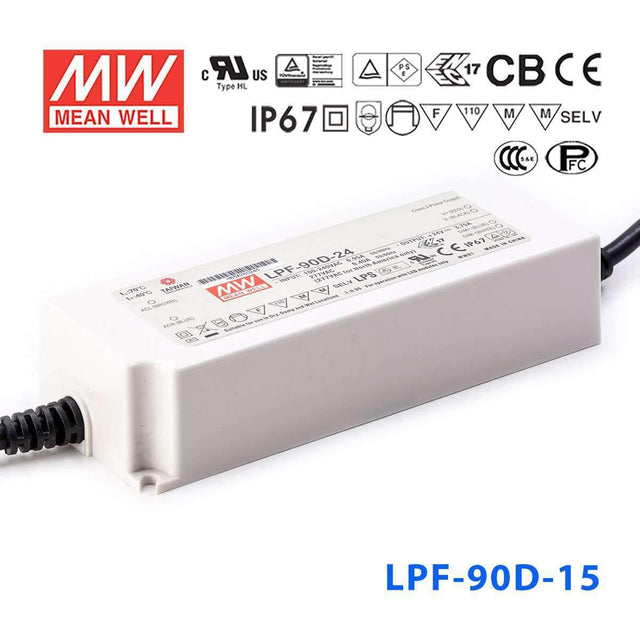

Mean Well LPF-90D-15 Power Supply 75W 15V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-90D-15 Power Supply 75W 15V - Dimmable
The LPF-90D is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90D-15 for 15V LED strip or sign lighting that needs dimming?
Yes, it can be used for 15V LED strip or sign lighting when the load matches the 15V output and stays within 75W. This driver is constant current with a 9-15V range and includes built-in 3 in 1 dimming, so the lighting load needs to fit that electrical range.
Is the LPF-90D-15 a good fit for low-voltage architectural or accent lighting?
It fits 15V architectural or accent lighting loads that require up to 5A and up to 75W total. The constant current range is 9-15V, so the fixture should be designed to operate within that range.
Can the LPF-90D-15 be used for outdoor 15V decorative lighting?
Yes, this model is rated IP67 waterproof and operates from -40°C to +70°C, so it is suitable for outdoor decorative lighting projects where those limits apply. It also includes built-in 3 in 1 dimming for applications that need light level control.
How much 15V LED strip can the LPF-90D-15 power?
The driver's maximum power is 75W, so maximum strip length is calculated as 75W divided by the strip's watts per meter. For example, length = 75W / rated W per meter. Check your strip rated power per meter and keep the total load within 75W.
Is the LPF-90D-15 suitable for wet locations?
Yes, it has an IP67 waterproof rating and an operating temperature range of -40°C to +70°C. That makes it suitable for wet or exposed locations when the environment stays within those limits.
How does the LPF-90D-15 compare with the other LPF-90D models?
The LPF-90D dimming family includes LPF-90D-15 at 75W, 15V, 5A; LPF-90D-20 at 90W, 20V, 4.5A; LPF-90D-24 at 90W, 24V, 3.75A; LPF-90D-30 at 90W, 30V, 3A; LPF-90D-36 at 90W, 36V, 2.5A; LPF-90D-42 at 90.3W, 42V, 2.15A; LPF-90D-48 at 90.24W, 48V, 1.88A; and LPF-90D-54 at 90.18W, 54V, 1.67A. The non-dimming LPF-90 versions share those output classes without the built-in 3 in 1 dimming feature.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-90D Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $45.63 | View |
| Mean Well LPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | $45.63 | View |
| Mean Well LPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $47.09 | View |
| Mean Well LPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $45.63 | View |
| Mean Well LPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $45.63 | View |
| Mean Well LPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $41.38 | View |
| Mean Well LPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $45.63 | View |
