Mean Well

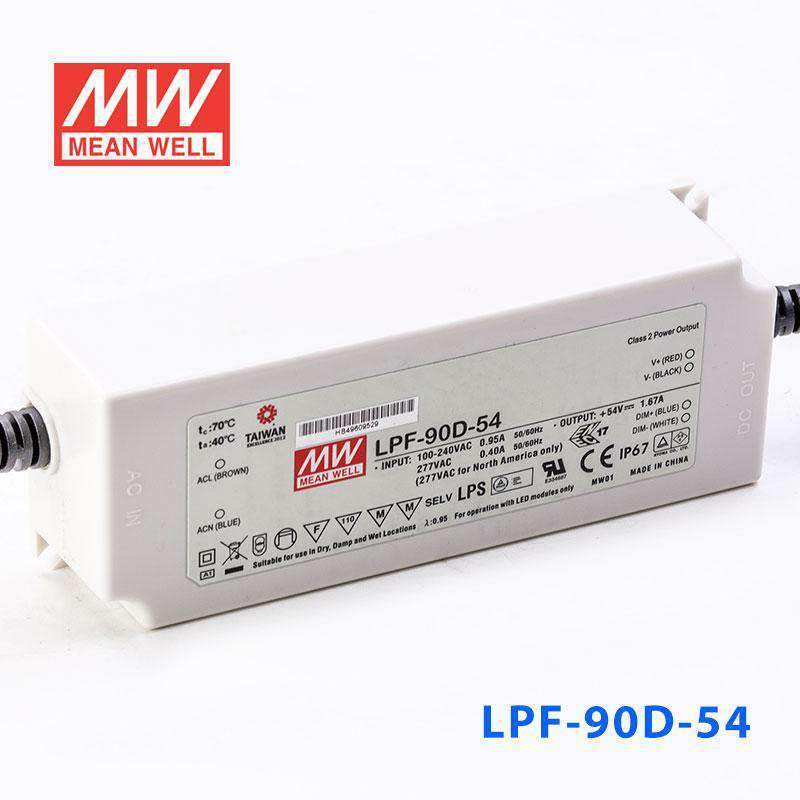

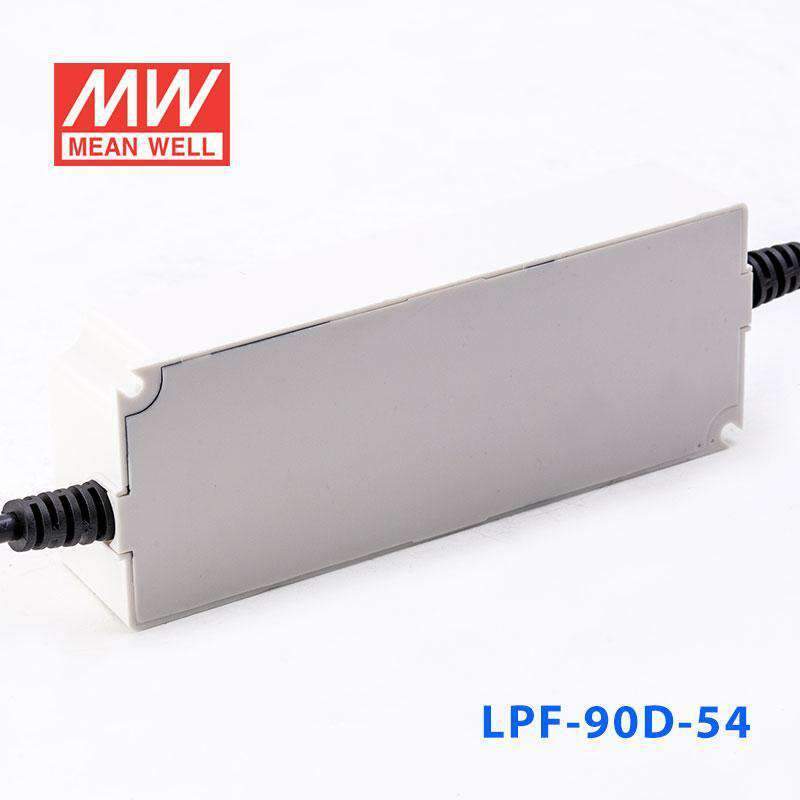

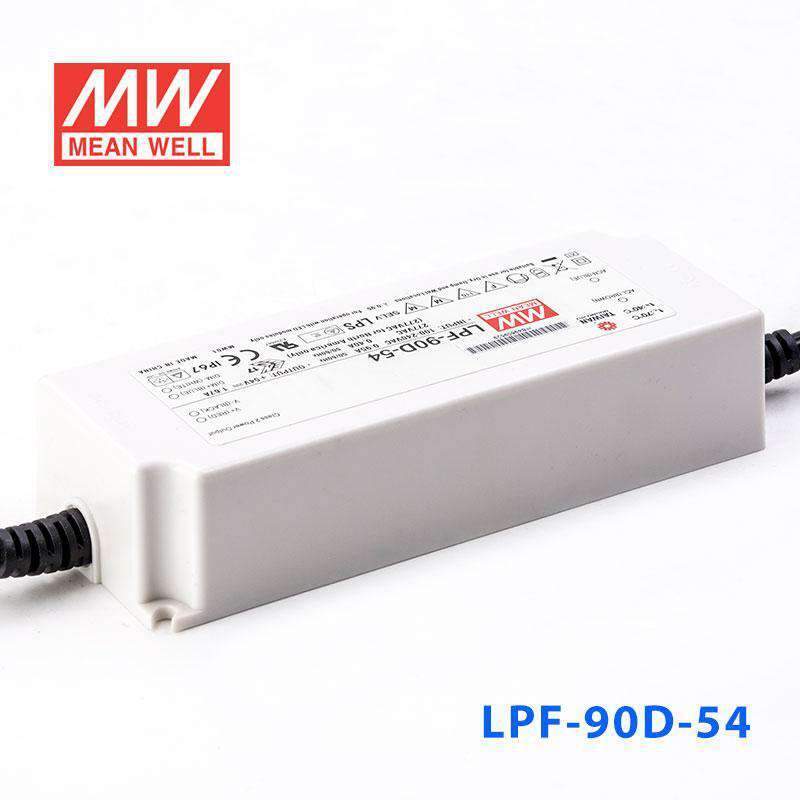

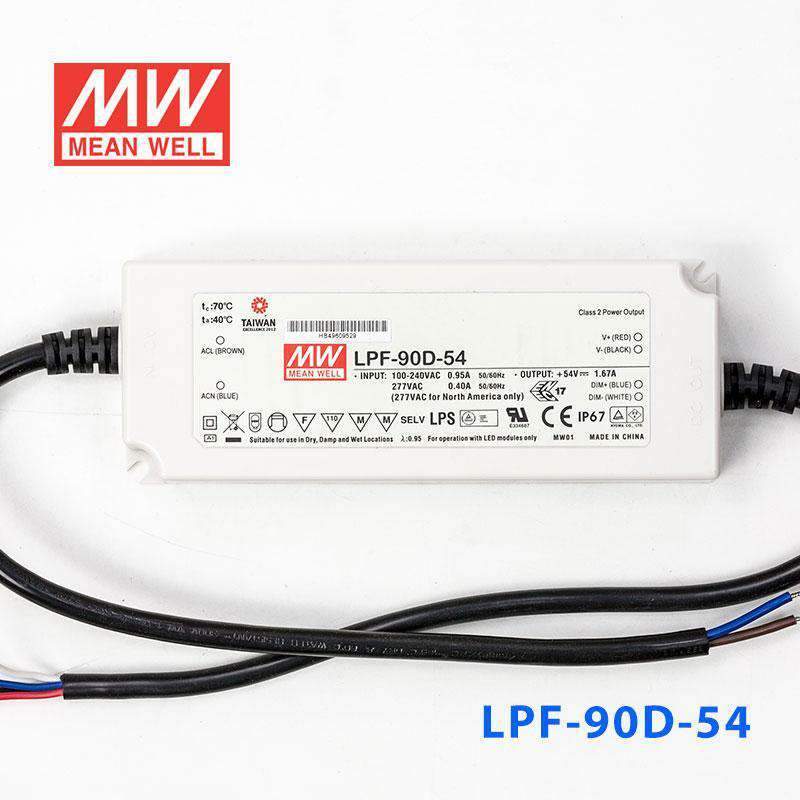

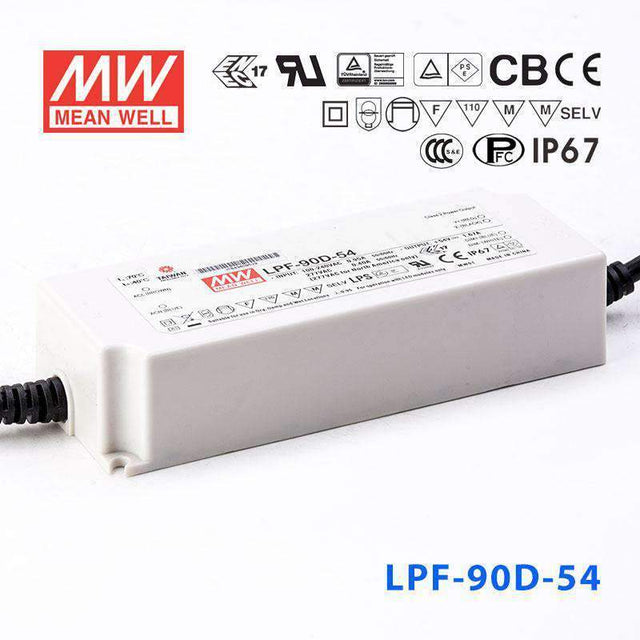

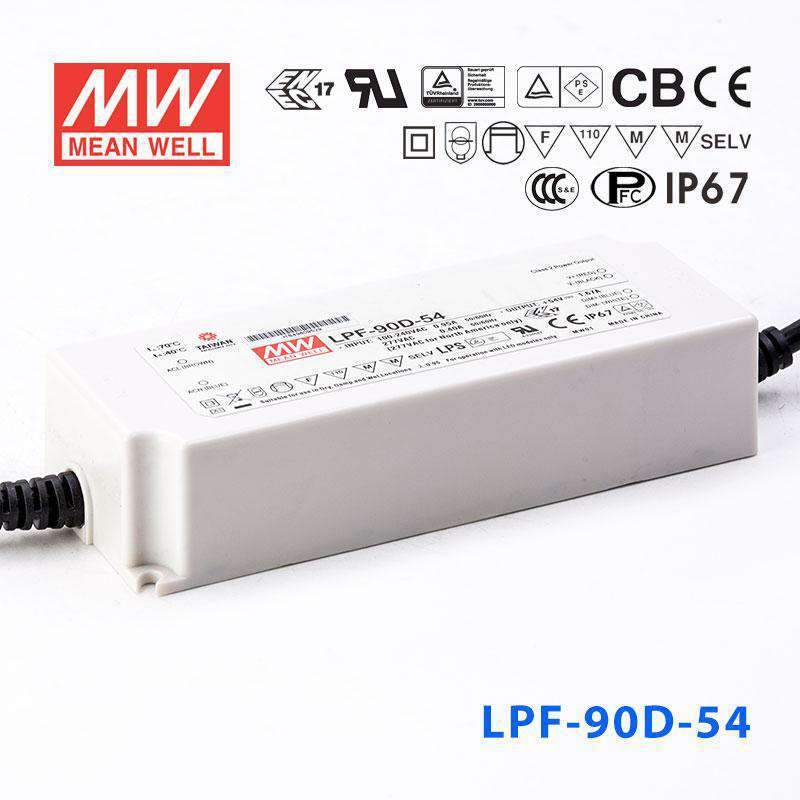

Mean Well LPF-90D-54 Power Supply 90W 54V - Dimmable

Name: Mean Well LPF-90D-54 Power Supply 90W 54V - Dimmable
Brand: Mean Well
SKU: LPF-90D-54
Price: 50.7 USD
Availability: InStock

10 units in stock

$50.70 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 55A at 230VAC
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL2464 18AWGx4C (30cm)
Dimension (LxWxH)(mm)	161x 61x 36
