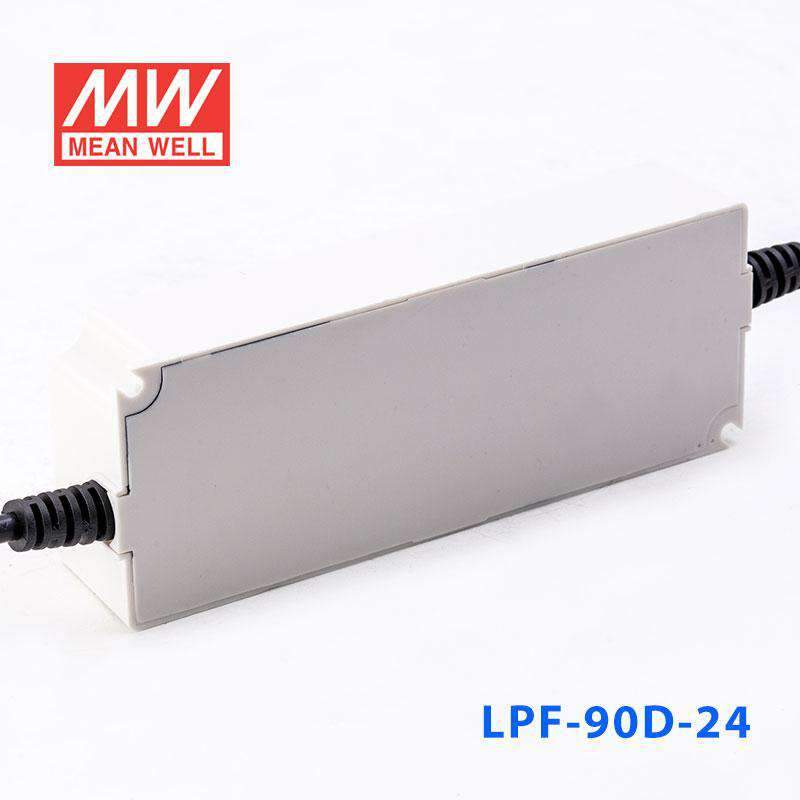

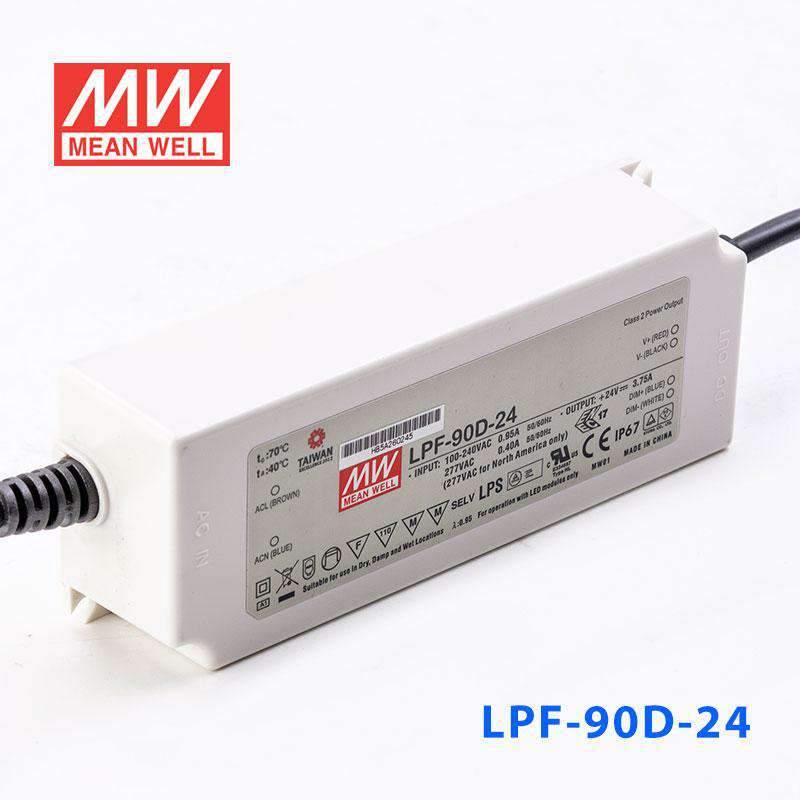

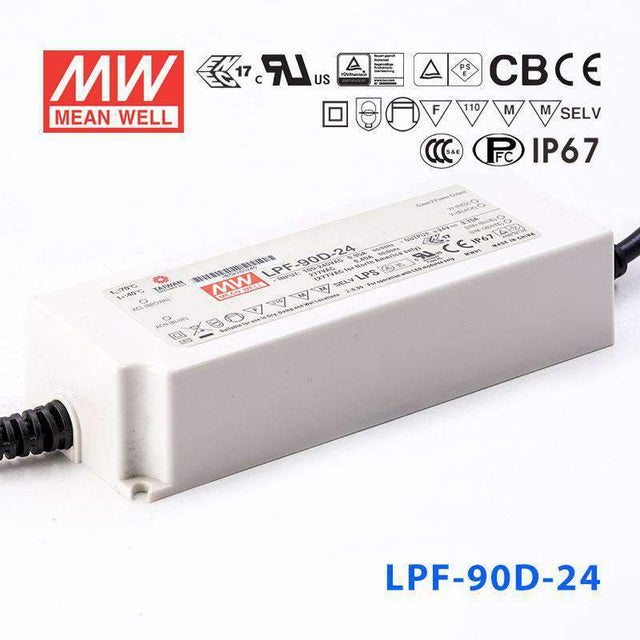

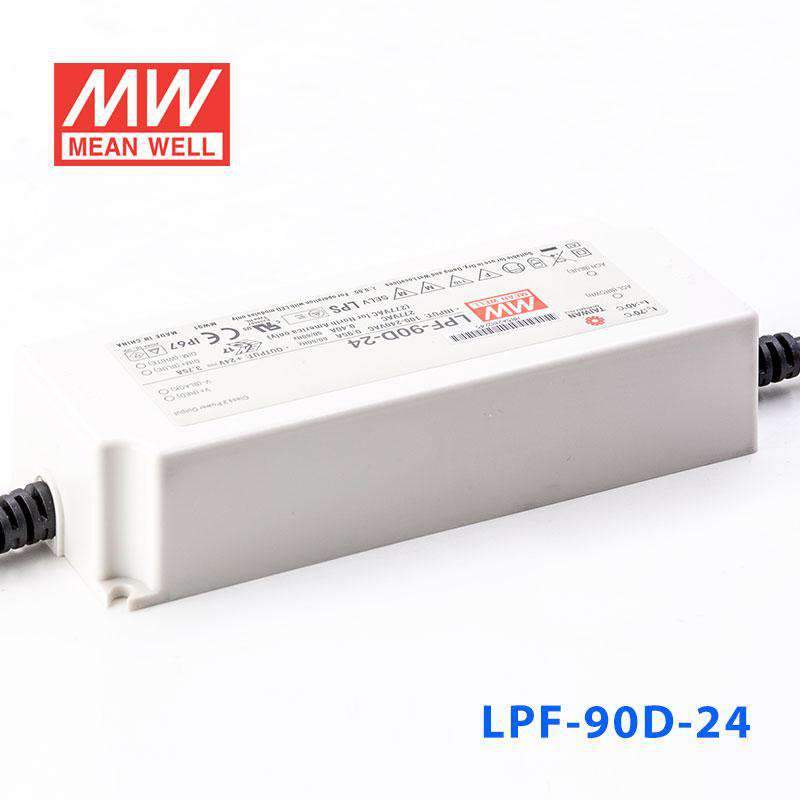

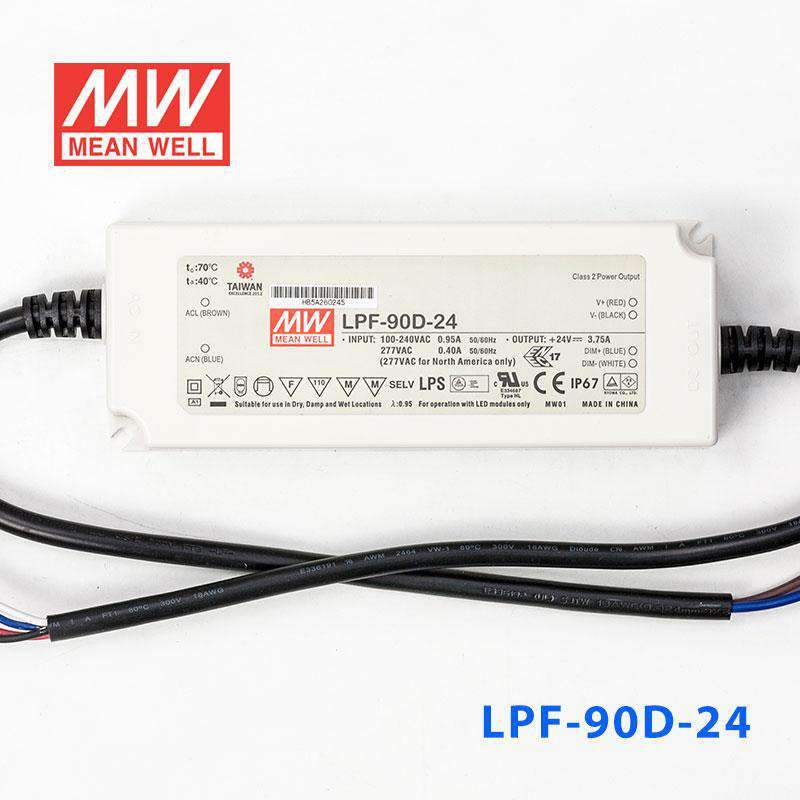

Mean Well LPF-90D-24 Power Supply 90W 24V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-90D-24 Power Supply 90W 24V - Dimmable
The LPF-90D is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90D-24 for a 24V LED strip installation?
Yes, if the strip is designed for 24V and the full run stays within 90W. This unit provides 24V at 3.75A, so it is suitable for larger 24V strip lighting loads, but check your strip rated power per meter before sizing.
Is the LPF-90D-24 a good fit for 24V sign lighting?
It can be used for 24V LED signage and illuminated display projects where the load does not exceed 90W. The IP67 waterproof rating is useful when the sign or enclosure is exposed to weather or washdown conditions.
Can this model run 24V linear or accent lighting in indoor and outdoor spaces?
Yes, for 24V lighting products that operate within the 14-24V constant-current range and stay at or below 3.75A. Its IP67 housing and -40°C to +70°C operating range make it suitable for both sheltered indoor use and harsher outdoor conditions.
How do I estimate the maximum 24V LED strip length for the LPF-90D-24?
Use the formula: maximum strip length = 90W divided by the strip wattage per meter. This driver is limited to 90W total output at 24V and 3.75A, so check your strip rated power per meter before deciding the run length.
Can the LPF-90D-24 be used outdoors or in wet areas?
Yes. It is rated IP67 waterproof and operates from -40°C to +70°C, so it is built for wet, dusty, and outdoor environments as well as indoor applications.
What are the differences between the LPF-90D-24 and the other LPF-90D versions?
The LPF-90D dimmable siblings are LPF-90D-15 at 75W, 15V, 5A; LPF-90D-20 at 90W, 20V, 4.5A; LPF-90D-30 at 90W, 30V, 3A; LPF-90D-36 at 90W, 36V, 2.5A; LPF-90D-42 at 90.3W, 42V, 2.15A; LPF-90D-48 at 90.24W, 48V, 1.88A; and LPF-90D-54 at 90.18W, 54V, 1.67A. The LPF-90D-24 itself is the 24V, 3.75A, 90W member of that series.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-90D Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $45.63 | View |
| Mean Well LPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | $45.63 | View |
| Mean Well LPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $47.09 | View |
| Mean Well LPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $45.63 | View |
| Mean Well LPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $45.63 | View |
| Mean Well LPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $45.63 | View |
| Mean Well LPF-90D-15 Power Supply 75W 15V - Dimmable | 75W | 15V | 5A | IP67 | $45.63 | View |
