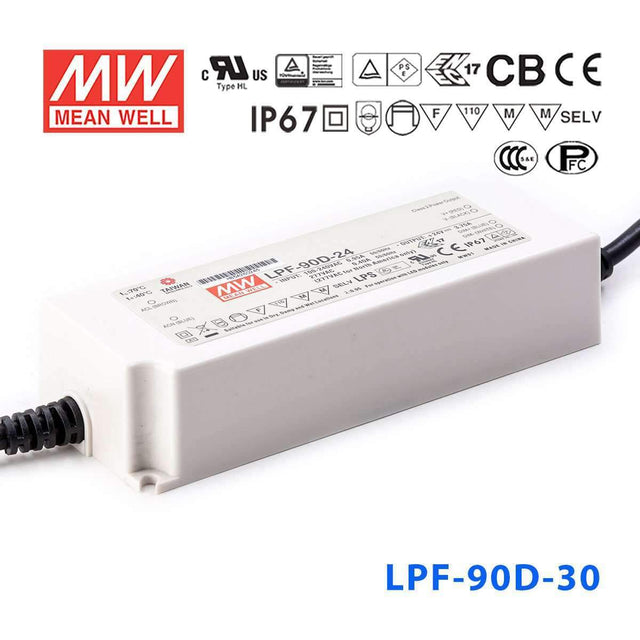

Mean Well LPF-90D-30 Power Supply 90W 30V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-90D-30 Power Supply 90W 30V - Dimmable
The LPF-90D is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90 Watt
-
Output Voltage30 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90D-30 with a 30V LED strip or tape light system?
Yes, if the lighting product is designed for 30V and the total load stays within 90W. This model outputs 30V at 3A, so it can support a larger 30V strip load than lower-wattage 30V drivers, but check your strip rated power per meter before sizing.
Is the LPF-90D-30 suitable for 30V channel-letter or cabinet sign lighting?
It can be used where the sign lighting system is built around 30V LED modules or strips and stays at or below 90W. The IP67 waterproof rating is also appropriate for exposed signage or damp commercial environments.
Can this driver power a 30V LED lighting fixture in harsh conditions?
Yes, for 30V lighting products operating within the 18-30V constant-current range and not exceeding 3A. The unit is IP67 waterproof and rated for -40°C to +70°C operation, which supports demanding indoor and outdoor use.
How much 30V LED strip can the LPF-90D-30 handle?
Calculate it as 90W divided by the strip wattage per meter. Because this driver is limited to 90W total at 30V and 3A, the final strip length depends on your strip rated power per meter, so check that value before choosing a run length.
Is the LPF-90D-30 waterproof enough for outdoor lighting projects?
Yes. It carries an IP67 waterproof rating and works from -40°C to +70°C, so it is suitable for outdoor or wet-area lighting applications when the rest of the system is matched appropriately.
How does the LPF-90D-30 fit within the LPF-90D family?
The dimmable LPF-90D options are LPF-90D-15 at 75W, 15V, 5A; LPF-90D-20 at 90W, 20V, 4.5A; LPF-90D-24 at 90W, 24V, 3.75A; LPF-90D-36 at 90W, 36V, 2.5A; LPF-90D-42 at 90.3W, 42V, 2.15A; LPF-90D-48 at 90.24W, 48V, 1.88A; and LPF-90D-54 at 90.18W, 54V, 1.67A. The LPF-90D-30 is the 30V, 3A, 90W version in that group.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-90D Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $45.63 | View |
| Mean Well LPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | $45.63 | View |
| Mean Well LPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $47.09 | View |
| Mean Well LPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $45.63 | View |
| Mean Well LPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $41.38 | View |
| Mean Well LPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $45.63 | View |
| Mean Well LPF-90D-15 Power Supply 75W 15V - Dimmable | 75W | 15V | 5A | IP67 | $45.63 | View |
