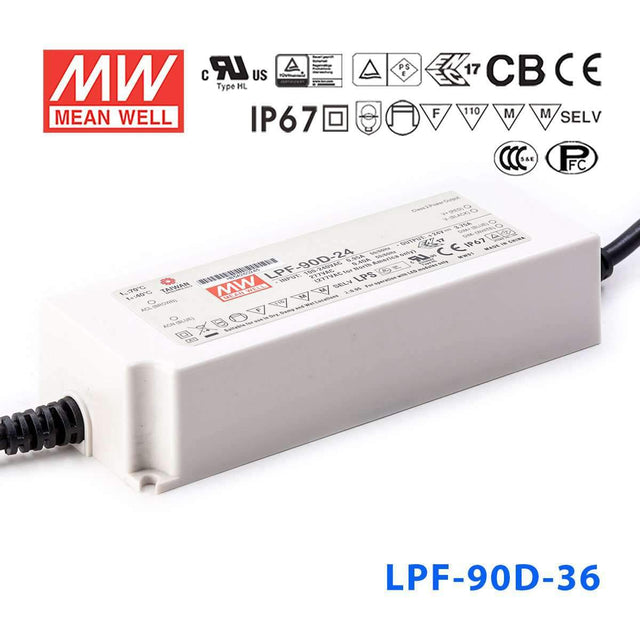

Mean Well LPF-90D-36 Power Supply 90W 36V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-90D-36 Power Supply 90W 36V - Dimmable
The LPF-90D is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90 Watt
-
Output Voltage36 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90D-36 for a 36V LED strip lighting application?
Yes, if the strip or fixture is designed for 36V and the total load does not exceed 90W. This model delivers 36V at 2.5A, so it is intended for 36V lighting loads within that power limit, but check your strip rated power per meter before sizing.
Is the LPF-90D-36 suitable for 36V illuminated signage or display lighting?
It can be used for 36V sign lighting systems that stay within 90W total output. Its IP67 waterproof construction also makes it suitable for signage exposed to moisture or outdoor conditions.
Can this model run 36V architectural or commercial LED lighting outdoors?
Yes, for 36V lighting products that operate within the 21-36V constant-current range and draw no more than 2.5A. The IP67 rating and -40°C to +70°C operating range support challenging indoor and outdoor environments.
How do I calculate the maximum 36V LED strip length on the LPF-90D-36?
Use maximum length = 90W divided by your strip wattage per meter. Since this driver is rated 90W total at 36V and 2.5A, the exact run length depends on the strip rated power per meter, so verify that before sizing.
Can the LPF-90D-36 be used in wet or exposed locations?
Yes. The unit is IP67 waterproof and rated for operation from -40°C to +70°C, so it is designed for wet, dusty, and outdoor environments as well as indoor lighting use.
What are the sibling options around the LPF-90D-36?
Other dimmable LPF-90D models are LPF-90D-15 at 75W, 15V, 5A; LPF-90D-20 at 90W, 20V, 4.5A; LPF-90D-24 at 90W, 24V, 3.75A; LPF-90D-30 at 90W, 30V, 3A; LPF-90D-42 at 90.3W, 42V, 2.15A; LPF-90D-48 at 90.24W, 48V, 1.88A; and LPF-90D-54 at 90.18W, 54V, 1.67A. The LPF-90D-36 itself is the 36V, 2.5A, 90W option.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-90D Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $45.63 | View |
| Mean Well LPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | $45.63 | View |
| Mean Well LPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $47.09 | View |
| Mean Well LPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $45.63 | View |
| Mean Well LPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $41.38 | View |
| Mean Well LPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $45.63 | View |
| Mean Well LPF-90D-15 Power Supply 75W 15V - Dimmable | 75W | 15V | 5A | IP67 | $45.63 | View |
