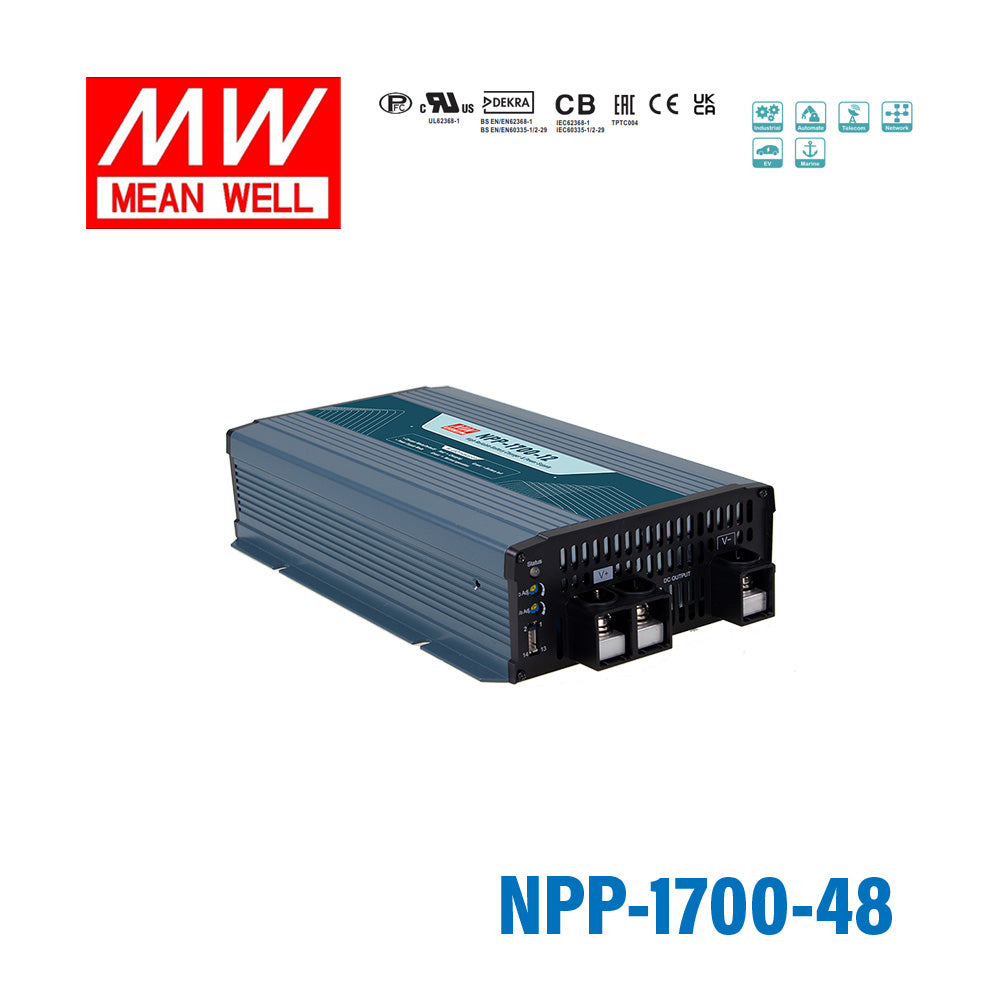

Mean Well NPP-1700-48 1680W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPP-1700-48 1680W 48V Battery Charge& Power Supply 2-...
NPP-1700's key features include ultra-wide output voltage, adjustable output voltage via VR on front panel (10.5~21V, 21~42V, 42~80V), adjust output current from 50~100%, built-in thermal controlled cooling fan to reduce noise, -30~+70°C operating temperature, built-in remote ON/OFF control, compliance to ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety, multiple built-in intelligent protection functions, and 3 years warranty.
FEATURES
-
BrandMean Well
-
SeriesNPP Series
-
Power Rating1700 Watt
-
Output Voltage57.6 Volt
-
Rated Current25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length11.81 in
-
Width7.24 in
-
Height2.76 in
-
Weight6.53 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPP-1700-48 designed for?
The NPP-1700-48 is a 2-in-1 unit that can operate as either a battery charger or a power supply, depending on the selected mode. It is intended for high-power 48V-class applications where flexibility between charging and DC output use is valuable.
What are the main output ratings of the NPP-1700-48?
This model is rated for 1680W output power with a nominal output voltage of 57.6V and rated current of 25A. It also supports adjustable output voltage and output current within the ranges described by Mean Well for the NPP-1700 series.
Can the NPP-1700-48 be used with different battery chemistries?
Yes. Mean Well states that the NPP-1700 series is suitable for lead-acid and li-ion batteries. That makes this model relevant for buyers comparing one charger platform across multiple battery-based systems.
How does the NPP-1700-48 differ from a standard fixed-output power supply?
Unlike a standard power supply, this model supports both power supply mode and battery charging mode in a single unit. It also includes a 3-stage charging curve for charging applications, which is a key distinction for battery-focused use cases.
Is the NPP-1700-48 suitable for demanding temperature conditions?
Yes. The specified operating temperature range is -30°C to +70°C, which supports use in harsh industrial or commercial environments. It also includes a thermal-controlled cooling fan to help reduce noise while managing heat.
What protection and safety features does the NPP-1700-48 include?
This model includes built-in protection for short circuit, overload, over voltage, and over temperature conditions. It is also listed with multiple safety approvals, including CB, UL, DEKRA, EAC, CE, and UKCA, with compliance to IEC/EN/UL62368-1 and EN60335-1/-2-29.
Is the output adjustable on the NPP-1700-48?
Yes. Mean Well specifies adjustable output voltage via the front-panel potentiometer and adjustable output current from 50% to 100%. This helps buyers fine-tune the unit for application needs within the supported NPP-1700 series ranges.
What warranty is provided with the NPP-1700-48?
The NPP-1700-48 includes a 3-year warranty. That coverage aligns with the product's positioning as a high-power industrial battery charger and power supply solution.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPP-1700 Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPP-1700-24 1680W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper | 1700 Watt | Lithium and Lead Acid Battery | — | — | $319.75 | View |
| Mean Well NPP-1700-12 1428W 12V Battery Charge& Power Supply 2-in-1, Selectable via Jumper | 1700 Watt | Lithium and Lead Acid Battery | — | — | $319.75 | View |
