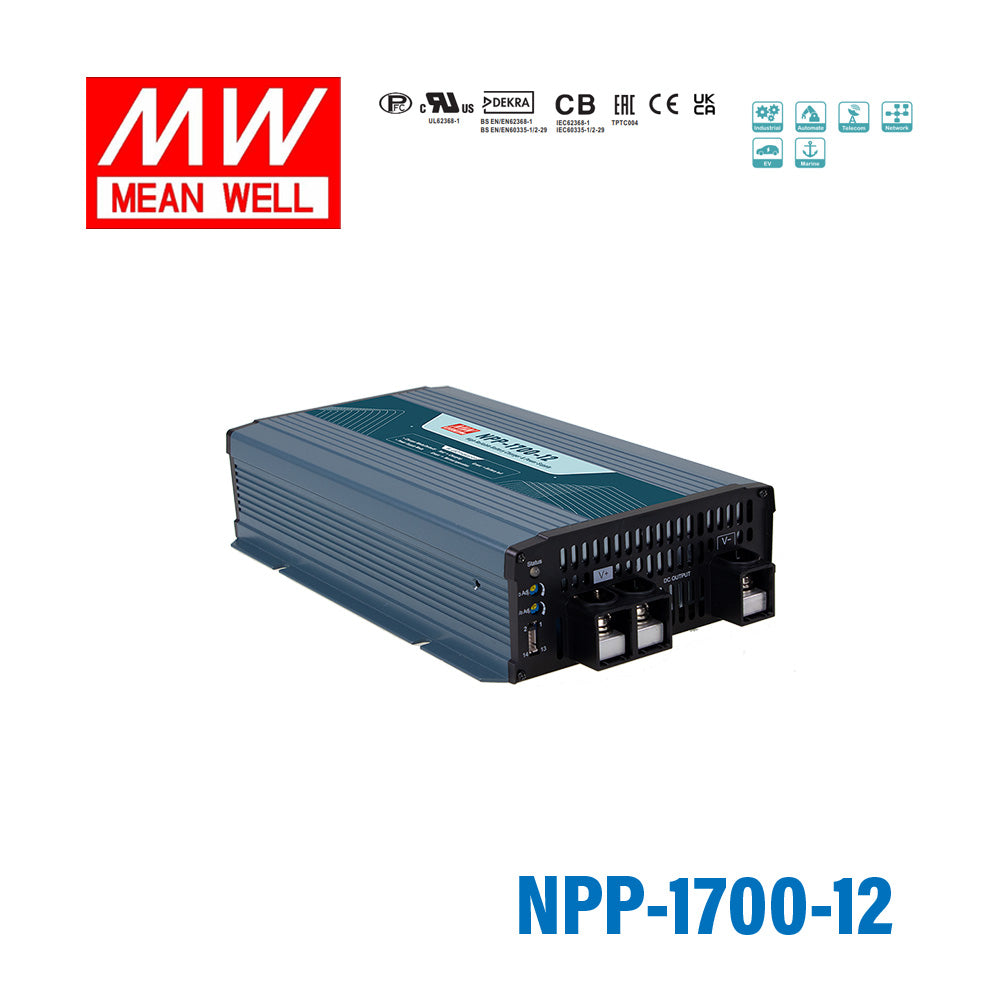

Mean Well NPP-1700-12 1428W 12V Battery Charge& Power Supply 2-in-1, Selectable via Jumper
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPP-1700-12 1428W 12V Battery Charge& Power Supply 2-...
NPP-1700's key features include ultra-wide output voltage, adjustable output voltage via VR on front panel (10.5~21V, 21~42V, 42~80V), adjust output current from 50~100%, built-in thermal controlled cooling fan to reduce noise, -30~+70°C operating temperature, built-in remote ON/OFF control, compliance to ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety, multiple built-in intelligent protection functions, and 3 years warranty.
FEATURES
-
BrandMean Well
-
SeriesNPP Series
-
Power Rating1700 Watt
-
Output Voltage14.4 Volt
-
Rated Current85 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length11.81 in
-
Width7.24 in
-
Height2.76 in
-
Weight6.53 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPP-1700-12 designed for?
The NPP-1700-12 is a 2-in-1 unit that can operate as either a battery charger or a power supply, depending on the selected mode. It is built for high-power 12V applications that need up to 1428W output in a single desktop-style unit.
Can the NPP-1700-12 be used with different battery types?
Yes. Mean Well specifies this model as suitable for lead-acid and lithium-ion batteries. It also includes a 3-stage charging curve when used in charging mode.
What are the main output ratings of the NPP-1700-12?
This model is rated at 1428W with a nominal output voltage of 14.4V and a rated current of 85A. It is part of the NPP-1700 series, which provides high-output performance for demanding DC power and charging applications.
Is the output adjustable on the NPP-1700-12?
Yes. The product description states that both output voltage and output current are adjustable via front-panel controls. Output current can be adjusted from 50% to 100%, and the NPP-1700 series supports ultra-wide output voltage adjustment ranges depending on the model setting.
What protection features are built into the NPP-1700-12?
The NPP-1700-12 includes multiple built-in protections for short circuit, overload, over voltage, and over temperature. These protections help support reliability in industrial and commercial power applications.
Is the NPP-1700-12 suitable for demanding temperature environments?
Yes. Mean Well rates this model for operation from -30°C to +70°C, which makes it suitable for a wide range of challenging environments. It also uses a thermal-controlled DC fan to help reduce noise while managing cooling.
How does the NPP-1700-12 differ from a standard fixed-function power supply?
Unlike a standard single-purpose power supply, the NPP-1700-12 can serve as either a battery charger or a power supply in one unit. It also adds adjustable voltage and current, support for lead-acid and lithium-ion batteries, and a built-in 3-stage charging function.
What safety approvals and warranty does the NPP-1700-12 include?
This model is listed with CB, UL, DEKRA, EAC, CE, and UKCA safety approvals, including IEC/EN/UL62368-1 and EN60335-1/-2-29 coverage. Mean Well also backs the NPP-1700-12 with a 3-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPP-1700 Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPP-1700-48 1680W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper | 1700 Watt | Lithium and Lead Acid Battery | — | — | $319.75 | View |
| Mean Well NPP-1700-24 1680W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper | 1700 Watt | Lithium and Lead Acid Battery | — | — | $319.75 | View |
