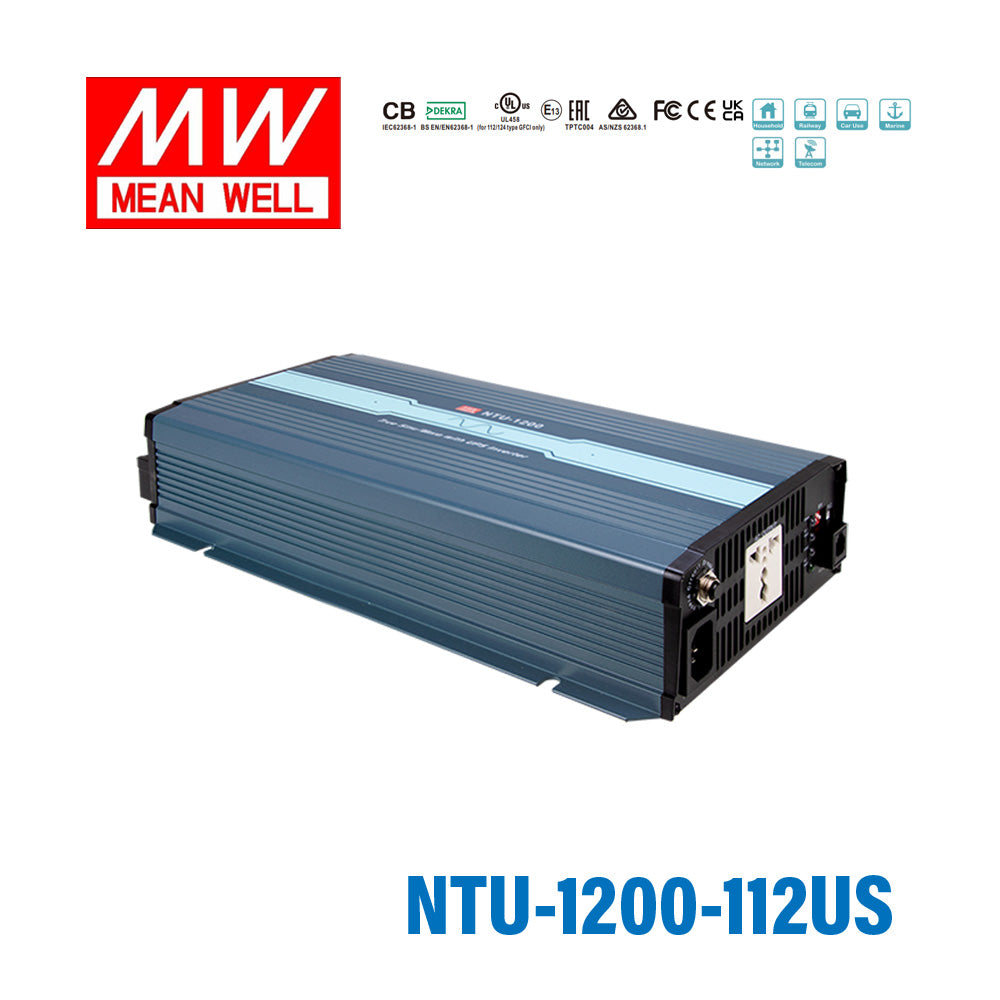

Mean Well NTU-1200-112US True Sine Wave DC-AC Inverter 1200W 110V out 12V in with US Socket
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-1200-112US True Sine Wave DC-AC Inverter 1200W 110V o...
The NTU-1200 is a 1200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating1200 Watt
-
Output Voltage110 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length13.11 in
-
Width7.24 in
-
Height2.76 in
-
Weight7.28 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTU-1200-112US designed for?
The NTU-1200-112US is a 1200W true sine wave DC-AC inverter for converting 12V DC input into AC output through a US socket. It is suited to applications that need utility-like AC power quality from a DC battery source. This model is part of Mean Well's NTU series and includes a built-in UPS bypass function.
Does this inverter provide true sine wave output?
Yes. The NTU-1200-112US provides true sine wave output with total harmonic distortion below 3%, which helps support equipment that is sensitive to output waveform quality. That makes it a better fit than modified sine wave units for many professional and electronics-focused applications.
What input and output ratings does this model support?
This model is rated for 1200W output and uses a 12V DC input. Its AC output is selectable by DIP switch across 100/110/115/120VAC and 200/220/230/240VAC ranges, with output voltage and frequency both selectable on the unit. The product name variant is configured with a US socket and 110V output designation.
Can the NTU-1200-112US work with different battery types?
Yes. Mean Well specifies this inverter as suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection with low-voltage disconnect to help protect the connected battery system.
What protection and surge capability does this inverter have?
The NTU-1200-112US includes protection for short circuit, overload, and over voltage conditions. It also supports surge power up to 2000W for higher startup demand loads. Overload behavior is specified as 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.
Is this inverter suitable for demanding industrial or commercial environments?
It is designed for a wide operating temperature range of -25°C to +70°C, subject to the stated derating curve. The unit uses a temperature-controlled cooling fan and conformal coating for added durability. Mean Well also lists IEC62368-1 approval and EMC compliance including EN55032 Class A.
Are remote control and communication features available on this model?
Yes. The NTU-1200-112US supports power on/off remote control and RS-232 communication for monitoring or integration needs. Mean Well lists the remote controllers and the RS-232 communication cable as separate accessories rather than included standard items.
